REAR NO. 1 SEAT ASSEMBLY(for Power Captain Seat with Memory) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedures listed below are for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH

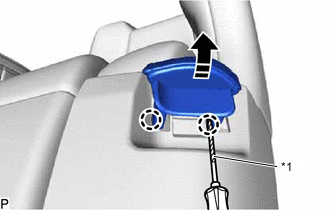

    1. B006N41C01
      *1 Protective Tape
      B006N8A Remove in this Direction

      Make sure the handle is pulled up, and then using a screwdriver, detach the claw and remove the No. 1 reclining adjuster release handle LH.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE REAR POWER SEAT SWITCH LH

    Click here

  3. REMOVE REAR NO. 1 SEAT RECLINING COVER LH

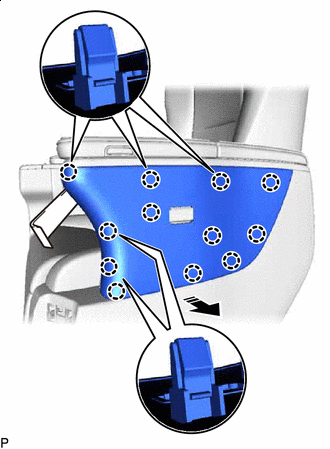

    1. B006LK0C01
      B006N8A Remove in this Direction

      Using moulding remover D, detach the claw.

    2. B006LMK

      Detach the clamp, disconnect the wire harness and remove the rear No. 1 seat reclining cover LH.

  4. REMOVE REAR NO. 1 SEAT ARMREST ASSEMBLY LH


    1. B006OUU

      Detach the clamp and disconnect the connector and wire harness.

    2. Remove the 4 bolts.

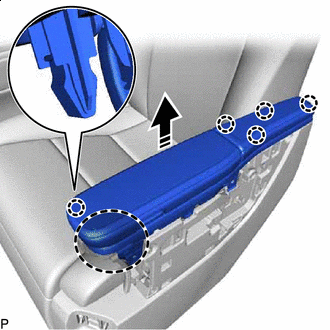

    3. B006KWCC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and remove the rear No. 1 seat armrest assembly LH.

  5. REMOVE REAR POWER SEAT SWITCH LH

    Click here

  6. REMOVE REAR SEAT CUSHION


    1. B006P2P

      Remove the screw and rear seat cushion.

  7. REMOVE SEAT ADJUSTER COVER CAP LH

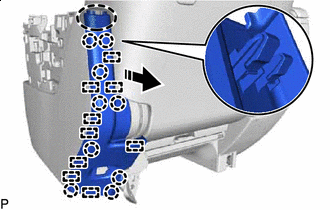

    1. B006R3ZC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide and remove the seat adjuster cover cap LH.

  8. REMOVE REAR SEAT RECLINING COVER LH

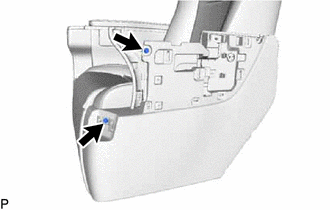

    1. B006KPL

      Remove the 2 bolts.

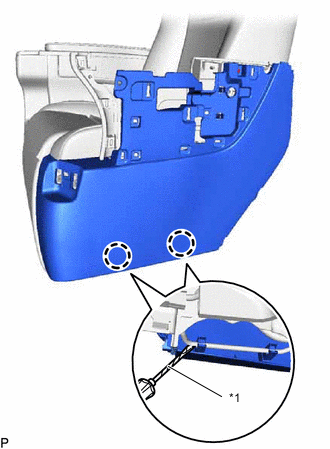

    2. B006PHKC01
      *1 Protective Tape

      Using a screwdriver, detach the claw.

      Tech Tips

      Tape the screwdriver tip before use.

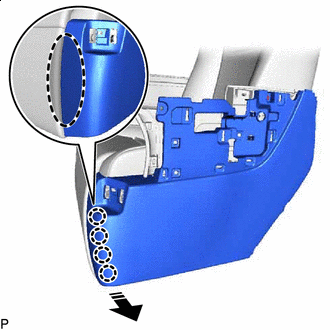

    3. B006OSSC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw.

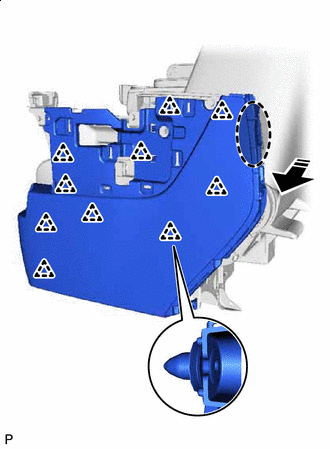

    4. B006OKBC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the clip and remove the rear seat reclining cover LH.

  9. REMOVE REAR SEAT ARMREST FRAME SUB-ASSEMBLY LH


    1. B006RF2

      Detach the clamp and disconnect the wire harness.

    2. B006LMQ

      Remove the 2 bolts, 2 nuts and rear seat armrest frame sub-assembly LH together with the rear No. 1 seat inside reclining adjuster cover.

  10. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006MK9

      Remove the 2 bolts and screw.

    2. B006OWO

      Detach the clip and guide and remove the rear No. 1 seat inside reclining adjuster cover from the rear seat armrest frame sub-assembly LH.

  11. REMOVE RECLINING ADJUSTER COVER RH

    Note

    Do not reuse the reclining adjuster cover RH after removing it.

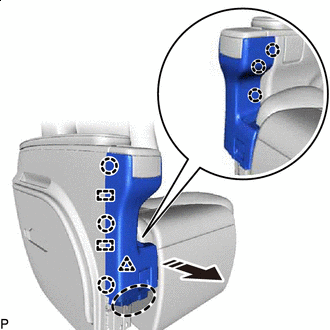

    1. B006KZQC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip.

    2. Pull as shown in the illustration to detach the claw and guide.

    3. B006MRM

      Disconnect the connector and remove the reclining adjuster cover RH.

  12. REMOVE SEAT LEG GARNISH COVER


    1. B006L0F

      Detach the claw and remove the seat leg garnish cover.

  13. REMOVE SEAT ADJUSTER COVER CAP RH

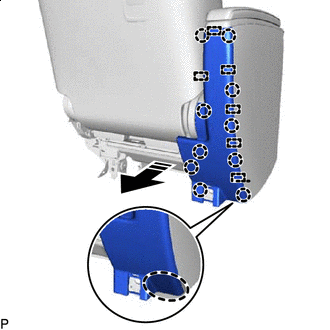

    1. B006R0RC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide and remove the seat adjuster cover cap RH.

  14. REMOVE REAR SEAT CUSHION MOULDING LH

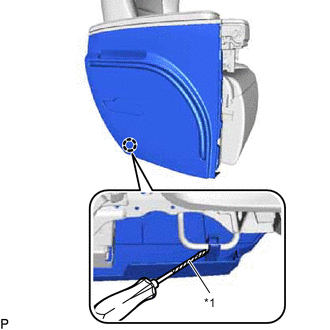

    1. B006MJ8C01
      *1 Protective Tape

      Using a screwdriver, detach the claw.

      Tech Tips

      Tape the screwdriver tip before use.

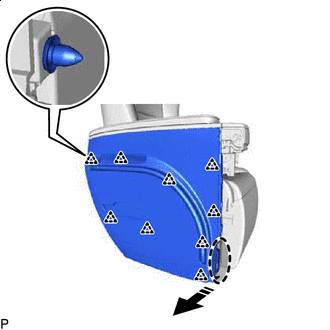

    2. B006R9MC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the clip.

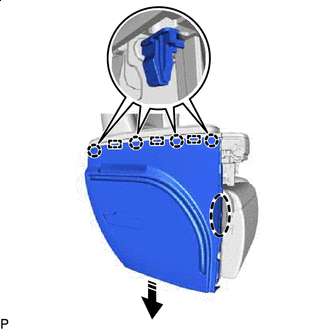

    3. B006M00C01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide and remove the rear seat cushion moulding LH.

  15. REMOVE REAR NO. 1 SEAT ARMREST ASSEMBLY RH


    1. B006OYR

      Remove the 7 bolts.

    2. Pull as shown in the illustration to detach the claw and clip and remove the rear No. 1 seat armrest assembly RH.

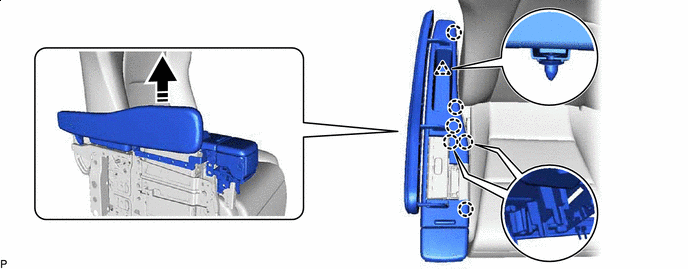

      B006NCXC01
      B006N8A Remove in this Direction - -

  16. REMOVE NO. 1 CUP HOLDER ASSEMBLY


    1. B006LBY

      Remove the 2 screws.

    2. Detach the claw and remove the No. 1 cup holder assembly.

  17. REMOVE REAR NO. 1 SEAT LEG BRACKET


    1. B006P97

      Remove the bolt and 2 nuts, and rear No. 1 seat leg bracket.

  18. REMOVE REAR SEAT TURN TABLE ASSEMBLY LH

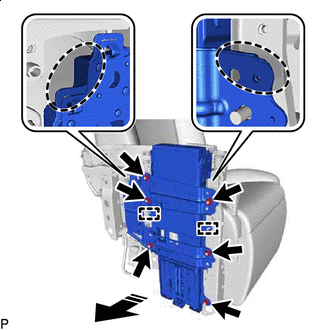

    1. B006QU1C01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Remove the 6 nuts.

    2. Pull as shown in the illustration to detach the guide and remove the rear seat turn table assembly LH.

      CAUTION:

      Do not place your hands in the openings in the sliding parts as this may result in injury.

      B006RFTC01
      B006REL Opening in Sliding Parts - -

  19. REMOVE REAR SEAT ARMREST FRAME SUB-ASSEMBLY RH


    1. B006M3E

      Remove the 2 bolts.

    2. B006RI3

      Remove the 7 bolts.

    3. B006N3F

      Detach the clip and guide and remove the rear seat armrest frame sub-assembly RH.

  20. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

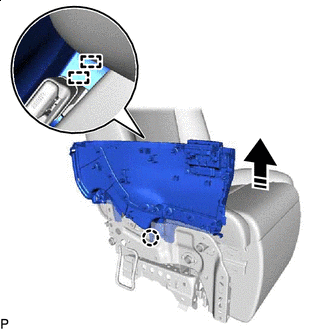

    1. B006PLKC01
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide and remove the rear No. 1 seat inside reclining adjuster cover.

  21. REMOVE REAR NO. 3 POWER SEAT SWITCH

    Click here

  22. DISCONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

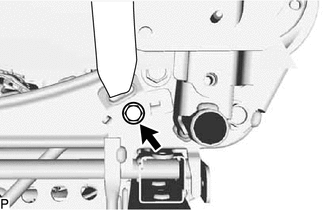

    1. B006L69

      Remove the bolt and disconnect the floor anchor of the No. 1 seat 3 point type belt assembly LH.

  23. REMOVE REAR SEAT SHOULDER BELT COVER LH

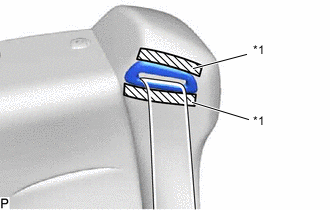

    1. B006MQTC01
      *1 Protective Tape

      Apply protective tape as shown in the illustration.

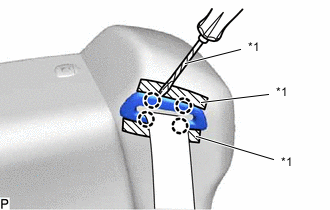

    2. B006L3RC01
      *1 Protective Tape

      Using a screwdriver, detach the claw.

      Tech Tips

      Tape the screwdriver tip before use.

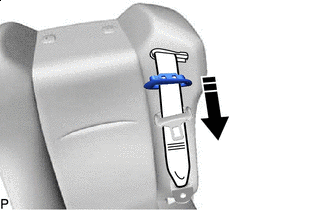

    3. B006MIQC01
      B006N8A Remove in this Direction

      Remove the rear seat shoulder belt cover LH from the No. 1 seat 3 point type belt assembly LH as shown in the illustration.

  24. REMOVE SEAT STAND FRAME CAP

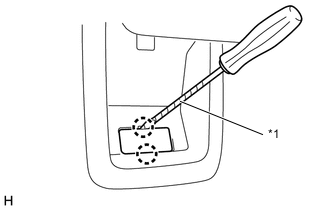

    1. B006M45C01
      *1 Protective Tape

      Using a screwdriver, detach the claw and remove the seat stand frame cap.

      Tech Tips

      Tape the screwdriver tip before use.

  25. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY


    1. B006O1V

      Remove the 2 screws.

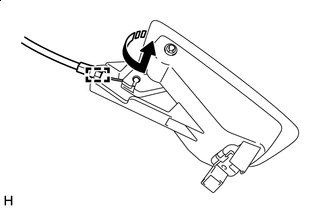

    2. B006PS3C01
      B006N8A Remove in this Direction

      Detach the cable clamp.

    3. While turning the part as shown in the illustration, disconnect the seat track control cable assembly and remove the rear seat lock control lever sub-assembly.

  26. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

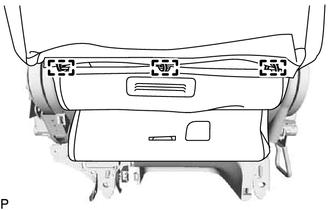

    1. B006OYQ

      Remove the 3 hog rings.

    2. Pull out the 2 fasteners.

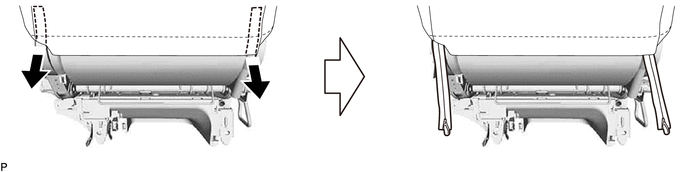

      B006KJL

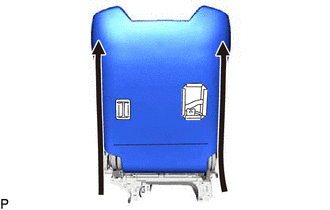

    3. B006O6Y

      Open the 2 fasteners.

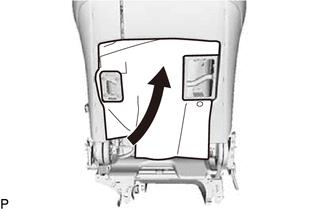

    4. B006LBD

      Fold up the rear No. 2 seatback protector.

    5. B006QU8

      Detach the claw and disconnect the rear No. 2 seatback climate control duct.

    6. B006RJL

      Disconnect the connector of the seat heater assembly.

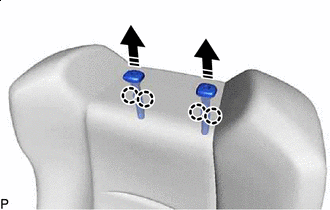

    7. B006POUC01
      B006N8A Remove in this Direction

      Detach the claw and remove the 2 rear seat headrest supports.

    8. B006MQF

      Detach the hook.

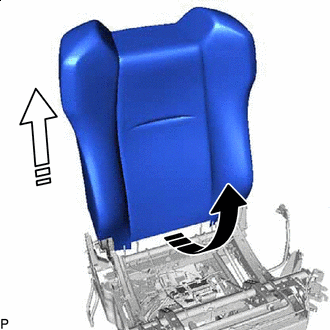

    9. B006MEKC01
      B006N8A Remove in this Direction (1)
      B006NJK Remove in this Direction (2)

      Pull out the rear end of the separate type rear seatback cover with pad in the direction (1) shown in the illustration.

    10. Lift up in the direction (2) shown in the illustration to remove the separate type rear seatback cover with pad.

  27. REMOVE SEPARATE TYPE REAR SEATBACK COVER

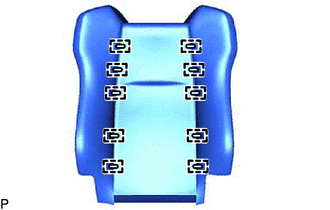

    1. B006RAU

      Remove the 10 hog rings.

    2. B006L66C01
      B006N8A Remove in this Direction

      Slide the seat cover wire until it reaches a position where the hog rings in the center can be removed.

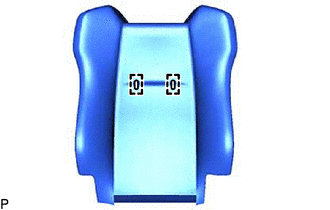

    3. B006PW7

      Remove the 2 hog rings and separate type rear seatback cover from the separate type rear seatback pad.

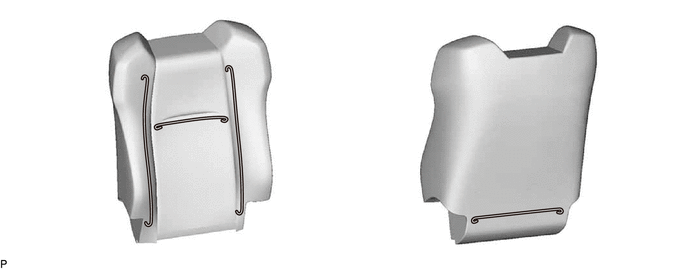

  28. REMOVE SEAT COVER WIRE


    1. Remove the seat cover wire.

      B006O0L

  29. REMOVE SEAT HEATER ASSEMBLY

    Click here

  30. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    Click here

  31. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

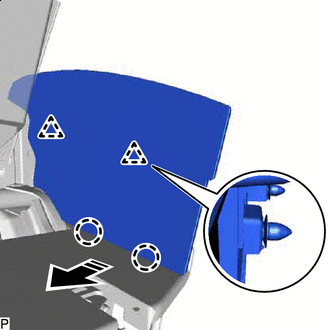

    1. B006NCQC01
      B006N8A Remove in this Direction

      Detach the clip and claw and remove the rear No. 1 seat inside reclining adjuster cover.

  32. REMOVE REAR SEAT LEG SIDE COVER LH

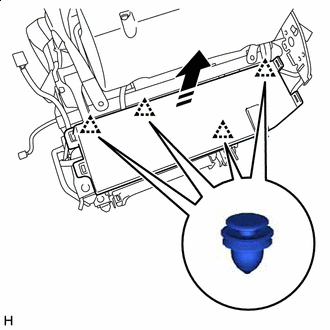

    1. B006LPIC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip and remove the rear seat leg side cover LH.

  33. REMOVE REAR SEAT LEG COVER LH

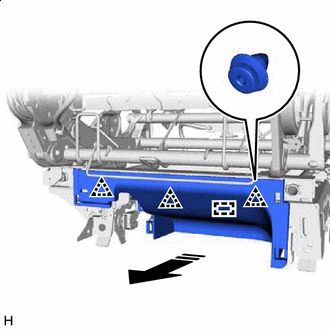

    1. B006OTCC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip and guide and remove the rear seat leg cover LH.

  34. REMOVE REAR SEAT LEGREST COVER


    1. B006KI5

      Remove the 2 screws and rear seat legrest cover.

  35. REMOVE REAR SEAT FOOTREST COVER SUB-ASSEMBLY RH

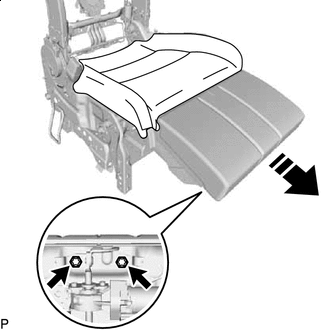

    1. B006QWJC01
      B006N8A Remove in this Direction

      Remove the 2 bolts and footrest assembly.

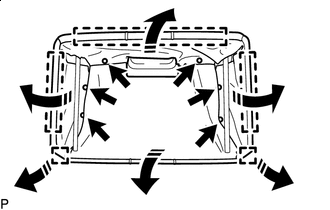

    2. B006LVHC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the 6 clips.

    3. Detach the hook and remove the rear seat footrest cover sub-assembly RH.

  36. REMOVE REAR SEAT FOOTREST PANEL

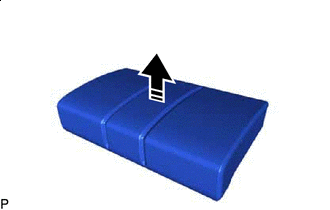

    1. B006MHFC01
      B006N8A Remove in this Direction

      Remove the rear seat footrest panel from the rear seat footrest frame.

  37. REMOVE REAR NO. 1 SEAT FOOTREST COVER

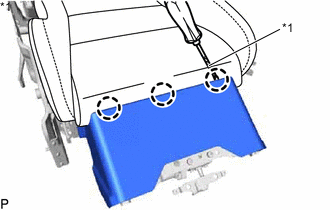

    1. B006NNLC01
      *1 Protective Tape

      Using a screwdriver, detach the claw and disconnect the separate type rear seat cushion cover.

      Tech Tips

      Tape the screwdriver tip before use.

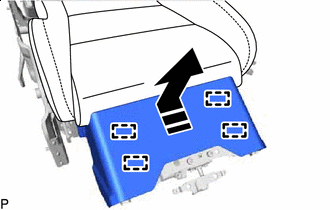

    2. B006QC8C01
      B006N8A Remove in this Direction

      Detach the guide and remove the rear No. 1 seat footrest cover.

  38. REMOVE SEAT TRACK LOCK OPEN LEVER SUB-ASSEMBLY LH


    1. B006RAB

      Disconnect the connector.

    2. Remove the 2 nuts and seat track lock open lever sub-assembly LH.

  39. REMOVE POSITION CONTROL ECU ASSEMBLY


    1. B006KTJ

      Disconnect the 3 connectors.

    2. Remove the 2 nuts and position control ECU assembly.

  40. REMOVE REAR SEAT CLIMATE CONTROL ECU LH


    1. B006KPT

      Disconnect the connector.

    2. Remove the 2 nuts and rear seat climate control ECU LH.

  41. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD


    1. B006LQY

      Disconnect the 2 connectors.

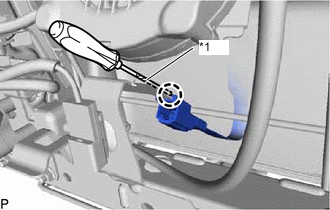

    2. B006PC8C01
      *1 Protective Tape

      Using a screwdriver, detach the claw and disconnect the occupant detection sensor connector of the occupant detection sensor.

      Tech Tips

      Tape the screwdriver tip before use.

    3. Detach the hook.

      B006PZW

    4. Detach the claw and disconnect the seat cushion climate control duct.

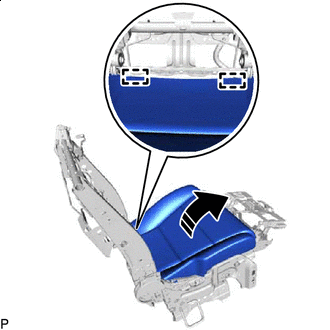

    5. B006PGQC01
      B006N8A Remove in this Direction

      Rotate the separate type rear seat cushion cover with pad as shown in the illustration and detach the guide.

    6. B006KNE

      Detach the hook and remove the separate type rear seat cushion cover with pad.

  42. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER


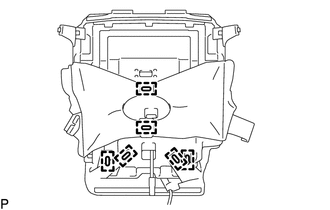

    1. B006OAC

      Remove the 6 hog rings.

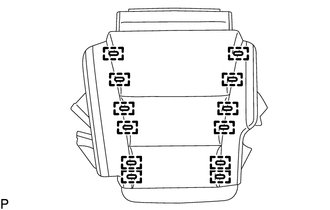

    2. B006QPJ

      Remove the 12 hog rings.

    3. B006R96C01
      B006N8A Remove in this Direction

      Slide the seat cover wire until it reaches a position where the hog rings in the center can be removed.

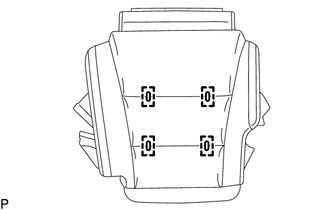

    4. B006LRO

      Remove the 4 hog rings to remove the separate type rear seat cushion cover from the separate type rear seat cushion pad.

  43. REMOVE SEAT COVER WIRE

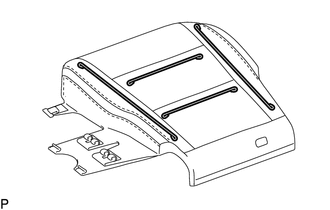

    1. B006Q6B

      Remove the seat cover wire.

  44. REMOVE SEAT HEATER ASSEMBLY

    Click here

  45. REMOVE REAR LOWER INNER RECLINING ADJUSTER ARM SUB-ASSEMBLY LH


    1. B006OBW

      Disconnect the connector.

    2. Detach the wire harness clamp.

    3. Remove the 4 bolts and rear lower inner reclining adjuster arm sub-assembly LH.

  46. REMOVE REAR SEAT HEADREST SUPPORT

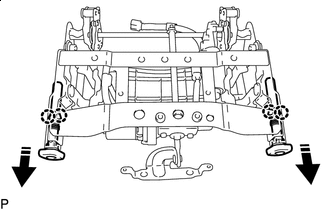

    1. B006OWAC01
      B006N8A Remove in this Direction

      Detach the claw and remove the 2 rear seat headrest supports.

  47. REMOVE REAR SEAT LEGREST COVER


    1. B006R7H

      Remove the 4 screws and rear seat legrest cover.

  48. REMOVE NO. 3 FRAME WIRE


    1. B006PTK

      Disconnect the 2 connectors.

    2. Detach the wire harness clamp and remove the No. 3 frame wire.

  49. REMOVE REAR NO. 2 SEAT PROTECTOR

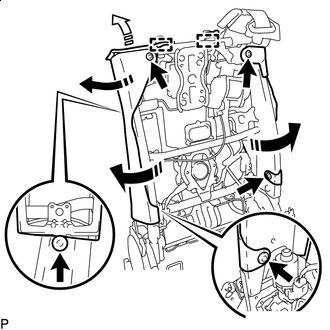

    1. B006LIUC01
      B006N8A Remove in this Direction (1)
      B006NJK Remove in this Direction (2)

      Using a clip remover, detach the 5 clips.

    2. Remove the guide.

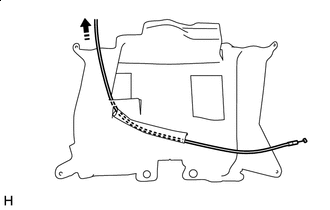

    3. B006OJBC01
      B006N8A Remove in this Direction

      Pull out the seat track control cable assembly and remove the rear No. 2 seat protector.

  50. REMOVE REAR SEAT SHOULDER BELT COVER LH


    1. B006R9R

      Detach the claw and remove the rear seat shoulder belt cover LH.

  51. REMOVE REAR SEAT INNER RECLINING COVER LH


    1. B006LKS

      Remove the 2 screws and rear seat inner reclining cover LH.

  52. REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Click here

  53. REMOVE REAR SEAT SHOULDER BELT COVER LH

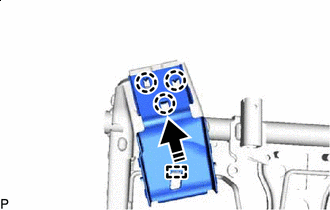

    1. B006PD1C01
      B006N8A Remove in this Direction

      Detach the claw.

    2. Pull as shown in the illustration to detach the guide and remove the rear seat shoulder belt cover LH.

  54. REMOVE POWER SEAT SWITCH BEZEL


    1. B006MZD

      Remove the 2 screws and power seat switch bezel.

  55. REMOVE REAR NO. 2 SEATBACK CLIMATE CONTROL DUCT

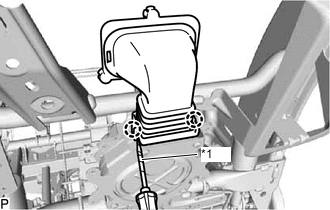

    1. B006KVWC01
      *1 Protective Tape

      Using a screwdriver, detach the claw and remove the rear No. 2 seatback climate control duct.

      Tech Tips

      Tape the screwdriver tip before use.

  56. REMOVE REAR NO. 1 SEATBACK CLIMATE CONTROL DUCT


    1. B006Q0D

      Remove the 4 screws and rear No. 1 seatback climate control duct.

  57. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER LH


    1. B006R2W

      Disconnect the connector.

    2. Remove the 4 screws and rear seatback climate control blower LH.

  58. REMOVE REAR SEATBACK SPRING DAMPER


    1. B006PXY

      Remove the 2 nuts and rear seatback spring damper.

  59. REMOVE REAR SEATBACK SPRING DAMPER RH


    1. B006L7U

      Remove the 2 nuts and rear seatback spring damper RH.

  60. REMOVE NO. 2 SEAT WIRE


    1. B006R6VC01
      *1 Wire harness clamp
      *2 Connector clamp

      Disconnect the 3 connectors.

    2. Detach the wire harness clamp and connector clamp and remove the No. 2 seat wire.

  61. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006MY6

      Using a clip remover, detach the 2 clips and remove the rear No. 1 seat inside reclining adjuster cover.

  62. REMOVE NO. 1 SEATBACK FRAME SUB-ASSEMBLY LH


    1. B006MFE

      Detach the wire harness clamp.

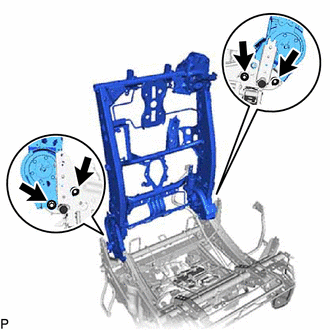

    2. B006PXJ

      Remove the 4 bolts and No. 1 seatback frame sub-assembly LH.

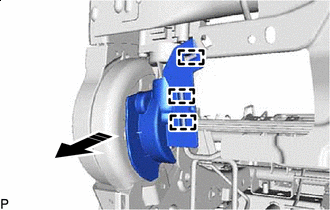

  63. REMOVE INSIDE RECLINING ADJUSTER COVER LH


    1. B006R3JC01
      B006N8A Remove in this Direction

      Detach the clamp and remove the inside reclining adjuster cover LH.

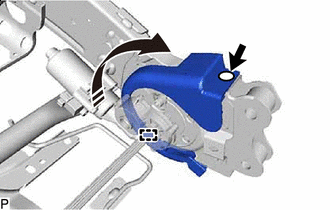

  64. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006QLTC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip.

    2. Detach the guide and remove the rear No. 1 seat inside reclining adjuster cover.

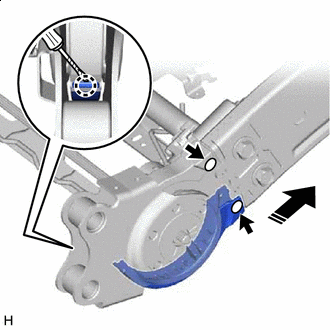

  65. REMOVE RECLINING COVER PROTECTOR RH


    1. B006R0MC01
      *1 Protective Tape
      B006N8A Remove in this Direction

      Using a clip remover, detach the 2 clips.

    2. Using a screwdriver, detach the claw and remove the reclining cover protector RH.

      Tech Tips

      Tape the screwdriver tip before use.

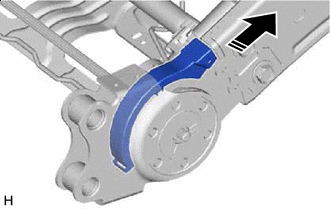

  66. REMOVE RECLINING COVER PROTECTOR RH


    1. B006O0EC01
      B006N8A Remove in this Direction

      Remove the reclining cover protector RH.

  67. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006MK2

      Remove the screw.

    2. B006PEWC01
      *1 Protective Tape

      Apply protective tape as shown in the illustration.

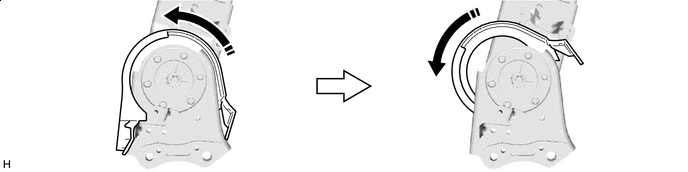

    3. While turning the rear No. 1 seat inside reclining adjuster cover as shown in the illustration, remove it.

      B006MNRC01
      B006N8A Remove in this Direction - -

  68. REMOVE SEAT CLIMATE CONTROL BLOWER LH


    1. B006NVQ

      Disconnect the connector.

    2. Remove the 2 screws.

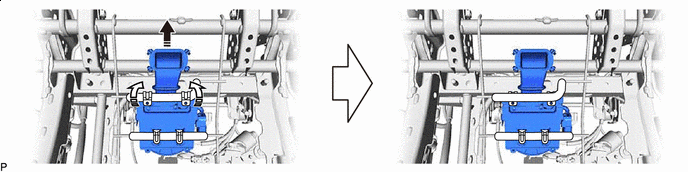

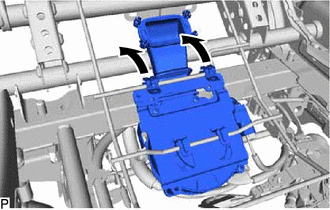

    3. B006PT8

      Raise the clamp in the direction indicated by the arrow shown in the illustration.

    4. Pull up the rear seat climate control blower LH in removal direction (1) shown in the illustration.

      B006OYIC01
      B006N8A Remove in this Direction (1) B006NJK Remove in this Direction (2)

    5. Push down in removal direction (2) shown in the illustration to detach the hook.

    6. Rotate the rear seat climate control blower LH in removal direction (1) shown in the illustration.

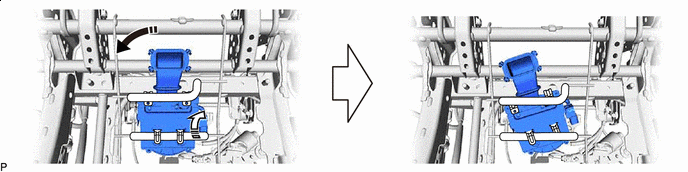

      B006MPBC01
      B006N8A Remove in this Direction (1) B006NJK Remove in this Direction (2)

    7. Push down in removal direction (2) shown in the illustration to detach the hook.

    8. Rotate the rear seat climate control blower LH in removal direction (1) shown in the illustration.

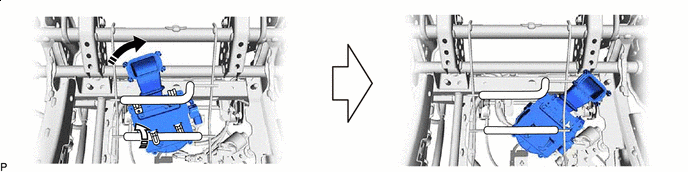

      B006NGVC01
      B006N8A Remove in this Direction (1) B006NJK Remove in this Direction (2)

    9. Push down in removal direction (2) shown in the illustration to detach the hook and remove the rear seat climate control blower LH.

  69. REMOVE SEAT CUSHION CLIMATE CONTROL DUCT

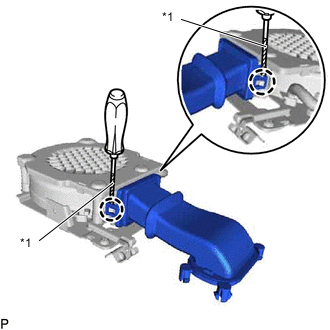

    1. B006N13C01
      *1 Protective Tape

      Using a screwdriver, detach the claw and remove the seat cushion climate control duct.

      Tech Tips

      Tape the screwdriver tip before use.

  70. REMOVE SEATBACK FELT


    1. B006P3Q

      Remove the 2 pieces of seatback felt.

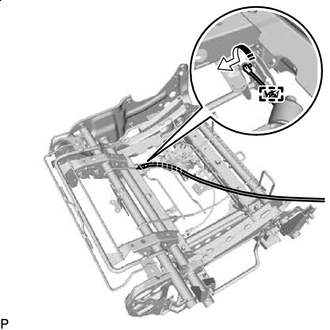

  71. REMOVE SEAT TRACK CONTROL CABLE ASSEMBLY


    1. B006RJ0C01
      B006N8A Remove in this Direction

      Detach the cable clamp.

    2. While turning the cable end as shown in the illustration, disconnect it and remove the seat track control cable assembly.

  72. REMOVE REAR SEAT WIRE LH


    1. B006R61

      Disconnect the 2 connectors.

    2. Detach the claw and wire harness clamp and remove the rear seat wire LH.

  73. REMOVE POWER SEAT MOTOR ASSEMBLY

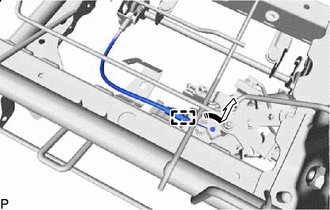

    1. B006QKZC01
      B006N8A Remove in this Direction

      Detach the cable clamp.

    2. While turning the cable end as shown in the illustration, disconnect it.

    3. B006MQO

      Remove the 3 nuts and power seat motor assembly.

  74. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH


    1. B006PZR

      Remove the 6 nuts and rear seat cushion frame sub-assembly LH from the No. 1 seat leg sub-assembly LH.
