SEAT RAIL COMPONENTS
ILLUSTRATION
| *1 | BACK DOOR SCUFF PLATE | *2 | REAR NO. 1 FLOOR BOARD ASSEMBLY |
| *3 | REAR NO. 2 FLOOR BOARD ASSEMBLY | *4 | REAR NO. 3 FLOOR BOARD ASSEMBLY |
| *5 | REAR SEAT TRACK SLIDE STOPPER | *6 | REAR UPPER NO. 1 FLOOR BOARD PLATE |
| *7 | REAR UPPER NO. 2 FLOOR BOARD PLATE | *8 | UTILITY BOX SUB-ASSEMBLY |
ILLUSTRATION
| *1 | DECK SIDE GARNISH LH | *2 | NO. 2 LUGGAGE COMPARTMENT TRIM HOOK |
| *3 | REAR DOOR SCUFF PLATE LH | *4 | REAR QUARTER TRIM PANEL ASSEMBLY LH |
| *5 | REAR SEAT STOPPER | *6 | ROPE HOOK ASSEMBLY |
| *7 | NO. 1 SLIDE DOOR WEATHER STRIP LH | - | - |
ILLUSTRATION
| *1 | DECK SIDE GARNISH RH | *2 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *3 | REAR DOOR SCUFF PLATE RH | *4 | REAR QUARTER TRIM PANEL ASSEMBLY RH |
| *5 | REAR SEAT STOPPER | *6 | ROPE HOOK ASSEMBLY |
| *7 | NO. 1 SLIDE DOOR WEATHER STRIP RH | - | - |
ILLUSTRATION
| *1 | PARKING BRAKE ECU ASSEMBLY | *2 | REAR NO. 2 SEAT TRACK ASSEMBLY LH |
| *3 | REAR NO. 2 SEAT TRACK ASSEMBLY RH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | DECK RAIL COVER | *2 | NO. 1 DECK RAIL COVER |
| *3 | NO. 2 DECK RAIL COVER | *4 | REAR SEAT LOCK STRIKER COVER |
| *5 | REAR UPPER NO. 3 FLOOR BOARD PLATE | - | - |

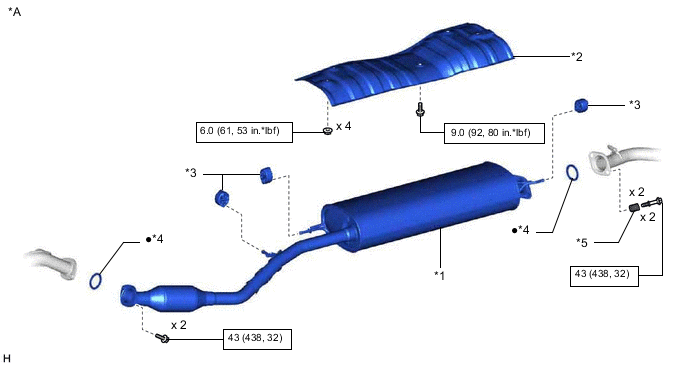

ILLUSTRATION
| *A | for 2AR-FE | - | - |
| *1 | CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | CENTER NO. 2 FLOOR HEAT INSULATOR SUB-ASSEMBLY |
| *3 | EXHAUST PIPE SUPPORT | *4 | EXHAUST PIPE GASKET |
| *5 | COMPRESSION SPRING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

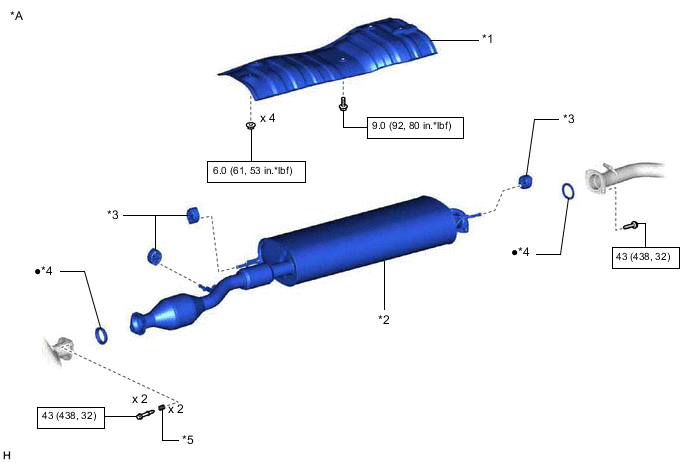

ILLUSTRATION
| *A | for 2GR-FKS | - | - |
| *1 | CENTER NO. 2 FLOOR HEAT INSULATOR SUB-ASSEMBLY | *2 | EXHAUST FORKED PIPE SUB-ASSEMBLY (TWC: Rear Catalyst) |
| *3 | EXHAUST PIPE SUPPORT | *4 | EXHAUST PIPE GASKET |
| *5 | COMPRESSION SPRING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

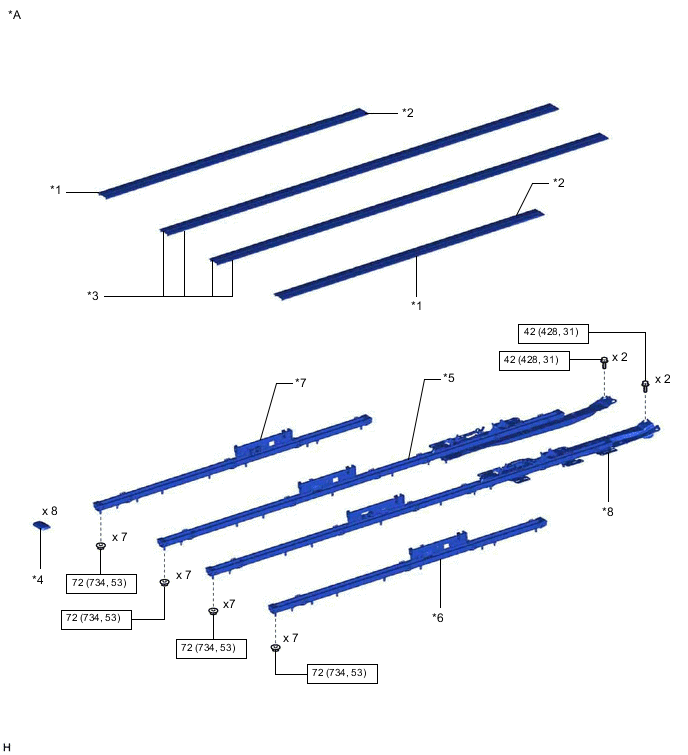

ILLUSTRATION
| *A | for Manual Captain Seat | - | - |
| *1 | LOWER NO. 1 SEAT TRACK RAIL PROTECTOR | *2 | LOWER NO. 2 SEAT TRACK RAIL PROTECTOR |
| *3 | LOWER SEAT TRACK RAIL PROTECTOR | *4 | NO. 3 FLOOR CARPET MOULDING |
| *5 | REAR NO. 1 SEAT TRACK ASSEMBLY RH | *6 | REAR OUTER SEAT TRACK ASSEMBLY LH |
| *7 | REAR OUTER SEAT TRACK ASSEMBLY RH | *8 | REAR SEAT TRACK ASSEMBLY LH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

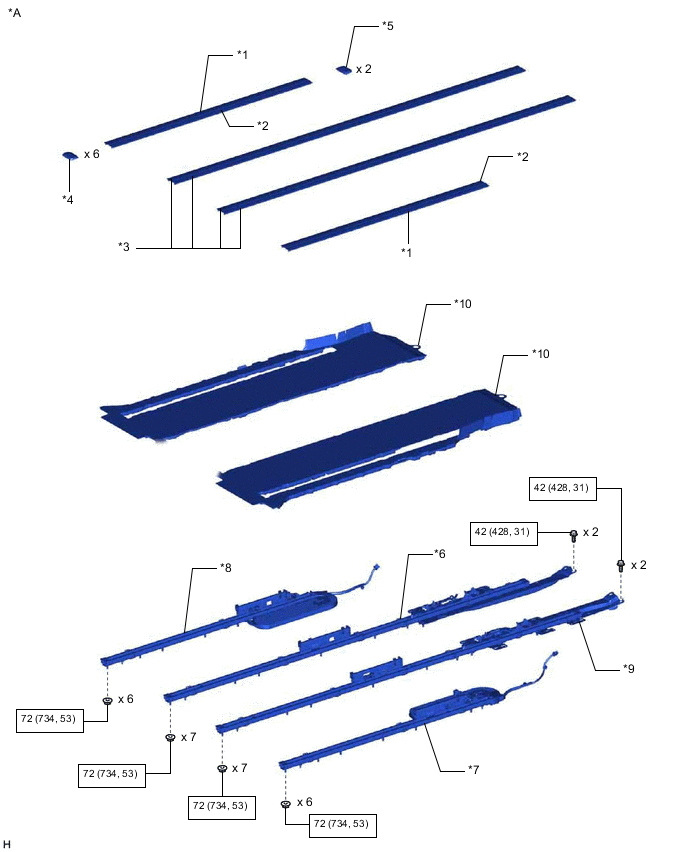

ILLUSTRATION
| *A | for Power Captain Seat | - | - |
| *1 | LOWER NO. 1 SEAT TRACK RAIL PROTECTOR | *2 | LOWER NO. 2 SEAT TRACK RAIL PROTECTOR |
| *3 | LOWER SEAT TRACK RAIL PROTECTOR | *4 | NO. 3 FLOOR CARPET MOULDING |
| *5 | NO. 4 FLOOR CARPET MOULDING | *6 | REAR NO. 1 SEAT TRACK ASSEMBLY RH |
| *7 | REAR OUTER SEAT TRACK ASSEMBLY LH | *8 | REAR OUTER SEAT TRACK ASSEMBLY RH |
| *9 | REAR SEAT TRACK ASSEMBLY LH | *10 | FLOOR MAT SET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
