REAR SEAT CUSHION HEATER(for Power Captain Seat without Memory) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:


  • B006LWS

    Wear protective gloves. Sharp areas on the parts may injure your hands.

  • This may result in injury.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedures listed below are for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL SEAT HEATER ASSEMBLY


    1. Using a tacker, install the seat heater assembly with 17 new tack pins as shown in the illustration.

      Tech Tips


      • Secure the seat heater assembly so that it does not bend or stretch.

      • Set the seat heater assembly so that the nichrome wire is on the separate type rear seat cushion cover side.

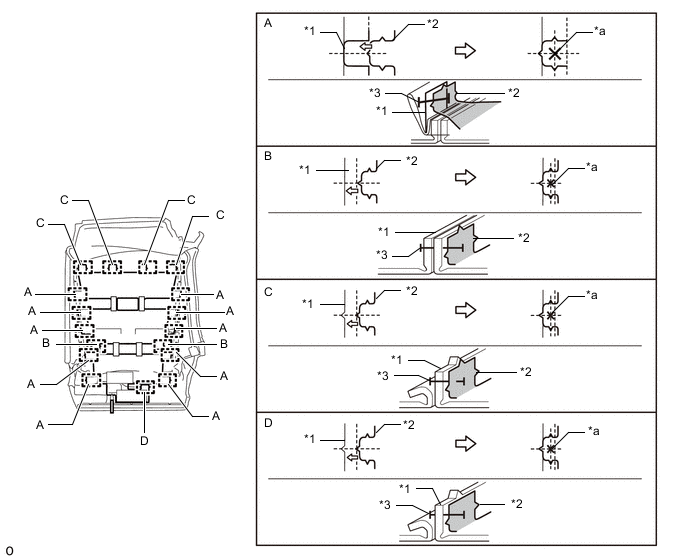

      B006LUDC01
      *1 Separate Type Rear Seat Cushion Cover *2 Seat Heater Assembly
      *3 Tack Pin - -
      *a Tack Pin Fastening Position - -

  2. INSTALL SEAT COVER WIRE

    Click here

  3. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER

    Click here

  4. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Click here

  5. INSTALL REAR SEAT LEG COVER LH

    Click here

  6. INSTALL REAR SEAT LEG SIDE COVER LH

    Click here

  7. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

    Click here

  8. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    Click here

  9. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Click here

  10. INSTALL REAR SEAT INNER TRACK COVER SUB-ASSEMBLY LH

    Click here

  11. INSTALL SEAT STAND FRAME CAP

    Click here

  12. INSTALL REAR SEAT SHOULDER BELT COVER LH

    Click here

  13. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

    Click here

  14. INSTALL REAR SEAT ARMREST FRAME SUB-ASSEMBLY RH

    Click here

  15. INSTALL NO. 1 CUP HOLDER ASSEMBLY

    Click here

  16. INSTALL REAR SEAT CUSHION MOULDING LH

    Click here

  17. INSTALL SEAT ADJUSTER COVER CAP RH

    Click here

  18. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY RH

    Click here

  19. INSTALL REAR POWER SEAT SWITCH LH

    Click here

  20. INSTALL REAR NO. 2 SEAT COVER BEZEL

    Click here

  21. INSTALL REAR SEAT SIDE TABLE ASSEMBLY (for RH Side)

    Click here

  22. INSTALL REAR SEAT ARMREST FRAME SUB-ASSEMBLY LH

    Click here

  23. INSTALL NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR)

    Click here

  24. INSTALL REAR SEAT RECLINING COVER LH

    Click here

  25. INSTALL SEAT ADJUSTER COVER CAP LH

    Click here

  26. INSTALL REAR SEAT CUSHION

    Click here

  27. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH

    Click here

  28. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH

    Click here

  29. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Click here
