FRONT SEAT CUSHION HEATER(for Front Passenger Seat) COMPONENTS
ILLUSTRATION
| *1 | FRONT SEAT CUSHION SHIELD RH | *2 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *3 | FRONT SEAT INNER CUSHION SHIELD RH | *4 | FRONT SEAT LEG ASSEMBLY RH |
| *5 | FRONT SEAT LEG COVER | *6 | POWER SEAT SWITCH KNOB RH |
| *7 | POWER SEAT SWITCH KNOB RH | *8 | SEAT ADJUSTER COVER CAP RH |
| *9 | WASHER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |

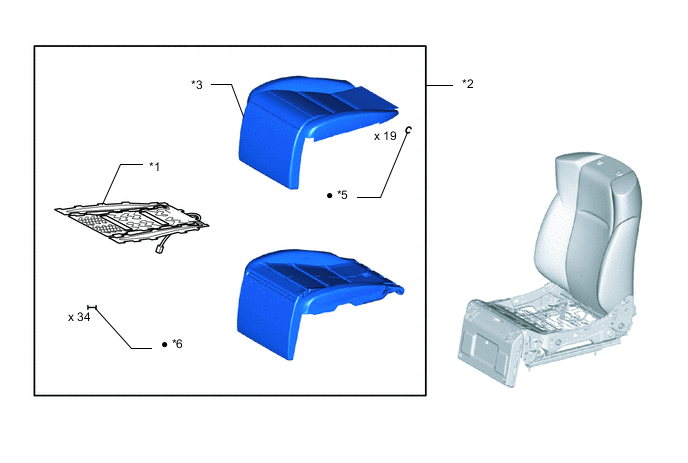

ILLUSTRATION
| *1 | FRONT SEAT CUSHION HEATER ASSEMBLY RH | *2 | SEAT CUSHION COVER WITH PAD |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *4 | HOG RING |
| *5 | TACK PIN | - | - |
| ● | Non-reusable part | - | - |
