REAR NO. 1 SEAT ASSEMBLY(for Power Captain Seat without Memory) REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedures listed below are for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

  • A bolt without a torque specification is shown in the standard bolt chart.

    Click here

PROCEDURE


  1. INSTALL REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH

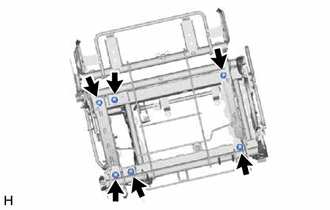

    1. B006R0K

      Install the rear seat cushion frame sub-assembly LH to the No. 1 seat leg sub-assembly LH with the 6 nuts.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  2. INSTALL REAR SEAT WIRE LH

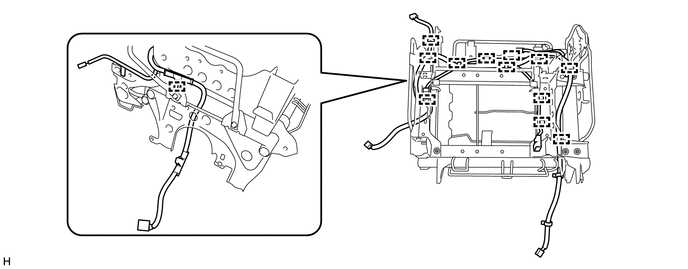

    1. Attach the wire harness clamp to install the rear seat wire LH.

      A01UCIH

  3. INSTALL REAR SEAT LOCK CONTROL CABLE

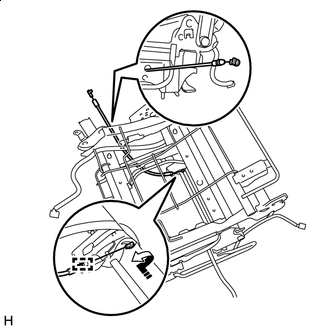

    1. B006MFLC01
      B006N8A Install in this Direction

      While turning the cable end as shown in the illustration, connect it.

    2. Attach the cable clamp to install the rear seat lock control cable.

      Tech Tips

      Install at the middle level of the cable clamp (triple level) side.

  4. INSTALL SEAT TRACK CONTROL CABLE ASSEMBLY

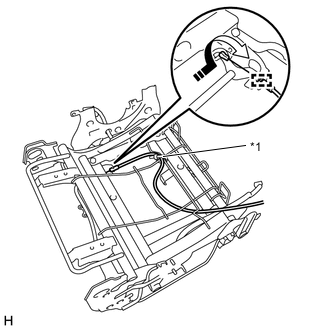

    1. B006R2SC01
      *1 Cable Tie
      B006N8A Install in this Direction

      While turning the cable end as shown in the illustration, connect it.

    2. Attach the cable clamp to install the seat track control cable assembly.

      Tech Tips

      Install at the middle level of the cable clamp (triple level) side.

    3. Using a new cable tie, connect the seat track control cable assembly to the rear seat cushion frame sub-assembly LH.

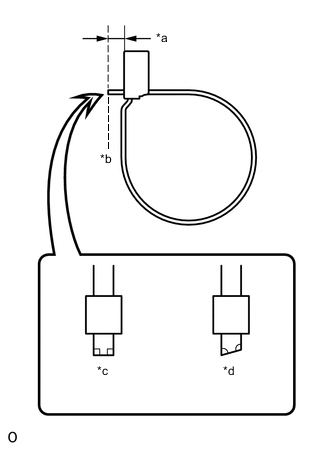

    4. B006MSGC03
      *a 10 mm (0.394 in.)
      *b Cut Here
      *c Correct
      *d Incorrect

      Cut off the end of the cable tie as shown in the illustration.

  5. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006PEWC01
      *1 Protective Tape

      Apply protective tape as shown in the illustration.

    2. While turning the rear No. 1 seat inside reclining adjuster cover as shown in the illustration, install it.

      B006O2DC01
      B006N8A Install in this Direction - -
    3. B006MK2

      Install the screw.

  6. INSTALL RECLINING COVER PROTECTOR RH


    1. B006QL5C01
      B006N8A Install in this Direction

      Install the reclining cover protector RH.

  7. INSTALL RECLINING COVER PROTECTOR RH


    1. B006NWVC01
      B006N8A Install in this Direction

      Attach the claw and install the reclining cover protector RH with the 2 clips.

  8. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

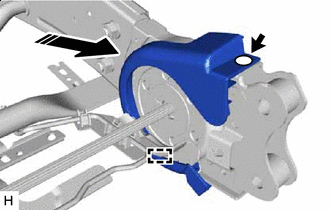

    1. B006QK4C01
      B006N8A Install in this Direction

      Insert the guide and install the rear No. 1 seat inside reclining adjuster cover with the clip.

  9. INSTALL INSIDE RECLINING ADJUSTER COVER LH

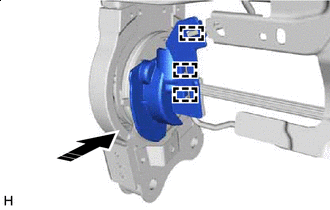

    1. B006OSAC01
      B006N8A Install in this Direction

      Attach the clamp and install the inside reclining adjuster cover LH.

      Note

      Make sure that the inside reclining adjuster cover LH is securely inside the rear No. 1 seat inside reclining adjuster cover.

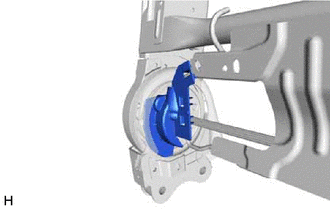

      B006OLG

  10. INSTALL NO. 1 SEATBACK FRAME SUB-ASSEMBLY LH


    1. Temporarily install the No. 1 seatback frame sub-assembly LH with the 4 bolts.

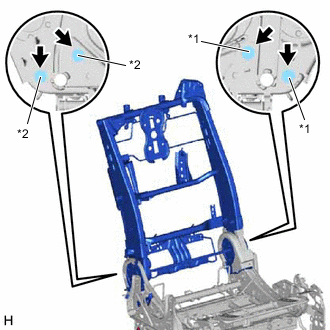

    2. B006NW0C01
      *1 Bolt A
      *2 Bolt B

      Tighten the 4 bolts to install the No. 1 seatback frame sub-assembly LH.

      Torque:
      for Bolt A
      55 N*m  { 561 kgf*cm, 41 ft.*lbf }
      for Bolt B
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      Tech Tips

      Tighten the bolts while pushing the No. 1 seatback frame sub-assembly LH as shown in the illustration.

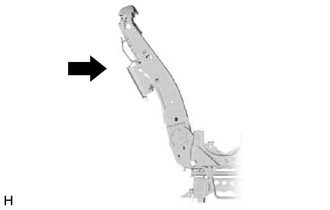

      B006LQ0

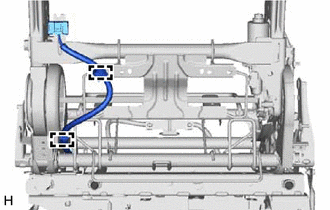

    3. B006PLB

      Attach the wire harness clamp.

  11. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

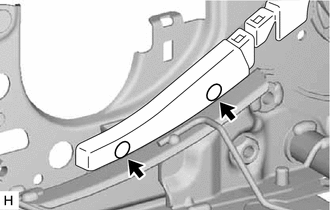

    1. B006OT6

      Install the rear No. 1 seat inside reclining adjuster cover with the 2 clips.

  12. INSTALL NO. 2 SEAT WIRE

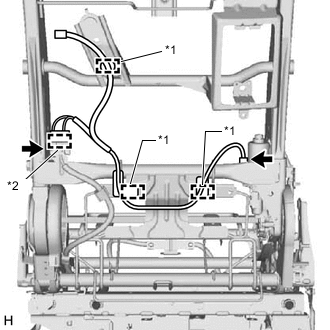

    1. B006MZSC01
      *1 Wire harness clamp
      *2 Connector clamp

      Attach the wire harness clamp and connector clamp.

    2. Connect the 2 connectors and install the No. 2 seat wire.

  13. INSTALL REAR SEATBACK SPRING DAMPER RH


    1. B006L7U

      Install the rear seatback spring damper RH with the 2 nuts.

      Torque:
      14.5 N*m  { 148 kgf*cm, 11 ft.*lbf }

  14. INSTALL REAR SEATBACK SPRING DAMPER


    1. B006PXY

      Install the rear seatback spring damper with the 2 nuts.

      Torque:
      14.5 N*m  { 148 kgf*cm, 11 ft.*lbf }

  15. INSTALL REAR SEAT SHOULDER BELT COVER LH

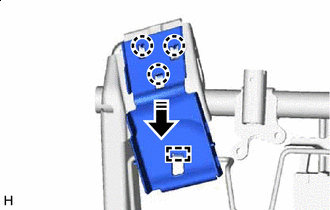

    1. B006LQOC01
      B006N8A Install in this Direction

      Push as shown in the illustration to insert the guide.

    2. Attach the claw to install the rear seat shoulder belt cover LH.

  16. INSTALL NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Click here

  17. INSTALL REAR SEAT INNER RECLINING COVER LH

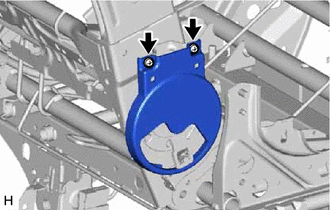

    1. B006LHQ

      Install the rear seat inner reclining cover LH with the 2 screws.

  18. INSTALL REAR SEAT SHOULDER BELT COVER LH


    1. B006KKS

      Attach the claw to install the rear seat shoulder belt cover LH.

  19. INSTALL REAR NO. 2 SEAT PROTECTOR

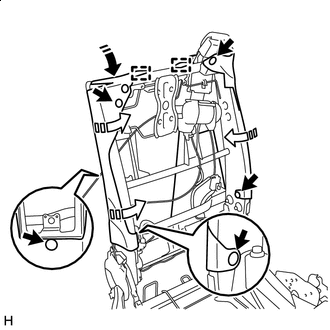

    1. B006OW3C01
      B006N8A Install in this Direction (1)
      B006NJK Install in this Direction (2)

      Insert the guide.

    2. Install the rear No. 2 seat protector with the 5 clips.

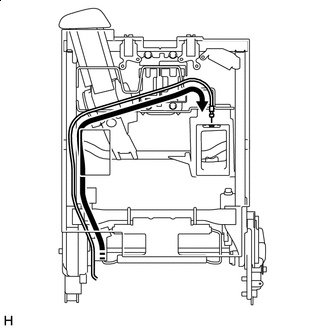

    3. B006MZ0C01
      B006N8A Install in this Direction

      Connect the seat track control cable assembly to the rear No. 2 seat protector.

  20. INSTALL REAR SEAT LEGREST COVER

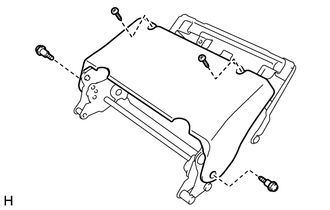

    1. B006MRA

      Install the rear seat legrest cover with the 4 screws.

  21. INSTALL REAR LOWER INNER RECLINING ADJUSTER ARM SUB-ASSEMBLY LH

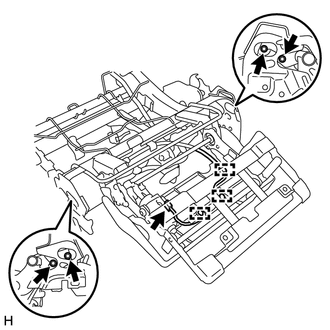

    1. B006LPU

      Install the rear lower inner reclining adjuster arm sub-assembly LH with the 4 bolts.

      Torque:
      22 N*m  { 224 kgf*cm, 16 ft.*lbf }

    2. Attach the wire harness clamp.

    3. Connect the connector.

  22. INSTALL REAR NO. 1 SEAT FOOTREST COVER

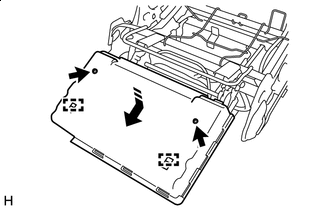

    1. B006OPMC01
      B006N8A Install in this Direction

      Insert the guide and install the rear No. 1 seat footrest cover with the 2 screws.

  23. INSTALL SEAT COVER WIRE

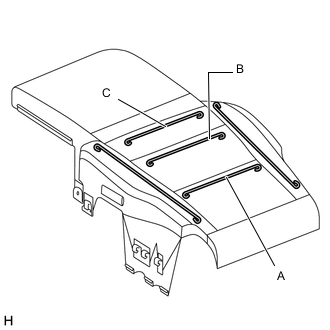

    1. B006LRYN01

      Install the seat cover wire.

      Tech Tips


      • Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

      • When a wire that is less than 1000 mm in length is needed, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

      • Make sure to read the precautions before preparing the wire.

        Click here

      Dimensions
      A 260 mm (10.2 in.)
      B 300 mm (11.8 in.)
      C 370 mm (1.21 ft.)

      Tech Tips

      The dimensions shown in the illustration are the lengths.

      B006OSZ

  24. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER

    Tech Tips

    When installing the seat cover, refer to the precautions in order to prevent wrinkles from forming.

    Click here

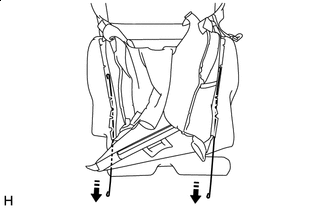

    1. B006OK7C01
      B006N8A Remove in this Direction

      Slide the seat cover wire until it reaches a position where the hog rings in the center can be installed.

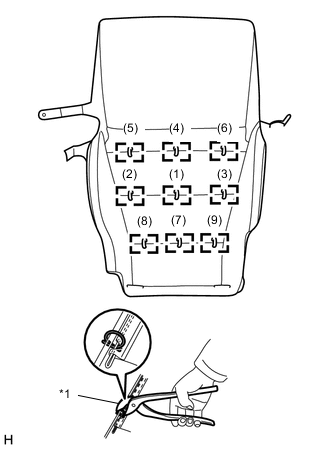

    2. B006KKWC01
      *1 Hog Ring Pliers

      Using hog ring pliers, install the separate type rear seat cushion cover to the rear seat cushion pad LH with 9 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the separate type rear seat cushion cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.

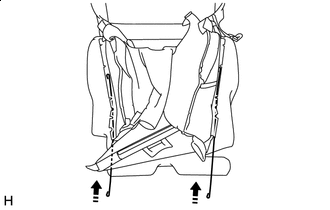

    3. B006Q8XC01
      B006N8A Install in this Direction

      Return the seat cover wire to its original position.

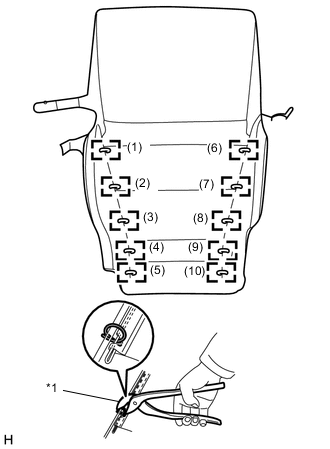

    4. B006PA5C01
      *1 Hog Ring Pliers

      Using hog ring pliers, install the separate type rear seat cushion cover to the rear seat cushion pad LH with 10 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the separate type rear seat cushion cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.

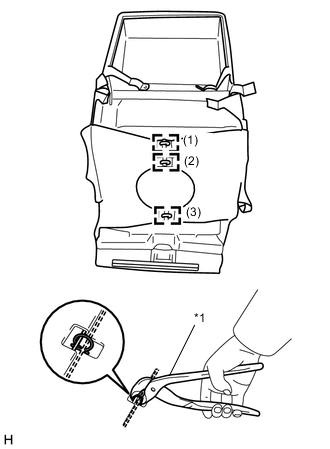

    5. B006Q2IC01
      *1 Hog Ring Pliers

      Using hog ring pliers, install the separate type rear seat cushion cover with 3 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the separate type rear seat cushion cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.

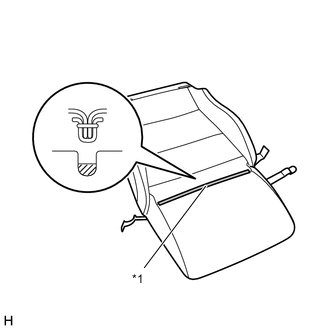

    6. B006PRJC01
      *1 Fastening Tape

      Align the centers of the separate type rear seat cushion cover and rear seat cushion pad LH, and then install the parts so that the fastening tape is parallel.

  25. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

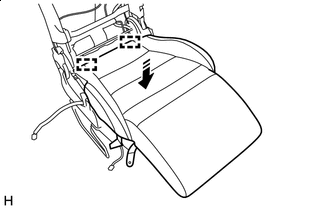

    1. B006RIEC01
      B006N8A Install in this Direction

      Insert the guide.

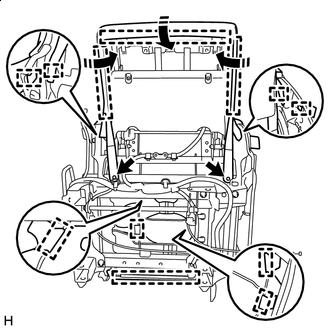

    2. B006R4LC01
      B006N8A Install in this Direction

      Attach the hook.

    3. Install the separate type rear seat cushion cover with pad with the 2 clips.

  26. INSTALL REAR SEAT LEG COVER LH


    1. B006OLZC01
      B006N8A Install in this Direction

      Attach the clip and guide to install the rear seat leg cover LH.

  27. INSTALL REAR SEAT LEG SIDE COVER LH


    1. B006LA4C01
      B006N8A Install in this Direction

      Attach the clip to install the rear seat leg side cover LH.

  28. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

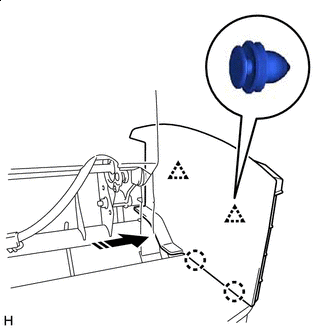

    1. B006L1CC01
      B006N8A Install in this Direction

      Attach the clip and claw to install the rear No. 1 seat inside reclining adjuster cover.

  29. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    Click here

  30. INSTALL SEAT COVER WIRE


    1. Install the seat cover wire.

      Tech Tips


      • Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

      • When a wire that is less than 1000 mm in length is needed, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

      • Make sure to read the precautions before preparing the wire.

        Click here

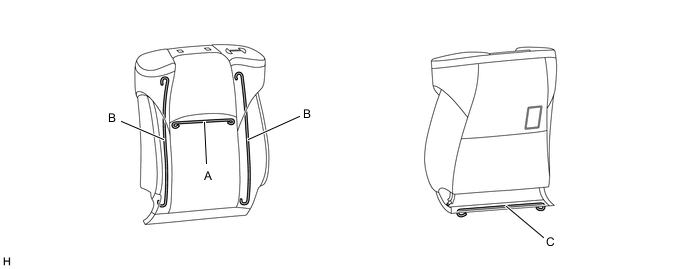

      B006PAKN01
      Dimensions
      A 240 mm (9.45 in.) B 530 mm (1.74 ft.)
      C 350 mm (1.15 ft.) - -

      Tech Tips

      The dimensions shown in the illustration are the lengths.

      B006OSZ

  31. INSTALL SEPARATE TYPE REAR SEATBACK COVER

    Tech Tips

    When installing the seat cover, refer to the precautions in order to prevent wrinkles from forming.

    Click here

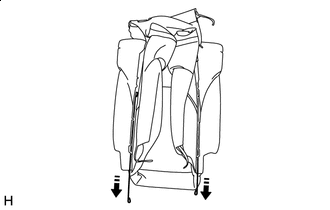

    1. B006M86C01
      B006N8A Remove in this Direction

      Slide the seat cover wire until it reaches a position where the hog rings in the center can be installed.

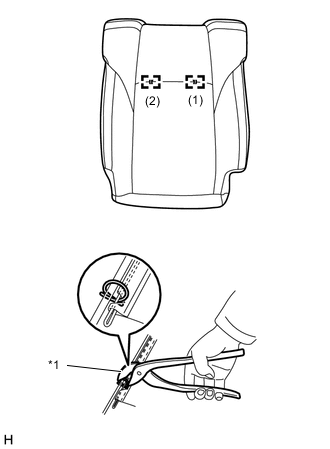

    2. B006LXUC01
      *1 Hog Ring Pliers

      Using hog ring pliers, install the separate type rear seatback cover to the separate type rear seatback pad with 2 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the separate type rear seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.

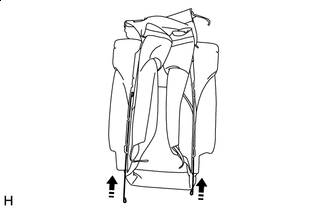

    3. B006PX5C01
      B006N8A Install in this Direction

      Return the seat cover wire to its original position.

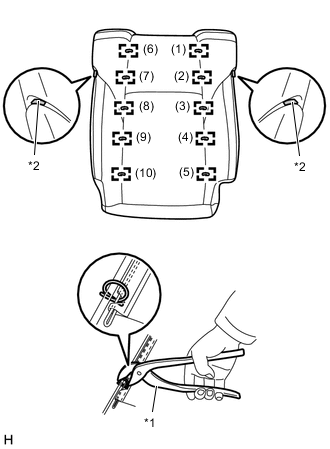

    4. B006NLHC01
      *1 Hog Ring Pliers
      *2 Fastening Tape

      Using hog ring pliers, install the separate type rear seatback cover to the separate type rear seatback pad with 10 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the separate type rear seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.

    5. Attach the fastening tape.

  32. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

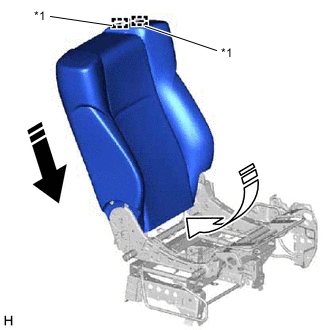

    1. B006LEUC01
      *1 Plate
      B006N8A Install in this Direction (1)
      B006NJK Install in this Direction (2)

      Push in installation direction (1) shown in the illustration to install the separate type rear seatback cover with pad.

    2. Push in the rear end of the separate type rear seatback cover with pad in installation direction (2) shown in the illustration.

    3. Insert the plates of the separate type rear seatback cover.

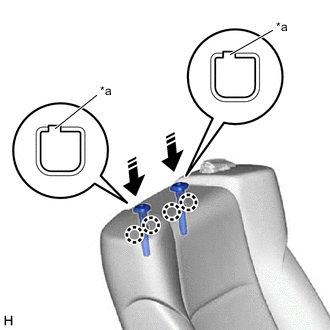

    4. B006R8JC01
      *a Protrusion
      B006N8A Install in this Direction

      Align the rear seat headrest support protrusions with the grooves in the No. 1 seatback frame sub-assembly LH.

    5. Push as shown in the illustration and attach the claw to install the 2 rear seat headrest supports.

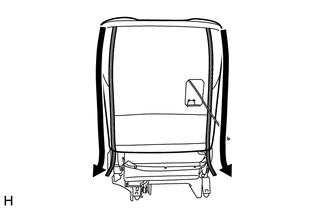

    6. B006LUT

      Close the 2 fasteners.

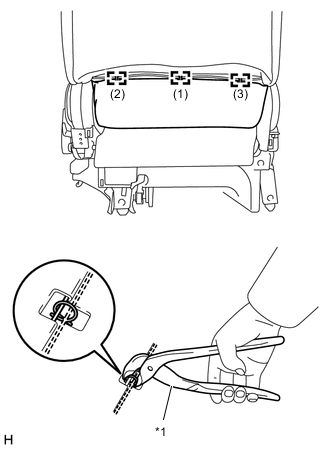

    7. B006NLOC01
      *1 Hog Ring Pliers

      Using hog ring pliers, install 3 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the separate type rear seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.

    8. Store the 2 fasteners.

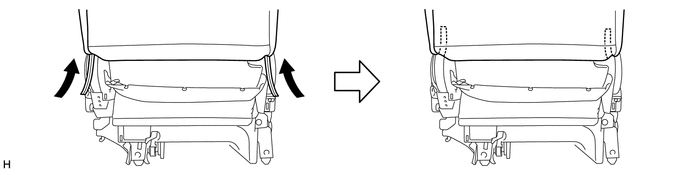

      B006PXK

  33. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

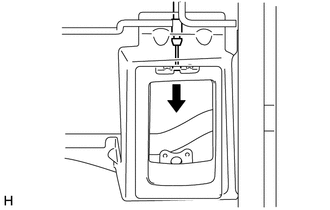

    1. B006PA1

      Pull out the seat track control cable assembly.

    2. B006MBAC01
      B006N8A Install in this Direction

      While turning the seat track control cable assembly as shown in the illustration, connect it.

    3. Attach the cable clamp.

    4. B006O1V

      Install the rear seat lock control lever sub-assembly with the 2 screws.

  34. INSTALL SEAT STAND FRAME CAP


    1. B006PHF

      Attach the claw to install the seat stand frame cap.

  35. INSTALL REAR SEAT SHOULDER BELT COVER LH

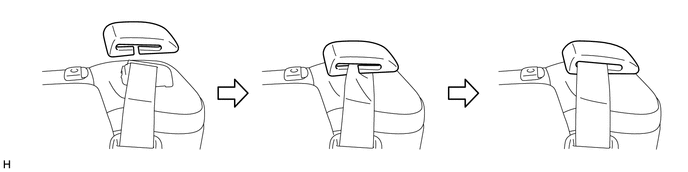

    1. Attach the rear seat shoulder belt cover LH to the No. 1 seat 3 point type belt assembly LH as shown in the illustration.

      B006O8W

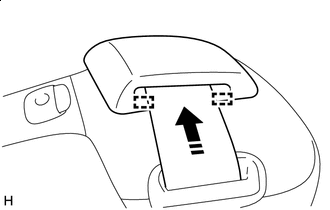

    2. B006M66C01
      B006N8A Install in this Direction

      Push as shown in the illustration to insert the guide.

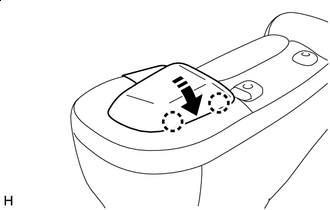

    3. B006OFNC01
      B006N8A Install in this Direction

      Push as shown in the illustration to attach the claw and install the rear seat shoulder belt cover LH.

  36. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

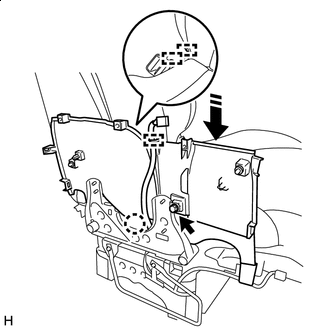

    1. B006PAFC01
      B006N8A Install in this Direction

      Push as shown in the illustration to attach the claw, insert the guide and install the rear No. 1 seat inside reclining adjuster cover.

    2. Attach the clamp to connect the wire harness.

    3. Install the bolt.

  37. INSTALL REAR SEAT ARMREST FRAME SUB-ASSEMBLY RH

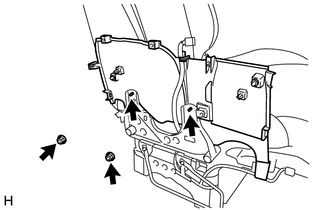

    1. B006PY0

      Clean and remove any oil from the threads of the 2 stud bolts for the rear seat cushion frame sub-assembly LH and those of the 2 fixing nuts for the rear seat armrest frame sub-assembly RH.

    2. Apply adhesive to the threads of the 2 fixing nuts.

      Adhesive
      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

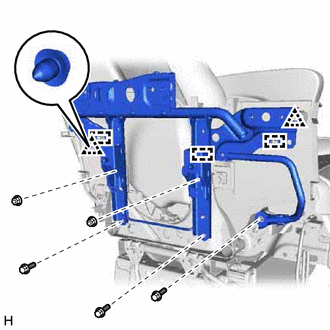

    3. B006RIU

      Attach the clip and insert the guide.

    4. Install the rear seat armrest frame sub-assembly RH with the 3 bolts and 2 nuts.

      Torque:
      for Bolt
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }
      for Nut
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

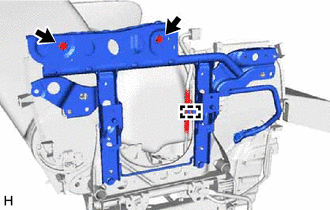

    5. B006NR0

      Attach the wire harness clamp and connect the wire harness.

    6. Install the 2 bolts.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

  38. INSTALL NO. 1 CUP HOLDER ASSEMBLY

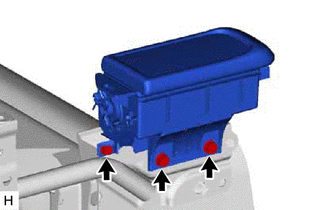

    1. B006MRJ

      Install the No. 1 cup holder assembly with the 2 bolts and screw.

      Torque:
      for Bolt
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }
      for Screw
      4.5 N*m  { 46 kgf*cm, 40 in.*lbf }

  39. INSTALL REAR SEAT CUSHION MOULDING LH

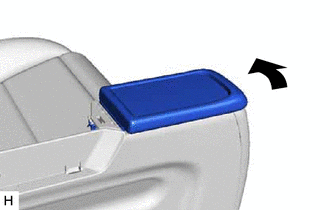

    1. B006M15

      Open the cover of the No. 1 cup holder assembly LH.

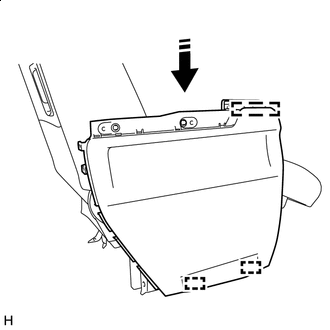

    2. B006M82C01
      B006N8A Install in this Direction

      Push as shown in the illustration to attach the hook.

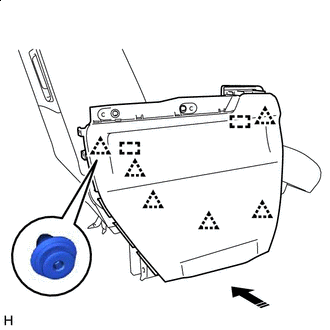

    3. B006OFZC01
      B006N8A Install in this Direction

      Push as shown in the illustration to attach the guide and clip.

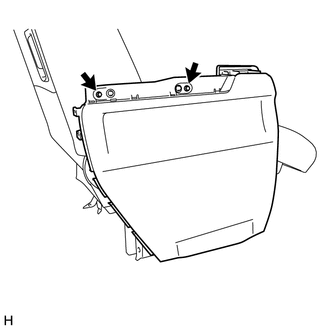

    4. B006KQ9

      Install the rear seat cushion moulding LH with the 2 bolts.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

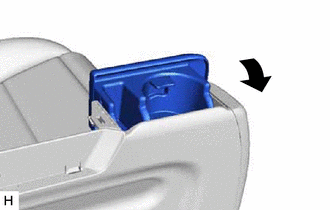

    5. B006KXO

      Close the cover of the No. 1 cup holder assembly LH.

  40. INSTALL SEAT ADJUSTER COVER CAP RH

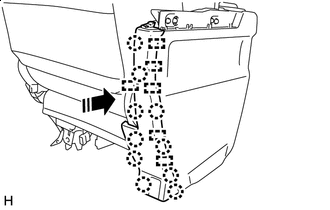

    1. B006KZAC01
      B006N8A Install in this Direction

      Push as shown in the illustration, insert the guide and attach the claw to install the seat adjuster cover cap RH.

  41. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY RH

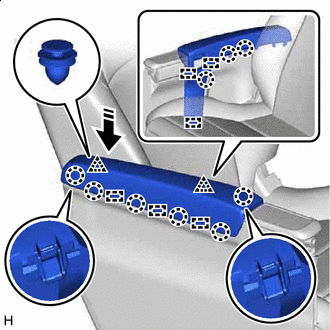

    1. B006KUWC01
      B006N8A Install in this Direction

      Push as shown in the illustration, insert the guide and attach the claw and clip to install the rear No. 1 seat armrest assembly RH.

  42. INSTALL REAR POWER SEAT SWITCH LH

    Click here

  43. INSTALL REAR NO. 2 SEAT COVER BEZEL

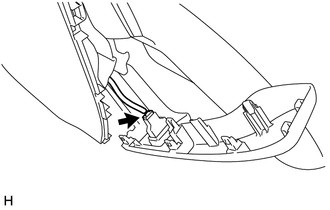

    1. B006L6S

      Connect the connector.

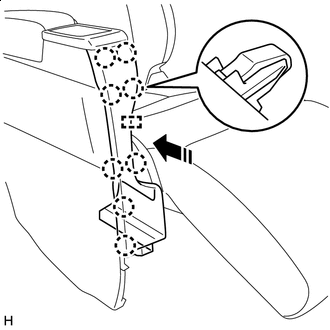

    2. B006R2BC01
      B006N8A Install in this Direction

      Push as shown in the illustration, insert the guide and attach the clip to install the rear No. 2 seat cover bezel.

  44. INSTALL REAR SEAT SIDE TABLE ASSEMBLY (for RH Side)

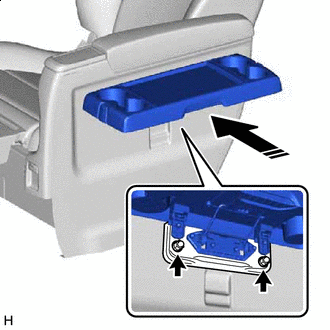

    1. B006Q5QC01
      B006N8A Install in this Direction

      Install the rear seat side table with the 2 nuts.

      Torque:
      14.5 N*m  { 148 kgf*cm, 11 ft.*lbf }

  45. INSTALL REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

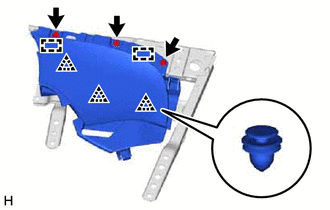

    1. B006M7W

      Insert the guide and attach the clip.

    2. Install the rear No. 1 seat inside reclining adjuster cover to the rear seat armrest frame sub-assembly LH with the 3 bolts.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

  46. INSTALL REAR SEAT ARMREST FRAME SUB-ASSEMBLY LH

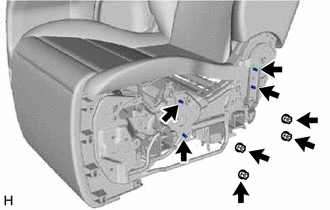

    1. B006R30

      Clean and remove any oil from the threads of the 4 stud bolts for the rear seat cushion frame sub-assembly LH and those of the 4 fixing nuts for the rear seat armrest frame sub-assembly LH.

    2. Apply adhesive to the threads of the 4 fixing nuts.

      Adhesive
      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

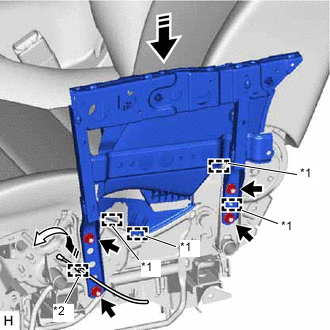

    3. B006O4KC01
      *1 Guide
      *2 Cable Clamp
      B006N8A Install in this Direction (1)
      B006NJK Install in this Direction (2)

      While pushing in installation direction (1) shown in the illustration, insert the guide.

    4. Install the rear seat armrest frame sub-assembly LH together with the rear No. 1 seat inside reclining adjuster cover with the 4 nuts.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

    5. While turning the rear seat lock control cable in installation direction (2) shown in the illustration, connect it.

    6. Attach the cable clamp.

  47. CONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH


    1. Check that the No. 1 seat 3 point type belt assembly LH is not twisted.

    2. Pass the floor anchor of the No. 1 seat 3 point type belt assembly LH through the hole on the rear No. 1 seat inside reclining adjuster cover.

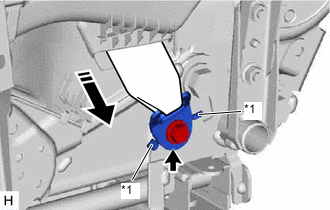

    3. B006NB6C01
      *1 Protruding Part
      B006N8A Install in this Direction

      Install the floor anchor of the No. 1 seat 3 point type belt assembly LH with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      Note

      The anchor part of the No. 1 seat 3 point type belt assembly LH must not overlap the protruding part.

  48. INSTALL REAR SEAT RECLINING COVER LH

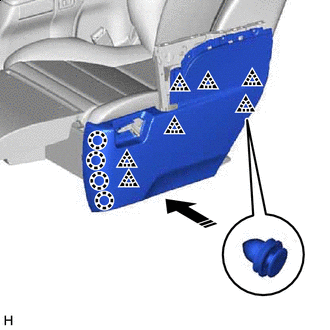

    1. B006NNQC01
      B006N8A Install in this Direction

      Push as shown in the illustration to attach the clip and claw.

    2. B006RJV

      Install the 3 bolts.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

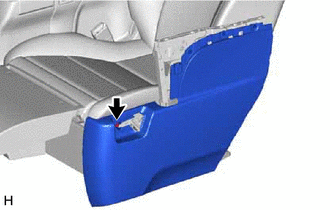

    3. B006Q5O

      Install the rear No. 2 seat reclining cover LH with the screw.

  49. INSTALL SEAT ADJUSTER COVER CAP LH


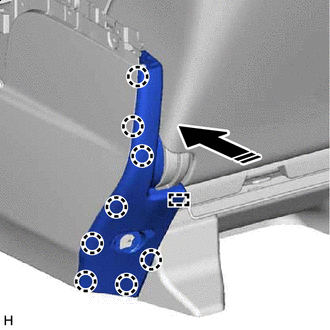

    1. B006L5OC01
      B006N8A Install in this Direction

      Push as shown in the illustration, insert the guide and attach the claw to install the seat adjuster cover cap LH.

  50. INSTALL REAR SEAT CUSHION

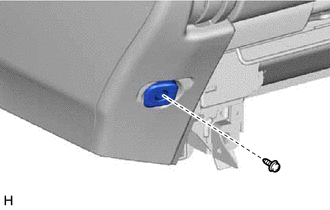

    1. B006N11

      Install the rear seat cushion with the screw.

  51. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH

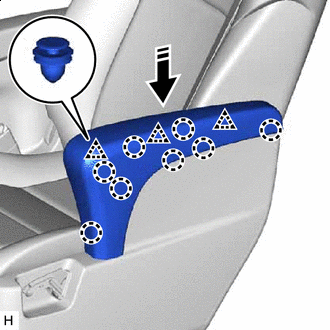

    1. B006L9WC01
      B006N8A Install in this Direction

      Push as shown in the illustration and attach the claw and clip to install the rear No. 1 seat armrest assembly LH.

  52. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH

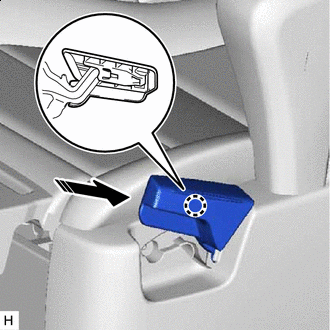

    1. B006OVNC01
      B006N8A Install in this Direction

      Push as shown in the illustration and attach the claw to install the No. 1 reclining adjuster release handle LH.
