REAR NO. 1 SEAT ASSEMBLY(for Power Captain Seat without Memory) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedures listed below are for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH

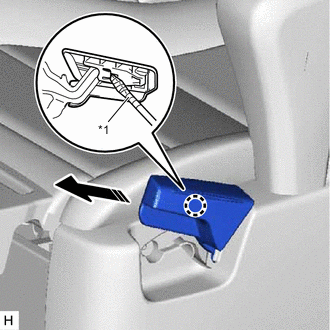

    1. B006MCFC01
      *1 Protective Tape
      B006N8A Remove in this Direction

      Make sure the handle is pulled up, and then using a screwdriver, detach the claw and remove the No. 1 reclining adjuster release handle LH.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE REAR NO. 1 SEAT ARMREST ASSEMBLY LH

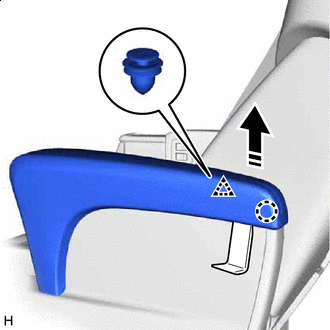

    1. B006KT5C01
      B006N8A Remove in this Direction

      Using moulding remover D, detach the claw and clip.

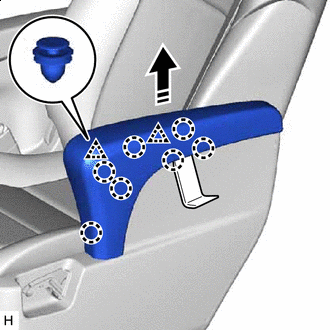

    2. B006MLYC01
      B006N8A Remove in this Direction

      Using moulding remover D, detach the claw and clip and remove the rear seat armrest assembly LH.

  3. REMOVE REAR SEAT CUSHION


    1. B006N11

      Remove the screw and rear seat cushion.

  4. REMOVE SEAT ADJUSTER COVER CAP LH

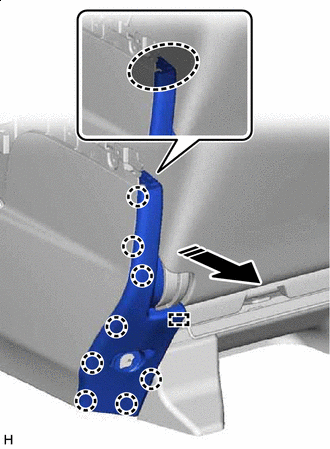

    1. B006PY7C01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide and remove the seat adjuster cover cap LH.

  5. REMOVE REAR SEAT RECLINING COVER LH


    1. B006Q5O

      Remove the screw.

    2. B006RJV

      Remove the 3 bolts.

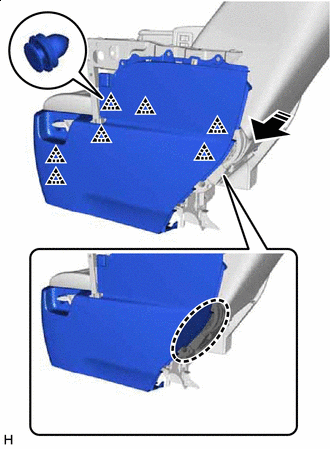

    3. B006KHPC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the clip.

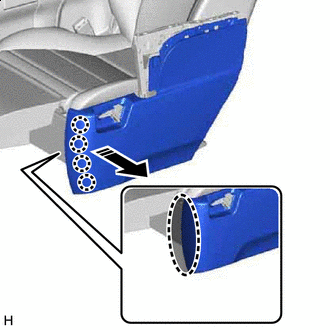

    4. B006LPLC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and remove the rear seat reclining cover LH.

  6. DISCONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

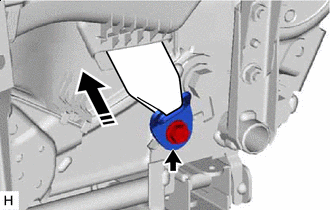

    1. B006Q4QC01
      B006N8A Remove in this Direction

      Remove the bolt.

    2. Disconnect the floor anchor of the No. 1 seat 3 point type belt assembly LH through the hole on the reclining adjuster inside cover LH.

  7. REMOVE REAR SEAT ARMREST FRAME SUB-ASSEMBLY LH

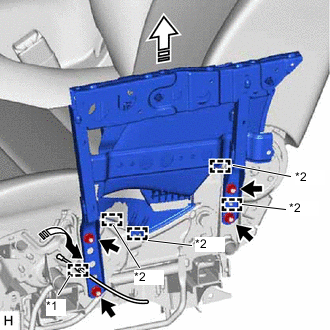

    1. B006NP9C01
      *1 Cable Clamp
      *2 Guide
      B006N8A Remove in this Direction(1)
      B006NJK Remove in this Direction(2)

      Detach the cable clamp.

    2. While turning the rear seat lock control cable in removal direction (1) shown in the illustration, disconnect it.

    3. Remove the 4 nuts.

    4. While pulling in removal direction (2) shown in the illustration, detach the guide and remove the rear seat armrest frame sub-assembly LH together with the rear No. 1 seat reclining adjuster cover.

  8. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006M7W

      Remove the 3 bolts.

    2. Detach the clip and guide and remove the rear No. 1 seat reclining adjuster cover from the rear seat armrest frame sub-assembly LH.

  9. REMOVE REAR SEAT SIDE TABLE ASSEMBLY (for RH Side)

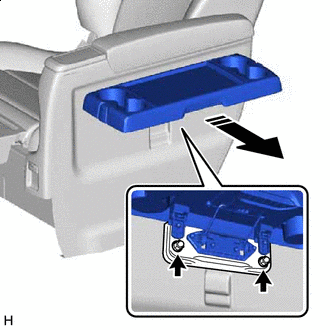

    1. B006M2JC01
      B006N8A Remove in this Direction

      Remove the 2 nuts and rear seat side table assembly.

  10. REMOVE REAR NO. 2 SEAT COVER BEZEL

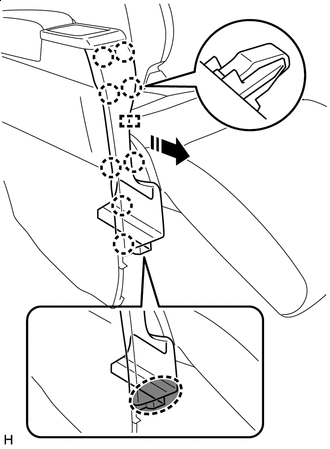

    1. B006M8AC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide.

    2. B006L6S

      Disconnect the connector and remove the rear No. 2 seat cover bezel.

  11. REMOVE REAR POWER SEAT SWITCH LH

    Click here

  12. REMOVE REAR NO. 1 SEAT ARMREST ASSEMBLY RH

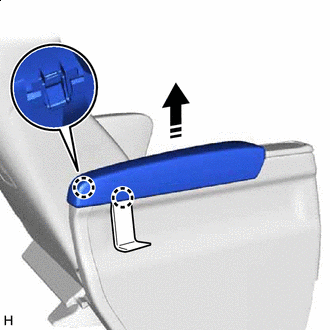

    1. B006N9PC01
      B006N8A Remove in this Direction

      Using moulding remover D, detach the claw.

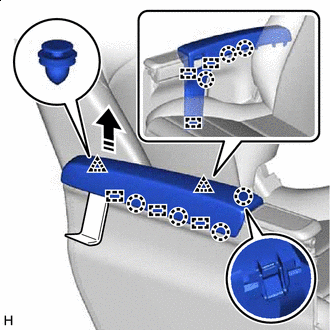

    2. B006LEWC01
      B006N8A Remove in this Direction

      Using moulding remover D, detach the claw, clip and guide and remove the rear No. 1 seat armrest assembly RH.

  13. REMOVE SEAT ADJUSTER COVER CAP RH

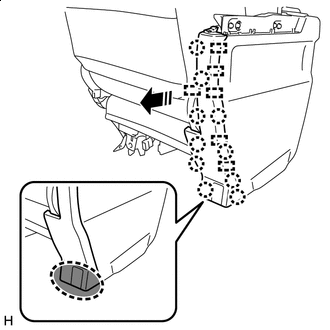

    1. B006LGYC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the claw and guide and remove the seat adjuster cover cap RH.

  14. REMOVE REAR SEAT CUSHION MOULDING LH


    1. B006M15

      Open the cover of the No. 1 cup holder assembly LH.

    2. B006KQ9

      Remove the 2 bolts.

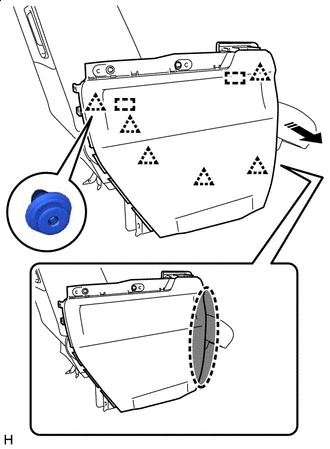

    3. B006QEHC01
      B006Q1Z Place Hands Here
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the clip and guide.

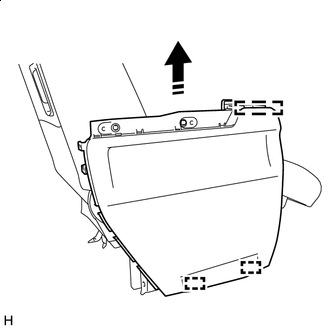

    4. B006P99C01
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the hook and remove the rear seat cushion moulding LH.

  15. REMOVE NO. 1 CUP HOLDER ASSEMBLY


    1. B006MRJ

      Remove the 2 bolts, screw and No. 1 cup holder assembly.

  16. REMOVE REAR SEAT ARMREST FRAME SUB-ASSEMBLY RH


    1. B006NR0

      Remove the 2 bolts.

    2. Detach the wire harness clamp and disconnect the wire harness.

    3. B006RIU

      Remove the 3 bolts and 2 nuts.

    4. Detach the clip and guide and remove the rear seat armrest frame sub-assembly RH.

  17. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

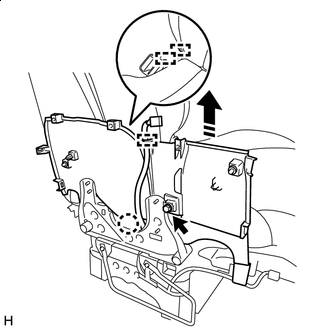

    1. B006MOHC01
      B006N8A Remove in this Direction

      Remove the bolt.

    2. Detach the clamp and disconnect the wire harness.

    3. Pull as shown in the illustration to detach the claw and guide and remove the rear No. 1 seat inside reclining adjuster cover.

  18. REMOVE REAR SEAT SHOULDER BELT COVER LH

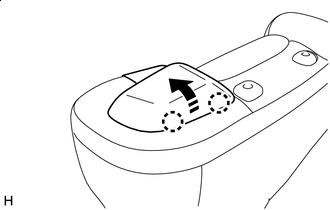

    1. B006OAKC01
      B006N8A Remove in this Direction

      Lift up the part as shown in the illustration to detach the claw.

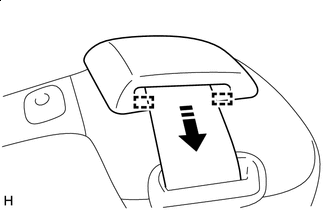

    2. B006OKEC01
      B006N8A Remove in this Direction

      Pull as shown in the illustration to detach the guide.

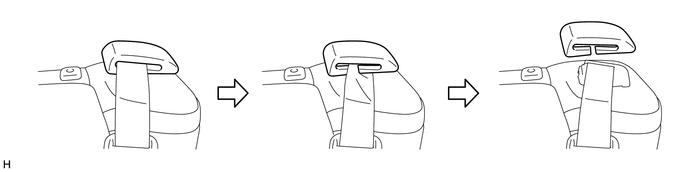

    3. Remove the rear seat shoulder belt cover LH from the No. 1 seat 3 point type belt assembly LH as shown in the illustration.

      B006OOW

  19. REMOVE SEAT STAND FRAME CAP


    1. B006M45C01
      *1 Protective Tape

      Using a screwdriver, detach the claw and remove the seat stand frame cap.

      Tech Tips

      Tape the screwdriver tip before use.

  20. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY


    1. B006O1V

      Remove the 2 screws.

    2. B006PS3C01
      B006N8A Remove in this Direction

      Detach the cable clamp.

    3. While turning the part as shown in the illustration, disconnect the seat track control cable assembly and remove the rear seat lock control lever sub-assembly.

  21. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

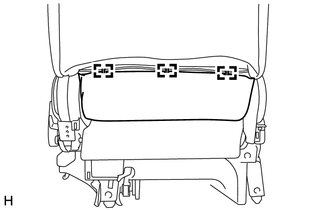

    1. B006N47

      Remove the 3 hog rings.

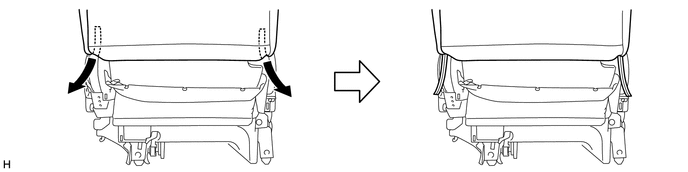

    2. Pull out the 2 fasteners.

      B006NVM

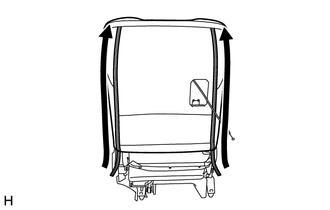

    3. B006KKJ

      Open the 2 fasteners.

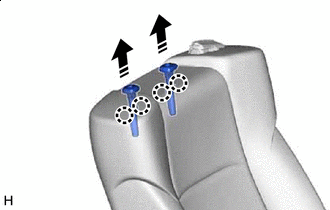

    4. B006NJ8C01
      B006N8A Remove in this Direction

      Detach the claw and remove the 2 rear seat headrest supports.

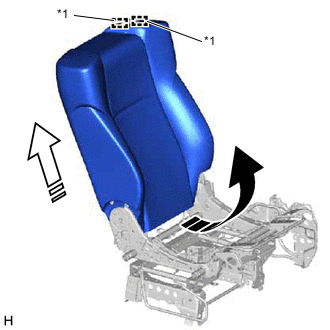

    5. B006RKJC01
      *1 Plate
      B006N8A Remove in this Direction(1)
      B006NJK Remove in this Direction(2)

      Pull out the plates of the separate type rear seatback cover.

    6. Pull out the rear end of the separate type rear seatback cover with pad in removal direction (1) shown in the illustration.

    7. Lift up in removal direction (2) shown in the illustration to remove the separate type rear seatback cover with pad.

  22. REMOVE SEPARATE TYPE REAR SEATBACK COVER

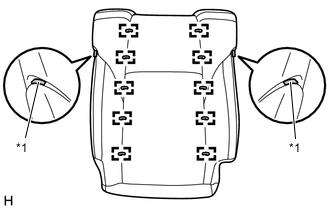

    1. B006LHBC01
      *1 Fastening Tape

      Detach the fastening tape.

    2. Remove the 10 hog rings.

    3. B006M86C01
      B006N8A Remove in this Direction

      Slide the seat cover wire until it reaches a position where the hog rings in the center can be removed.

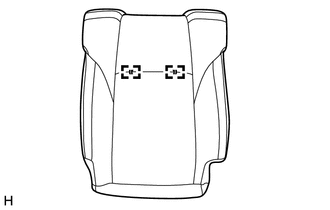

    4. B006NGK

      Remove the 2 hog rings and separate type rear seatback cover from the separate type rear seatback pad.

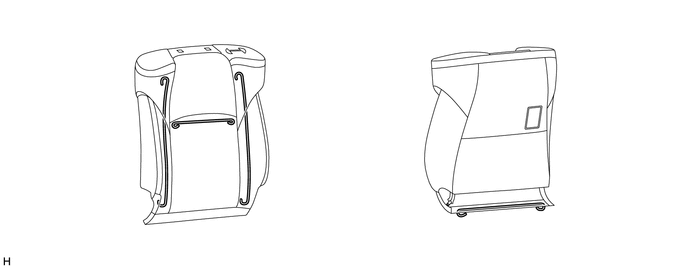

  23. REMOVE SEAT COVER WIRE


    1. Remove the seat cover wire.

      B006PAK

  24. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    Click here

  25. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

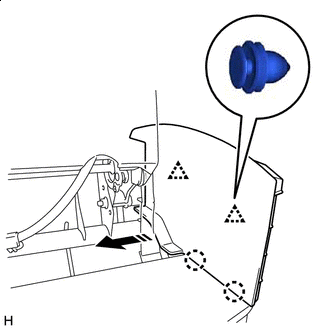

    1. B006PYVC01
      B006N8A Remove in this Direction

      Detach the clip and claw and remove the rear No. 1 seat inside reclining adjuster cover.

  26. REMOVE REAR SEAT LEG SIDE COVER LH


    1. B006LPIC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip and remove the rear seat leg side cover LH.

  27. REMOVE REAR SEAT LEG COVER LH


    1. B006OTCC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip and guide and remove the rear seat leg cover LH.

  28. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

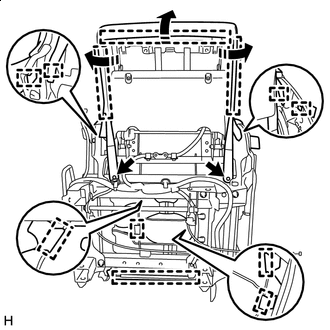

    1. B006ME3C01
      B006N8A Remove in this Direction

      Using a clip remover, detach the 2 clips.

    2. Detach the hook.

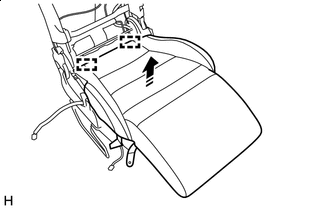

    3. B006NQRC01
      B006N8A Remove in this Direction

      Detach the guide and remove the separate type rear seat cushion cover with pad.

  29. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER

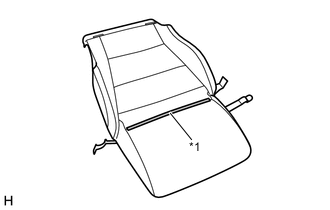

    1. B006NSFC01
      *1 Fastening Tape

      Detach the fastening tape.

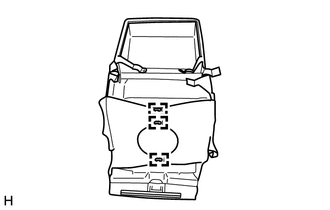

    2. A01UDPJ

      Remove the 3 hog rings.

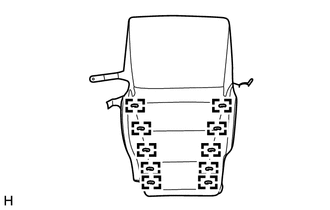

    3. B006M31

      Remove the 10 hog rings.

    4. B006OK7C01
      B006N8A Remove in this Direction

      Slide the seat cover wire until it reaches a position where the hog rings in the center can be removed.

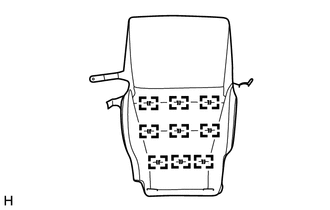

    5. B006QH4

      Remove the 9 hog rings and separate type rear seat cushion cover from the rear seat cushion pad LH.

  30. REMOVE SEAT COVER WIRE

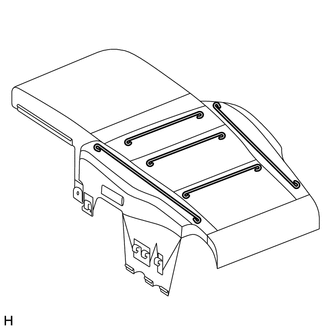

    1. B006LRY

      Remove the seat cover wire.

  31. REMOVE REAR NO. 1 SEAT FOOTREST COVER

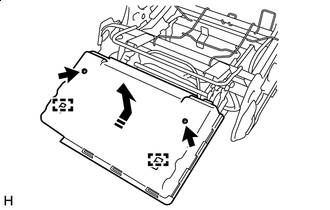

    1. B006P8VC01
      B006N8A Remove in this Direction

      Remove the 2 screws.

    2. Detach the guide and remove the rear No. 1 seat footrest cover.

  32. REMOVE REAR LOWER INNER RECLINING ADJUSTER ARM SUB-ASSEMBLY LH


    1. B006LPU

      Disconnect the connector.

    2. Detach the wire harness clamp.

    3. Remove the 4 bolts and rear lower inner reclining adjuster arm sub-assembly LH.

  33. REMOVE REAR SEAT LEGREST COVER


    1. B006MRA

      Remove the 4 screws and rear seat legrest cover.

  34. REMOVE REAR NO. 2 SEAT PROTECTOR

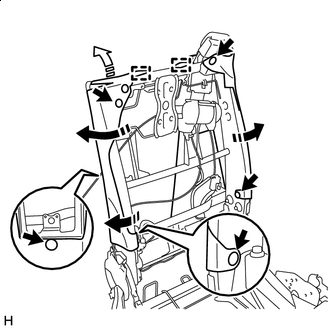

    1. B006PXBC01
      B006N8A Remove in this Direction (1)
      B006NJK Remove in this Direction (2)

      Using a clip remover, remove the 5 clips.

    2. Remove the guide.

    3. B006OJBC01
      B006N8A Remove in this Direction

      Pull out the seat track control cable assembly and remove the rear No. 2 seat protector.

  35. REMOVE REAR SEAT SHOULDER BELT COVER LH


    1. B006KKS

      Detach the claw and remove the rear seat shoulder belt cover LH.

  36. REMOVE REAR SEAT INNER RECLINING COVER LH


    1. B006LHQ

      Remove the 2 screws and rear seat inner reclining cover LH.

  37. REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Click here

  38. REMOVE REAR SEAT SHOULDER BELT COVER LH

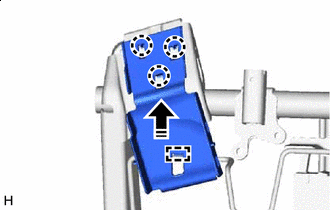

    1. B006OGQC01
      B006N8A Remove in this Direction

      Detach the claw.

    2. Pull as shown in the illustration to detach the guide and remove the rear seat shoulder belt cover LH.

  39. REMOVE REAR SEATBACK SPRING DAMPER


    1. B006PXY

      Remove the 2 nuts and rear seatback spring damper.

  40. REMOVE REAR SEATBACK SPRING DAMPER RH


    1. B006L7U

      Remove the 2 nuts and rear seatback spring damper RH.

  41. REMOVE NO. 2 SEAT WIRE


    1. B006MZSC01
      *1 Wire harness clamp
      *2 Connector clamp

      Disconnect the 2 connectors.

    2. Detach the wire harness clamp and connector clamp and remove the No. 2 seat wire.

  42. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006OT6

      Using a clip remover, detach the 2 clips and remove the rear No. 1 seat inside reclining adjuster cover.

  43. REMOVE NO. 1 SEATBACK FRAME SUB-ASSEMBLY LH


    1. B006PLB

      Detach the wire harness clamp.

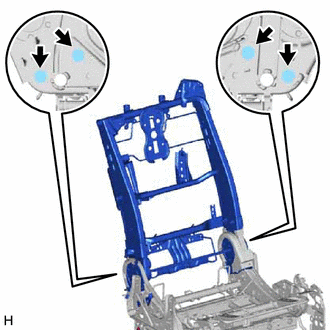

    2. B006NW0

      Remove the 4 bolts and No. 1 seatback frame sub-assembly LH.

  44. REMOVE INSIDE RECLINING ADJUSTER COVER LH

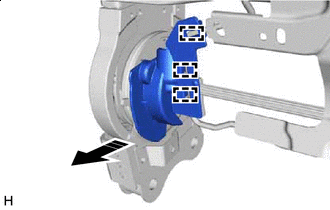

    1. B006M3BC01
      B006N8A Remove in this Direction

      Detach the guide and remove the inside reclining adjuster cover LH.

  45. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER

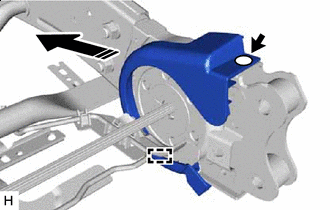

    1. B006Q8WC01
      B006N8A Remove in this Direction

      Using a clip remover, detach the clip.

    2. Detach the guide and remove the rear No. 1 seat inside reclining adjuster cover.

  46. REMOVE RECLINING COVER PROTECTOR RH


    1. B006R0MC01
      *1 Protective Tape
      B006N8A Remove in this Direction

      Using a clip remover, detach the 2 clips.

    2. Using a screwdriver, detach the claw and remove the reclining cover protector RH.

      Tech Tips

      Tape the screwdriver tip before use.

  47. REMOVE RECLINING COVER PROTECTOR RH


    1. B006O0EC01
      B006N8A Remove in this Direction

      Remove the reclining cover protector RH.

  48. REMOVE REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER


    1. B006MK2

      Remove the screw.

    2. B006PEWC01
      *1 Protective Tape

      Apply protective tape as shown in the illustration.

    3. While turning the rear No. 1 seat inside reclining adjuster cover as shown in the illustration, remove it.

      B006MNRC01
      B006N8A Remove in this Direction - -

  49. REMOVE SEAT TRACK CONTROL CABLE ASSEMBLY

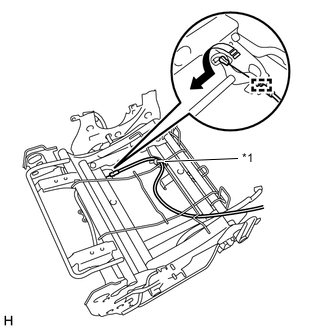

    1. B006MFFC01
      *1 Cable Tie
      B006N8A Remove in this Direction

      Cut off the cable tie and disconnect the seat track control cable assembly from the rear seat cushion frame sub-assembly LH.

    2. Detach the cable clamp.

    3. While turning the cable end as shown in the illustration, disconnect it and remove the seat track control cable assembly.

  50. REMOVE REAR SEAT LOCK CONTROL CABLE

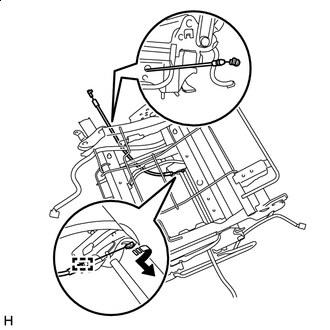

    1. B006OO3C01
      B006N8A Remove in this Direction

      Detach the cable clamp.

    2. While turning the cable end as shown in the illustration, disconnect it and remove the rear seat lock control cable.

  51. REMOVE REAR SEAT WIRE LH


    1. Detach the wire harness clamp and remove the rear seat wire LH.

      A01UCIH

  52. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH


    1. B006R0K

      Remove the 6 nuts and rear seat cushion frame sub-assembly LH from the No. 1 seat leg sub-assembly LH.
