REAR NO. 1 SEAT ASSEMBLY(for Power Captain Seat without Memory) COMPONENTS
ILLUSTRATION
| *1 | NO. 2 SEAT LEG COVER LH | *2 | REAR NO. 1 SEAT ASSEMBLY |
| *3 | REAR SEAT HEADREST ASSEMBLY | *4 | REAR SEAT LOWER CUSHION SHIELD LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

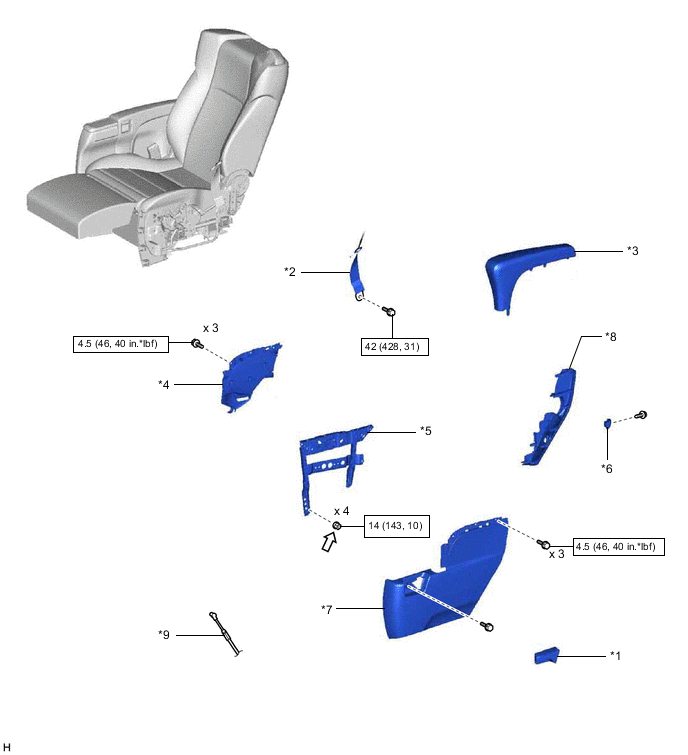

ILLUSTRATION
| *1 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH | *2 | NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR) |
| *3 | REAR NO. 1 SEAT ARMREST ASSEMBLY LH | *4 | REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER |
| *5 | REAR SEAT ARMREST FRAME SUB-ASSEMBLY LH | *6 | REAR SEAT CUSHION |
| *7 | REAR SEAT RECLINING COVER LH | *8 | SEAT ADJUSTER COVER CAP LH |
| *9 | REAR SEAT LOCK CONTROL CABLE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
Precoated part |

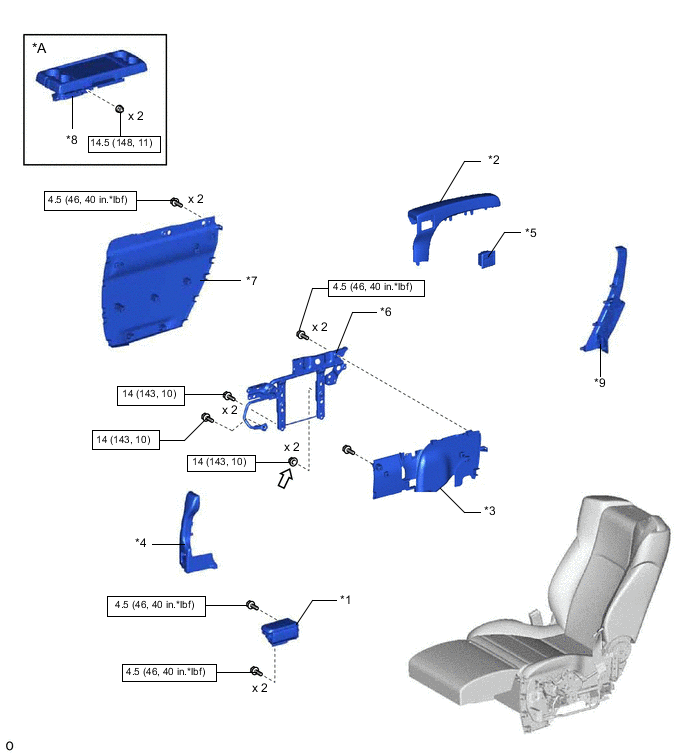

ILLUSTRATION
| *A | for RH Side | - | - |
| *1 | NO. 1 CUP HOLDER ASSEMBLY | *2 | REAR NO. 1 SEAT ARMREST ASSEMBLY RH |
| *3 | REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER | *4 | REAR NO. 2 SEAT COVER BEZEL |
| *5 | REAR POWER SEAT SWITCH LH | *6 | REAR SEAT ARMREST FRAME SUB-ASSEMBLY RH |
| *7 | REAR SEAT CUSHION MOULDING LH | *8 | REAR SEAT SIDE TABLE ASSEMBLY |
| *9 | SEAT ADJUSTER COVER CAP RH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | |
Precoated part |

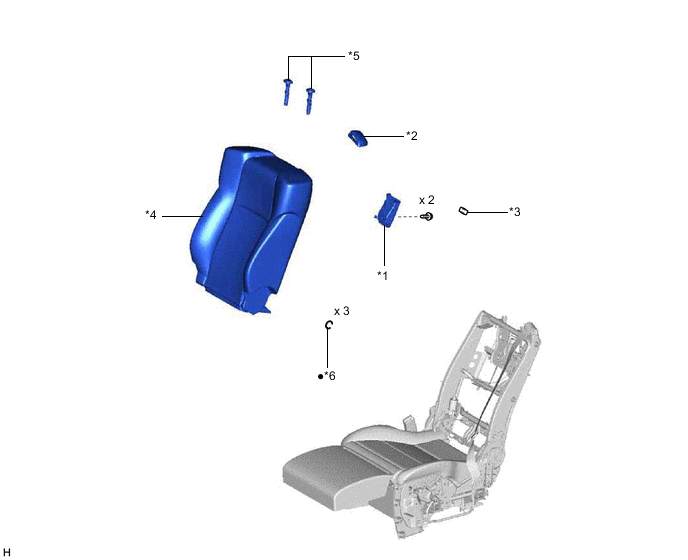

ILLUSTRATION
| *1 | REAR SEAT INNER TRACK COVER SUB-ASSEMBLY LH | *2 | REAR SEAT SHOULDER BELT COVER LH |
| *3 | SEAT STAND FRAME CAP | *4 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *5 | REAR SEAT HEADREST SUPPORT | *6 | HOG RING |
| ● | Non-reusable part | - | - |

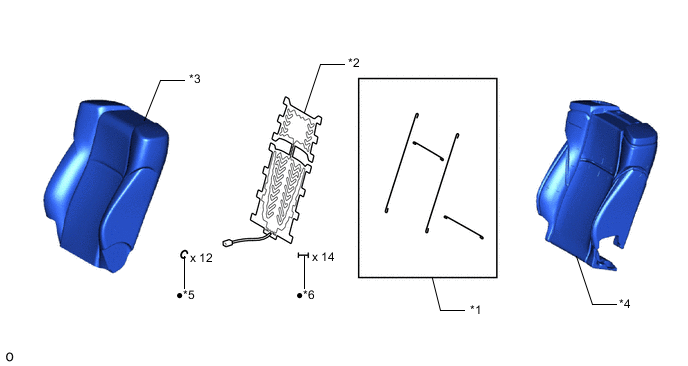

ILLUSTRATION
| *1 | SEAT COVER WIRE | *2 | SEAT HEATER ASSEMBLY |
| *3 | SEPARATE TYPE REAR SEATBACK COVER | *4 | SEPARATE TYPE REAR SEATBACK PAD |
| *5 | HOG RING | *6 | TACK PIN |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | REAR NO. 1 SEAT INNER BELT ASSEMBLY LH | *2 | REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER |
| *3 | REAR SEAT LEG COVER LH | *4 | REAR SEAT LEG SIDE COVER LH |
| *5 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

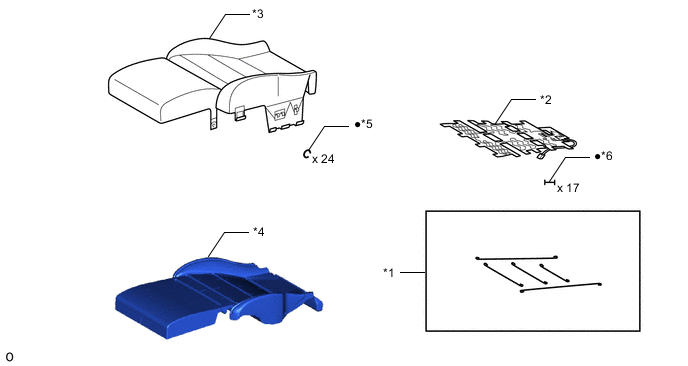

ILLUSTRATION
| *1 | SEAT COVER WIRE | *2 | SEAT HEATER ASSEMBLY |
| *3 | SEPARATE TYPE REAR SEAT CUSHION COVER | *4 | REAR SEAT CUSHION PAD LH |
| *5 | HOG RING | *6 | TACK PIN |
| ● | Non-reusable part | - | - |

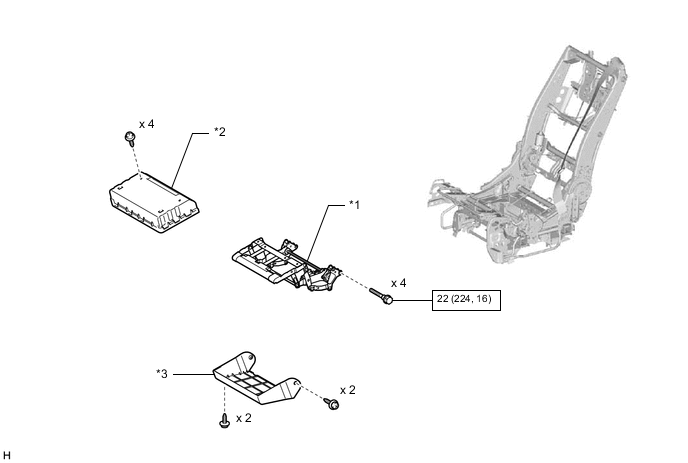

ILLUSTRATION
| *1 | REAR LOWER INNER RECLINING ADJUSTER ARM SUB-ASSEMBLY LH | *2 | REAR NO. 1 SEAT FOOTREST COVER |
| *3 | REAR SEAT LEGREST COVER | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH | *2 | NO. 2 SEAT WIRE |
| *3 | REAR NO. 2 SEAT PROTECTOR | *4 | REAR SEAT BACK SPRING DAMPER |
| *5 | REAR SEAT BACK SPRING DAMPER LH | *6 | REAR SEAT INNER RECLINING COVER LH |
| *7 | REAR SEAT SHOULDER BELT COVER LH | *8 | REAR SEAT SHOULDER BELT COVER LH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

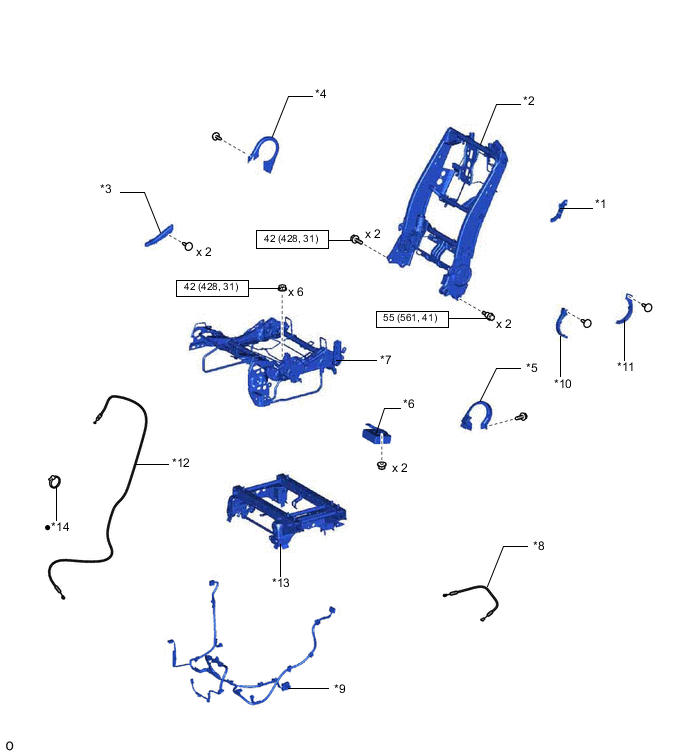

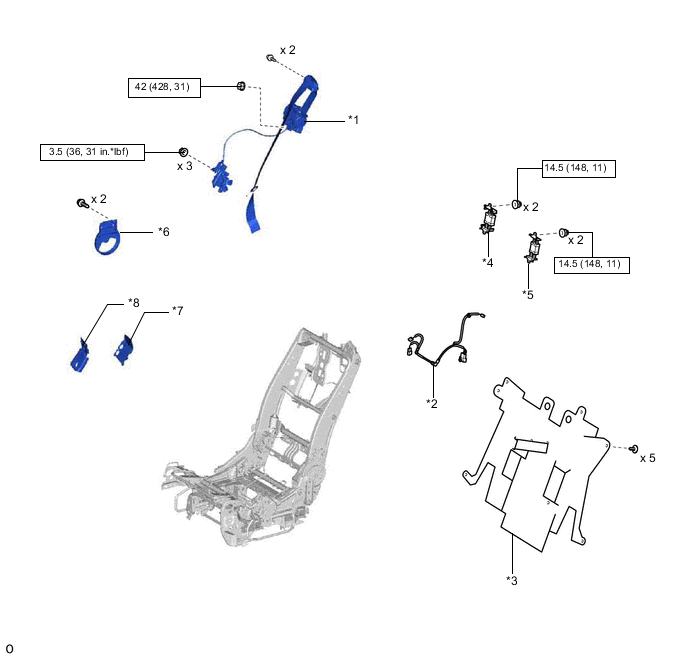

ILLUSTRATION
| *1 | INSIDE RECLINING ADJUSTER COVER LH | *2 | NO. 1 SEATBACK FRAME SUB-ASSEMBLY LH |
| *3 | REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER | *4 | REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER |
| *5 | REAR NO. 1 SEAT INSIDE RECLINING ADJUSTER COVER | *6 | REAR SEAT CLIMATE CONTROL ECU LH |
| *7 | REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH | *8 | REAR SEAT LOCK CONTROL CABLE |
| *9 | REAR SEAT WIRE LH | *10 | RECLINING COVER PROTECTOR RH |
| *11 | RECLINING COVER PROTECTOR RH | *12 | SEAT TRACK CONTROL CABLE ASSEMBLY |
| *13 | NO. 1 SEAT LEG SUB-ASSEMBLY LH | *14 | CABLE TIE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
