STEERING PAD SWITCH INSPECTION

PROCEDURE


  1. INSPECT STEERING PAD SWITCH ASSEMBLY


    1. Measure the resistance according to the value(s) in the table below.

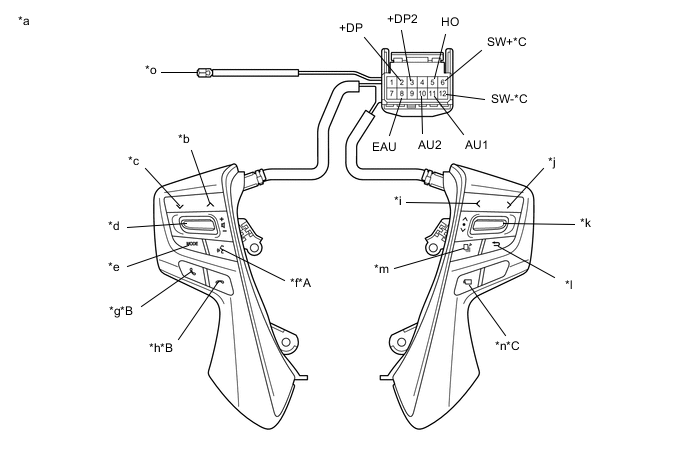

      A01IHULC01
      *A w/ Voice Switch *B w/ On hook, Off hook Switch
      *C w/ Panoramic View Monitor System - -
      *a

      Component without harness connected

      (Steering Pad Switch Assembly)

      		 *b Seek+
      *c Seek- *d Volume+/Volume-
      *e MODE *f Voice
      *g Off hook *h On hook
      *i Left *j Right
      *k Up/Down/Enter *l Back
      *m Top *n View
      *o Terminal-A - -
      Standard Resistance
      Tester Connection Condition Specified Condition
      11 (AU1) - 8 (EAU) No switch being operated 95 to 105 kΩ
      Seek+ switch being operated Below 2.5 Ω
      Seek- switch being operated 313 to 345 Ω
      Volume+ switch being operated 950 to 1050 Ω
      Volume- switch being operated 2955 to 3265 Ω
      10 (AU2) - 8 (EAU) No switch being operated 95 to 105 kΩ
      MODE switch being operated Below 2.5 Ω
      On hook switch being operated*1 313 to 345 Ω
      Off hook switch being operated*1 950 to 1050 Ω
      Voice switch being operated*2 2955 to 3265 Ω
      3 (+DP2) - 8 (EAU) No switch being operated 95 to 105 kΩ
      Left switch being operated Below 2.5 Ω
      Up switch being operated 313 to 345 Ω
      Down switch being operated 950 to 1050 Ω
      Right switch being operated 2955 to 3265 Ω
      2 (+DP) - 8 (EAU) No switch being operated 95 to 105 kΩ
      Enter switch being operated Below 2.5 Ω
      Top switch being operated 313 to 345 Ω
      Back switch being operated 950 to 1050 Ω
      6 (SW+) - 12 (SW-)*3 No switch being operated 1 MΩ or higher
      View switch being operated Below 2.5 Ω
      5 (HO) - Terminal-A Always Below 2.5 Ω

      • *1: w/ On hook, Off hook Switch

      • *2: w/ Voice Switch

      • *3: w/ Panoramic View Monitor System

      Tech Tips

      If the result is not as specified, replace the steering pad switch assembly.

    2. Check the illumination.

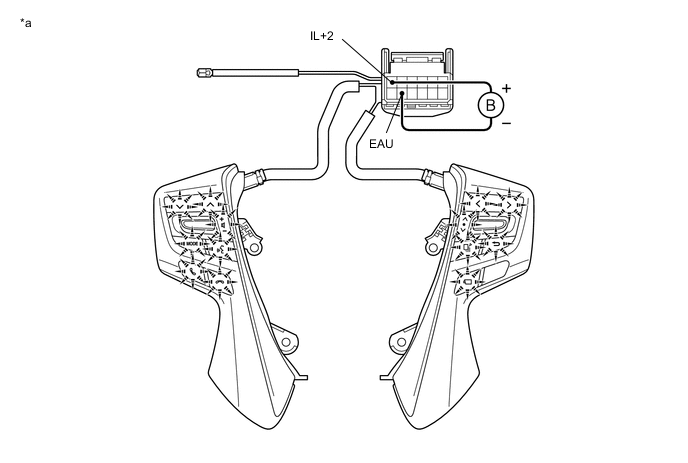

      A01IK4WC01
      *a

      Component without harness connected

      (Steering Pad Switch Assembly)

      		 - -

      1. Connect a positive (+) lead from the battery to terminal 1 (IL+2) and a negative (-) lead to terminal 8 (EAU) of the steering pad switch assembly connector.

      2. Check that the switch illumination illuminates.

        OK
        The steering pad switch illumination illuminates.

        Tech Tips

        If the result is not as specified, replace the steering pad switch assembly.
