STEERING WHEEL COMPONENTS
ILLUSTRATION
| *1 | STEERING WHEEL ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

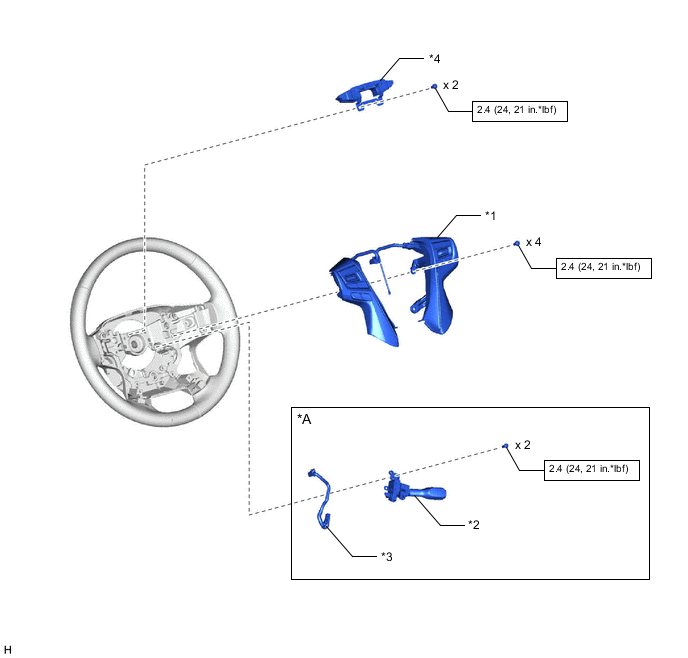

ILLUSTRATION
| *A | w/ Cruise Control System | - | - |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | CRUISE CONTROL MAIN SWITCH |
| *3 | CRUISE CONTROL SWITCH WIRE | *4 | STEERING SHAKE DAMPER |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

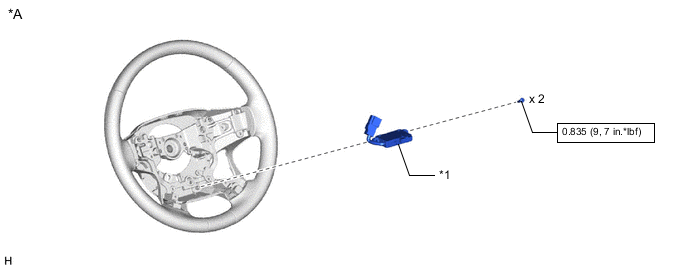

ILLUSTRATION
| *A | w/ Steering Heater | - | - |
| *1 | STEERING WHEEL HEATER CONTROL ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

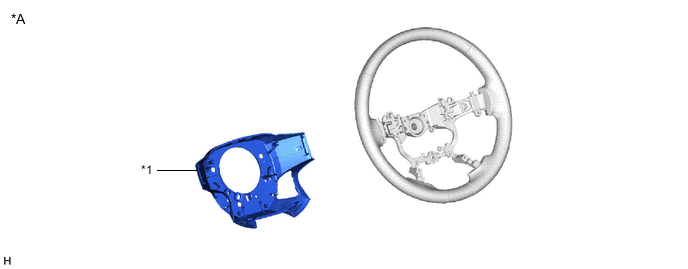

ILLUSTRATION
| *A | w/o Steering Heater | - | - |
| *1 | LOWER STEERING WHEEL BOSS COVER | - | - |
