HEATED STEERING WHEEL SYSTEM PARTS LOCATION
ILLUSTRATION

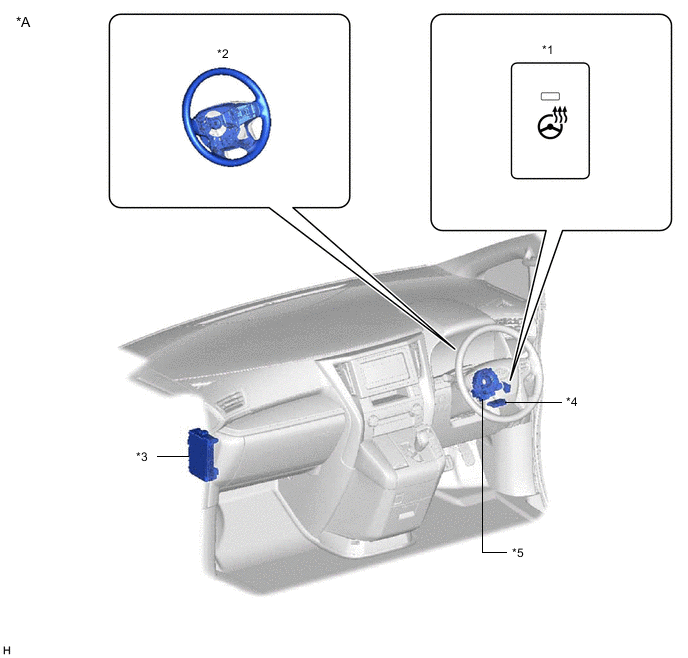

| *A | for LHD | - | - |
| *1 | STEERING HEATER SWITCH | *2 | STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 1 FUSE |
*4 | STEERING WHEEL HEATER CONTROL ASSEMBLY |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | - | - |
ILLUSTRATION

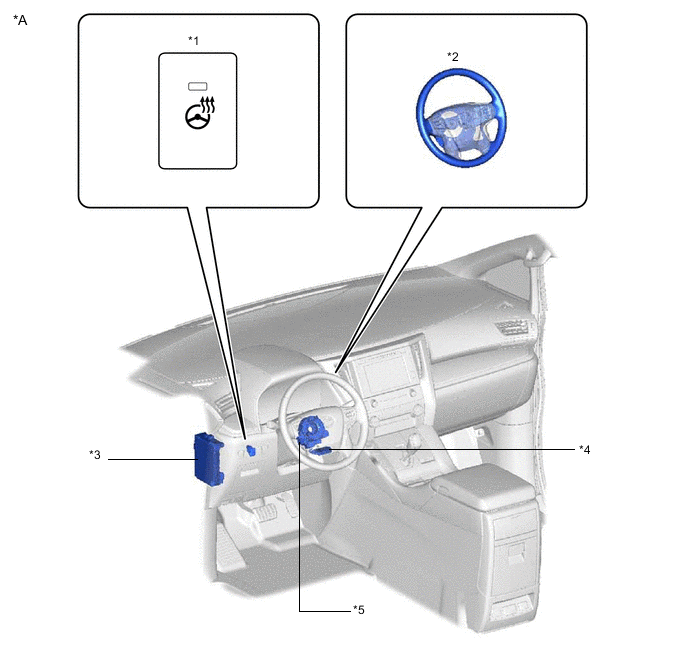

| *A | for RHD | - | - |
| *1 | STEERING HEATER SWITCH | *2 | STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 1 FUSE |
*4 | STEERING WHEEL HEATER CONTROL ASSEMBLY |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | - | - |
ILLUSTRATION

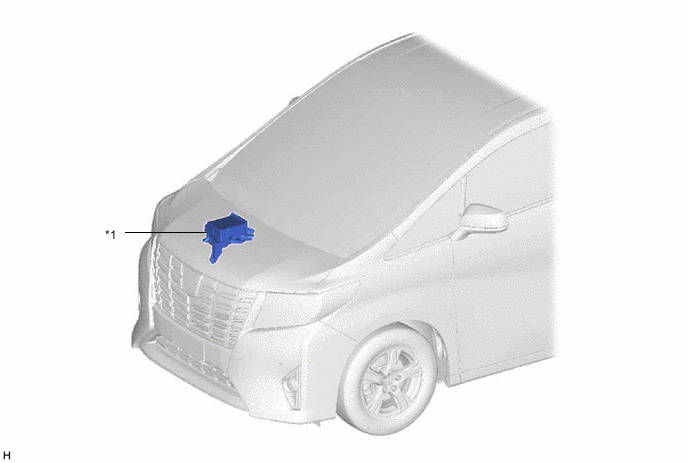

| *1 | NO. 2 ENGINE ROOM RELAY BLOCK - STRG HTR RELAY (STEERING HEATER RELAY) - STRG HTR FUSE |
- | - |
