STEERING LOCK SYSTEM PARTS LOCATION
ILLUSTRATION

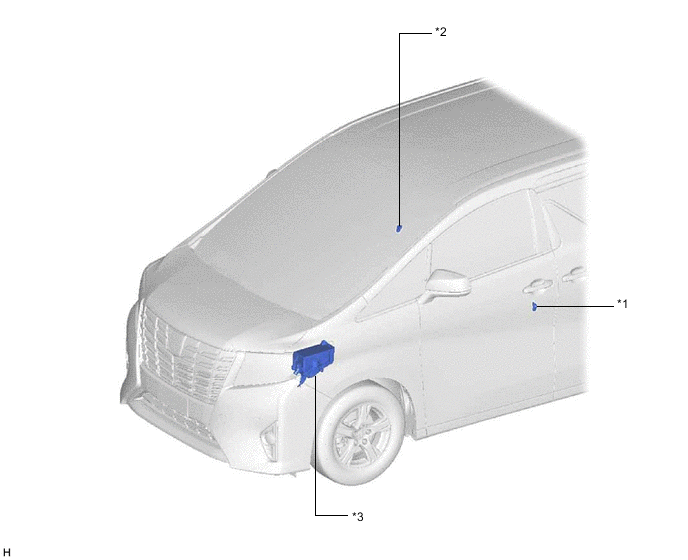

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK - IG2 RELAY - IG2-MAIN FUSE |
- |
ILLUSTRATION

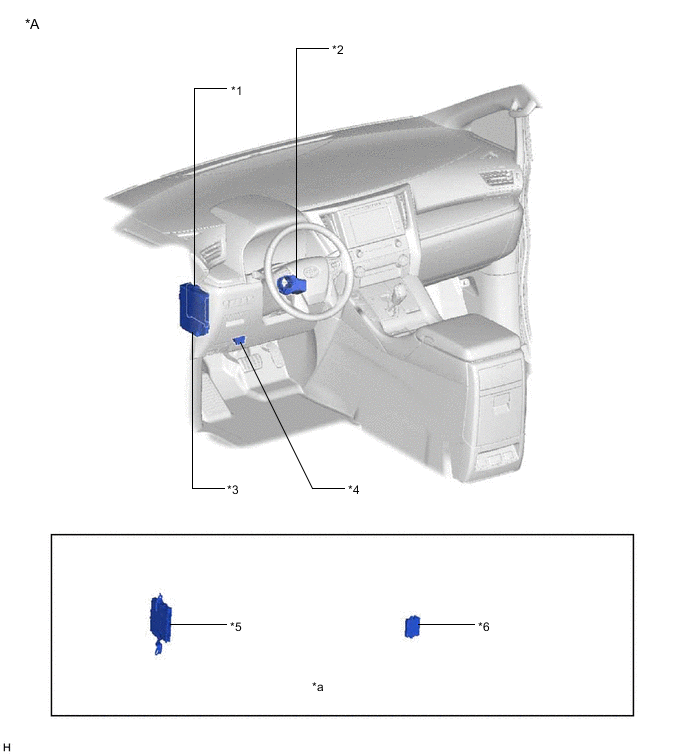

| *A | for LHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) |
| *3 | JUNCTION BLOCK ASSEMBLY LH - STRG LOCK FUSE - IG2 NO. 3 FUSE |
*4 | DLC3 |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |
ILLUSTRATION

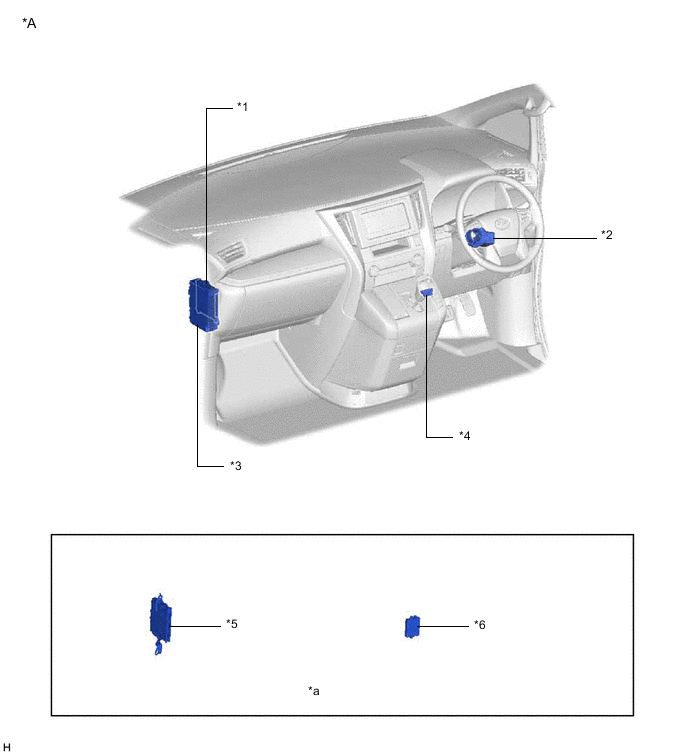

| *A | for RHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) |
| *3 | JUNCTION BLOCK ASSEMBLY LH - STRG LOCK FUSE - IG2 NO. 3 FUSE |
*4 | DLC3 |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |
