POWER STEERING SYSTEM PARTS LOCATION

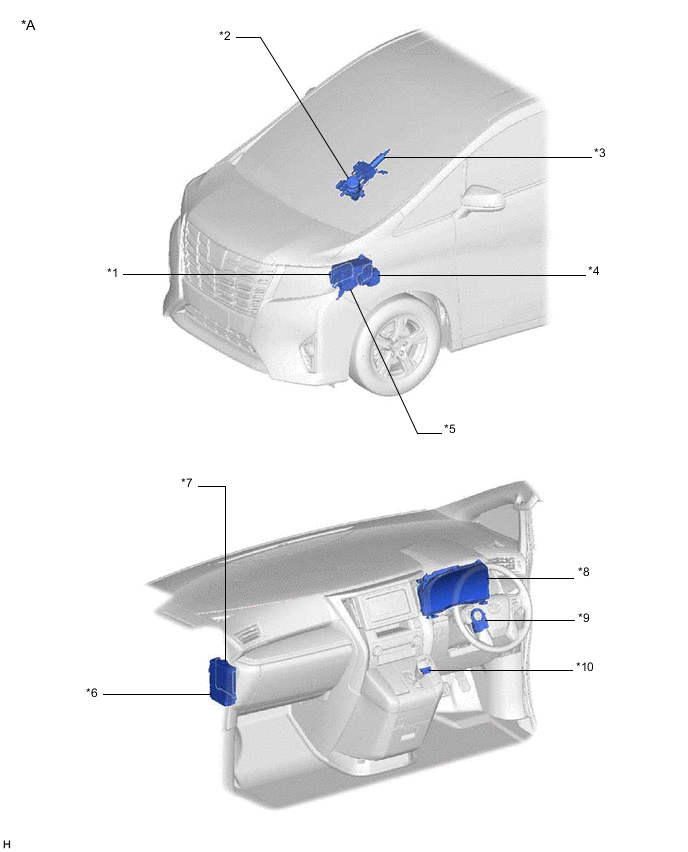

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | ECM | *2 | POWER STEERING ECU ASSEMBLY - POWER STEERING MOTOR |
| *3 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY - TORQUE SENSOR |
*4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK - EPS FUSE |
*6 | DLC3 |
| *7 | INSTRUMENT JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 7 FUSE - IG1 NO. 1 RELAY |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | COMBINATION METER ASSEMBLY - EPS WARNING LIGHT |
*10 | STEERING SENSOR |

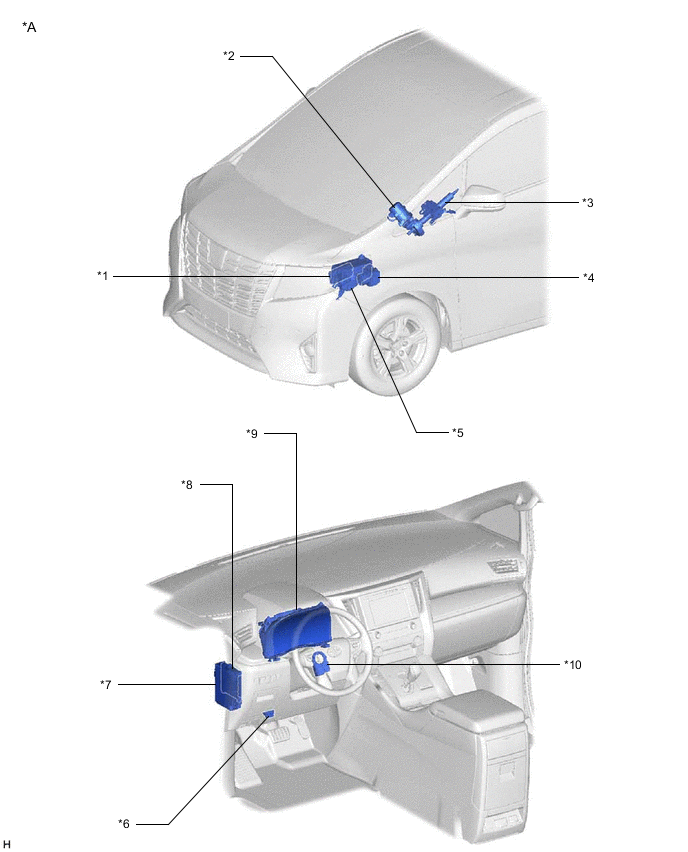

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | ECM | *2 | POWER STEERING ECU ASSEMBLY - POWER STEERING MOTOR ASSEMBLY |
| *3 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY - TORQUE SENSOR |
*4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK - EPS FUSE |
*6 | INSTRUMENT JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 7 FUSE (w/o Stop and Start System) - IG1 NO. 1 RELAY (w/o Stop and Start System) |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | COMBINATION METER ASSEMBLY - EPS WARNING LIGHT |
| *9 | STEERING SENSOR | *10 | DLC3 |
