MAIN BODY ECU INSTALLATION

PROCEDURE


  1. PRECAUTION

    Note


    • Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.

    • After the main body ECU (multiplex network body ECU) has been replaced, the automatic light control system will not operate until the engine is started.

  2. INSTALL MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

    Note


    • Make sure that the connecting surfaces are free of foreign matter.

    • Do not touch the main body ECU (multiplex network body ECU) connector.

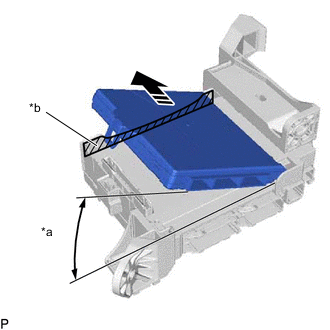

    1. B006LK7C01
      *a 20° or more
      *b Housing Sidewall
      B006N8A Set in this Direction

      Set the main body ECU (multiplex network body ECU) to the position where the guide of the main body ECU (multiplex network body ECU) contacts the housing sidewall of the junction block assembly LH as shown in the illustration.

      Tech Tips

      Make sure to keep the angle at 20° or more as shown in the illustration.

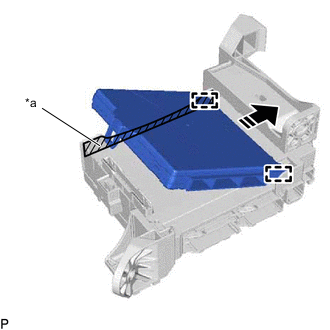

    2. B006OUGC01
      *a Housing Sidewall
      B006N8A Slide in this Direction

      Slide the main body ECU (multiplex network body ECU) along the housing sidewall as shown in the illustration and engage the 2 guides.

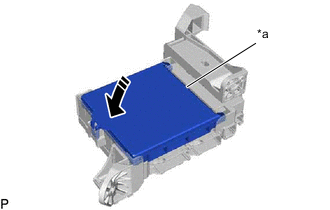

    3. B006M0LC01
      *a Side A
      B006N8A Install in this Direction

      While keeping the main body ECU (multiplex network body ECU) in contact with side A of the junction block assembly LH (axis of rotation), lower it as shown in the illustration.

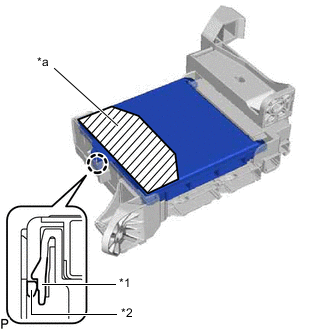

    4. B006QWVC01
      *1 Junction block assembly LH
      *2 Main Body ECU (Multiplex Network Body ECU)
      *a Push Area

      Press the push area until the claw engages to install the main body ECU (multiplex network body ECU).

      Note


      • Make sure to press only the push area.

      • Confirm the engagement of the main body ECU (multiplex network body ECU) and junction block assembly LH by listening for the click sound of the lock engaging.

      Tech Tips

      If a click sound cannot be heard, visually check the engagement of the lock. The engagement can also be confirmed if the main body ECU (multiplex network body ECU) and junction block assembly LH are flush.

  3. INSTALL JUNCTION BLOCK ASSEMBLY LH WITH MAIN BODY ECU (for LHD)

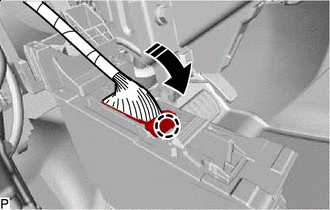

    1. B006L5JC02
      B006N8A Install in this Direction

      Connect the connector and push down the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

    2. w/ Connector Lock:

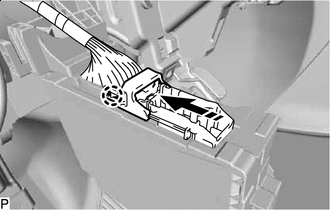

      1. B006RA5C02
        B006N8A Install in this Direction

        Slide the connector lock to engage the claw as shown in the illustration.

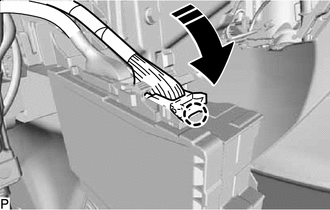

    3. B006OC4C02
      B006N8A Install in this Direction

      Connect the connector and push down the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

    4. Engage the 2 claws to connect the junction block assembly LH with main body ECU.

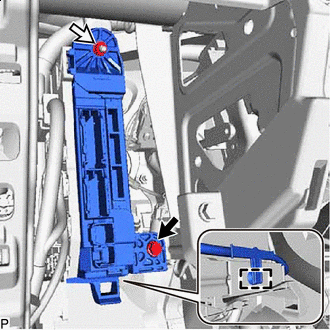

    5. B006Q6PC02
      B006QOD Bolt
      B006LKF Nut

      Install the junction block assembly LH with main body ECU with the bolt and nut.

      Torque:
      Bolt
      13 N*m  { 133 kgf*cm, 10 ft.*lbf }
      Nut
      12.5 N*m  { 127 kgf*cm, 9 ft.*lbf }

    6. Engage the clamp.

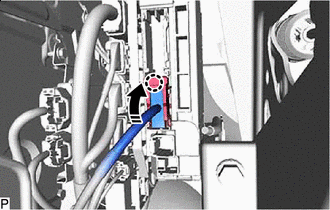

    7. B006NKQC02
      B006N8A Install in this Direction

      Connect the connector and raise the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

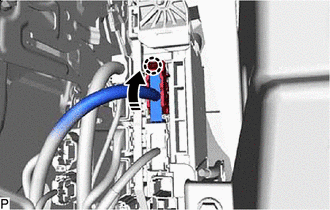

    8. B006P4VC02
      B006N8A Install in this Direction

      Connect the connector and raise the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

    9. Connect each connector.

      Note

      Be sure to connect each connector securely.

  4. INSTALL JUNCTION BLOCK ASSEMBLY LH WITH MAIN BODY ECU (for RHD)

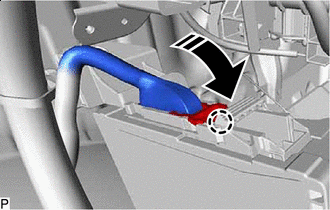

    1. B006RL4C06
      B006N8A Install in this Direction

      Connect the connector and push down the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

    2. w/ Connector Lock:

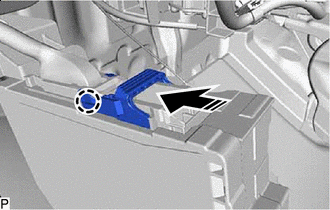

      1. B006NWYC06
        B006N8A Install in this Direction

        Slide the connector lock to engage the claw as shown in the illustration.

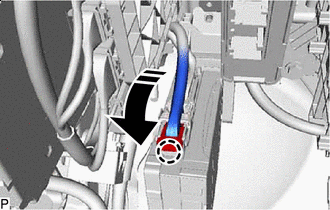

    3. B006NRZC05
      B006N8A Install in this Direction

      Connect the connector and push down the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

    4. Engage the 2 claws to connect the junction block assembly LH with main body ECU.

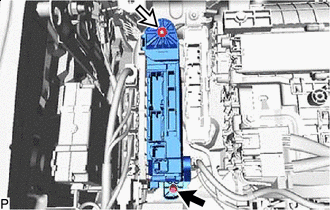

    5. B006Q0KC03
      B006QOD Bolt
      B006LKF Nut

      Install the junction block assembly LH with main body ECU with the bolt and nut.

      Torque:
      Bolt
      13 N*m  { 133 kgf*cm, 10 ft.*lbf }
      Nut
      12.5 N*m  { 127 kgf*cm, 9 ft.*lbf }

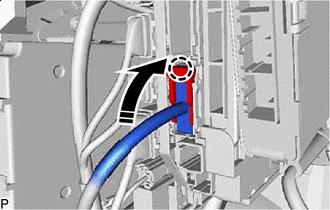

    6. B006P3IC05
      B006N8A Install in this Direction

      Connect the connector and raise the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

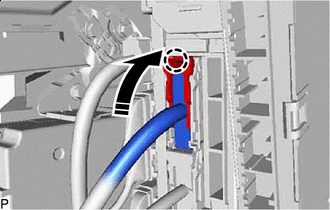

    7. B006M6VC05
      B006N8A Install in this Direction

      Connect the connector and raise the lock lever to engage the claw and lock the connector as shown in the illustration.

      Note

      Be sure to connect the connector securely.

    8. Connect each connector.

      Note

      Be sure to connect each connector securely.

    9. Engage the clamp.

  5. INSTALL LOWER INSTRUMENT PANEL (for RHD)

    Click here

  6. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for RHD)

    Click here

  7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for RHD)

    Click here

  8. INSTALL COWL SIDE TRIM BOARD LH (for RHD)

    Click here

  9. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for RHD)

    Click here

  10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (for RHD)

    Click here

  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for RHD)

    for Separate Console Box Type: Click here

  12. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (for RHD)

    for Separate Console Box Type: Click here

  13. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL (for RHD)

    Click here

  14. INSTALL CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL (for RHD)

    for Separate Console Box Type: Click here

  15. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL (for RHD)

    for Separate Console Box Type: Click here

  16. INSTALL CONSOLE BOX ASSEMBLY (for RHD)

    for Integrated Console Box Type: Click here

  17. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY (for LHD)

    Click here

  18. INSTALL COWL SIDE TRIM BOARD LH (for LHD)

    Click here

  19. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for LHD)

    Click here

  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for RHD)

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here
