REAR STABILIZER BAR COMPONENTS

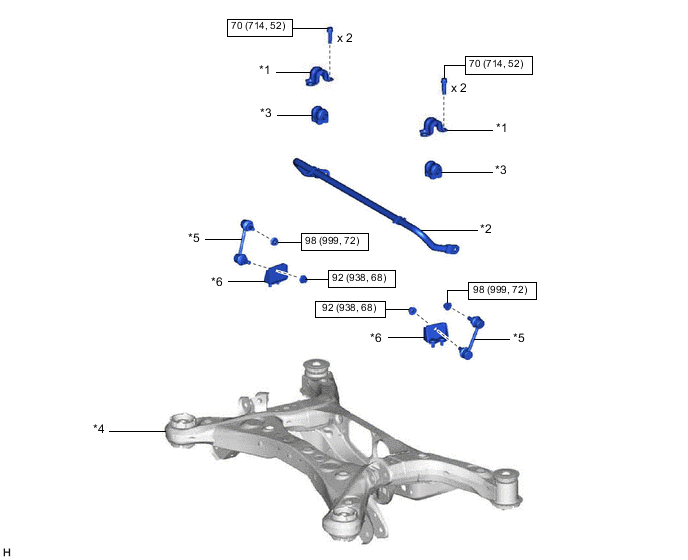

ILLUSTRATION
| *1 | REAR NO. 1 STABILIZER BAR BRACKET | *2 | REAR STABILIZER BAR |
| *3 | REAR STABILIZER BUSHING | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *5 | STABILIZER LINK SUB-ASSEMBLY | *6 | REAR LOWER STABILIZER BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
