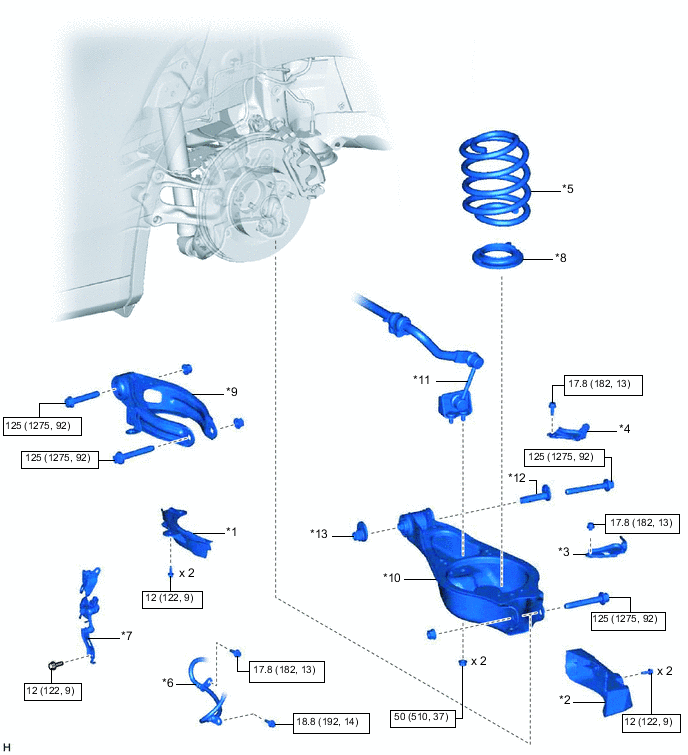

REAR LOWER ARM COMPONENTS
ILLUSTRATION
| *1 | LOWER NO. 1 CONTROL ARM COVER | *2 | LOWER NO. 2 CONTROL ARM COVER |
| *3 | NO. 5 FLEXIBLE HOSE BRACKET | *4 | NO. 6 FLEXIBLE HOSE BRACKET |
| *5 | REAR COIL SPRING | *6 | REAR FLEXIBLE HOSE |
| *7 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY | *8 | REAR LOWER COIL SPRING INSULATOR |
| *9 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *10 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *11 | STABILIZER LINK SUB-ASSEMBLY | *12 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *13 | REAR NO. 2 SUSPENSION TOE ADJUST PLATE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
