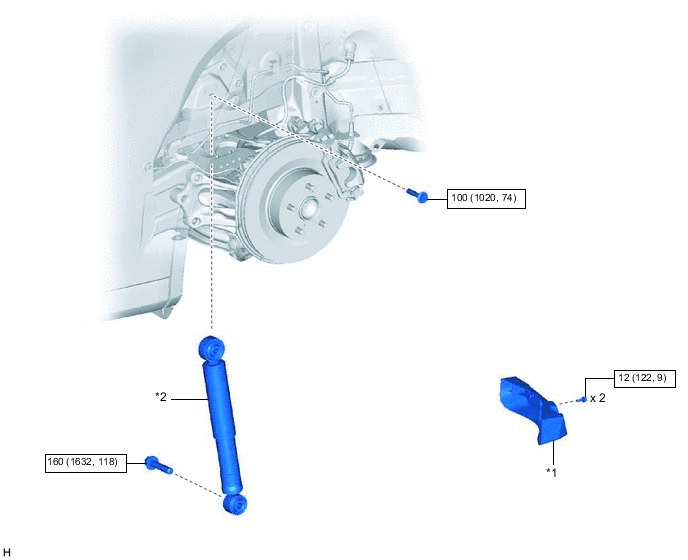

REAR SHOCK ABSORBER COMPONENTS
ILLUSTRATION
| *1 | LOWER NO. 2 CONTROL ARM COVER | *2 | REAR SHOCK ABSORBER ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | LOWER NO. 2 CONTROL ARM COVER | *2 | REAR SHOCK ABSORBER ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
