FRONT SUSPENSION MEMBER COMPONENTS

ILLUSTRATION

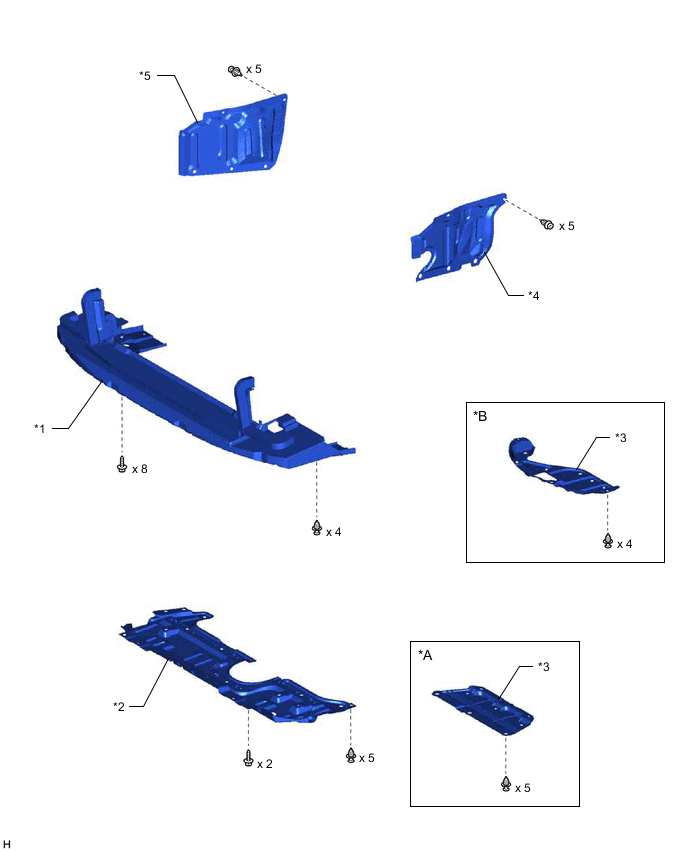

B006OGUC02
*A for Front Side *B for Rear Side
*1 FRONT LOWER BUMPER ABSORBER *2 NO. 1 ENGINE UNDER COVER
*3 NO. 2 ENGINE UNDER COVER *4 REAR ENGINE UNDER COVER LH
*5 REAR ENGINE UNDER COVER RH - -

ILLUSTRATION

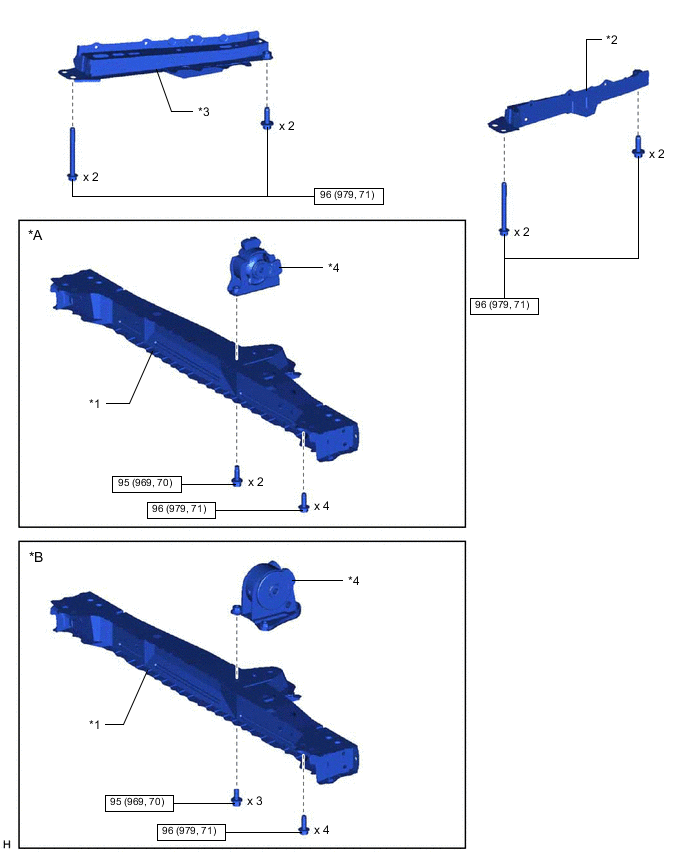

B006KPZC02
*A for 2AR-FE *B for 2GR-FE
*1 FRONT CROSS MEMBER SUB-ASSEMBLY *2 FRONT SUSPENSION MEMBER REINFORCEMENT LH
*3 FRONT SUSPENSION MEMBER REINFORCEMENT RH *4 FRONT ENGINE MOUNTING INSULATOR
B006NAX N*m (kgf*cm, ft.*lbf): Specified torque - -

ILLUSTRATION

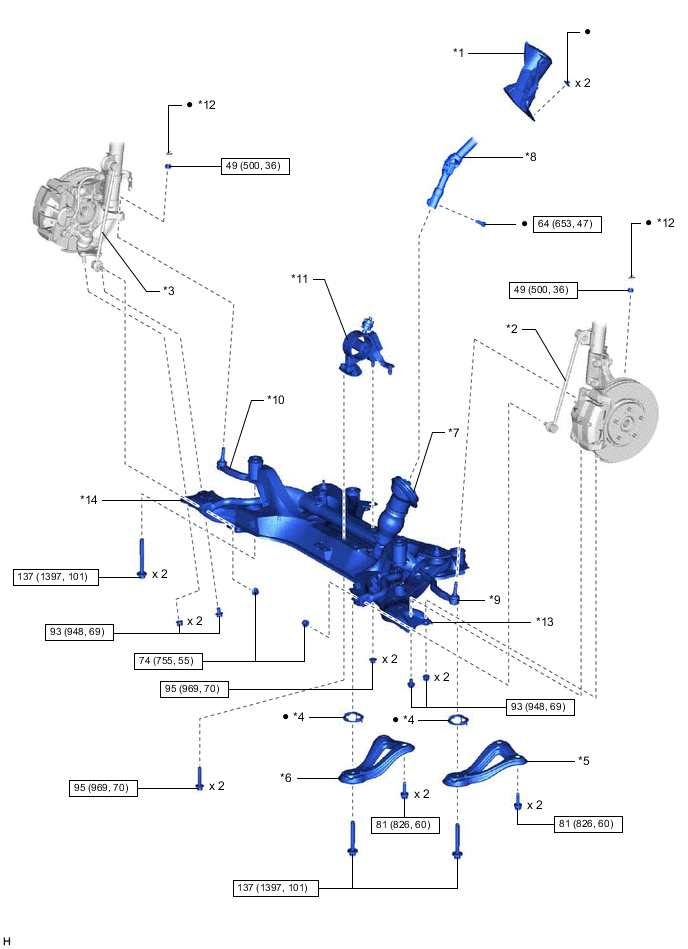

B006LVAC01
*1 COLUMN HOLE COVER SILENCER SHEET *2 FRONT STABILIZER LINK ASSEMBLY LH
*3 FRONT STABILIZER LINK ASSEMBLY RH *4 FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER
*5 FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH *6 FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH
*7 NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY *8 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*9 TIE ROD END SUB-ASSEMBLY LH *10 TIE ROD END SUB-ASSEMBLY RH
*11 REAR ENGINE MOUNTING INSULATOR *12 COTTER PIN
*13 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH *14 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
B006NAX N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

ILLUSTRATION

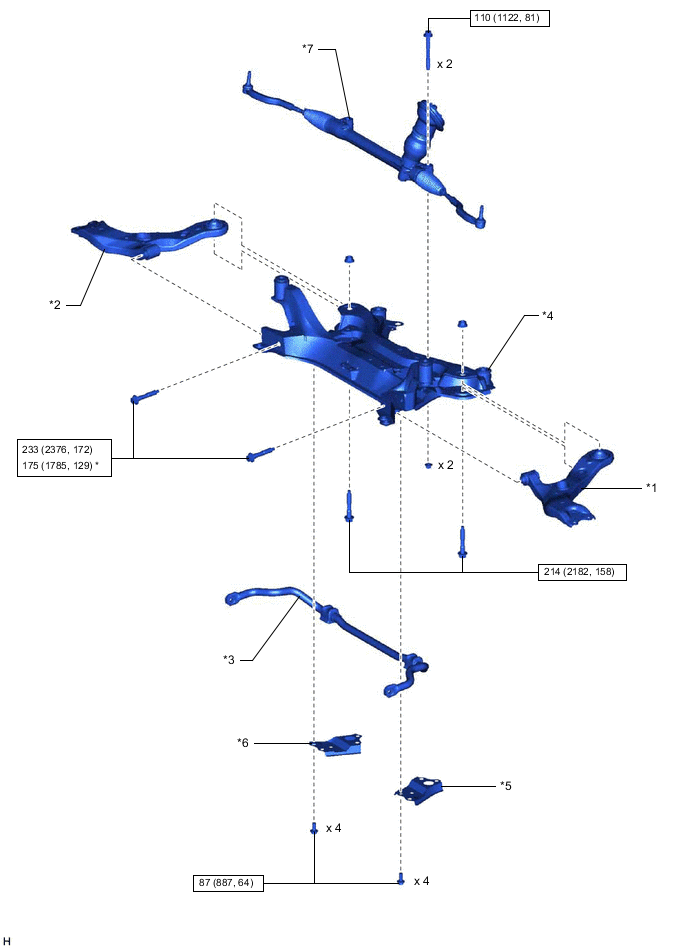

B006LCUC01
*1 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH *2 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
*3 FRONT STABILIZER BAR *4 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
*5 FRONT SUSPENSION MEMBER FRONT BRACE LH *6 FRONT SUSPENSION MEMBER FRONT BRACE RH
*7 STEERING LINK ASSEMBLY - -
B006NAX N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST

ILLUSTRATION

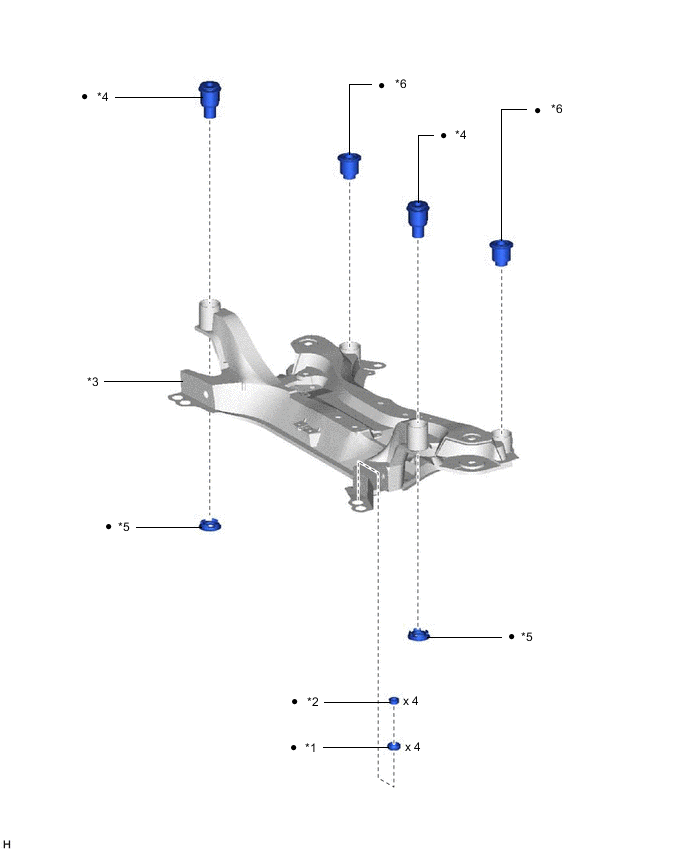

B006O4CC02
*1 FRONT LOWER SUSPENSION MEMBER MOUNTING CUSHION *2 FRONT LOWER SUSPENSION MEMBER MOUNTING SPACER
*3 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *4 FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION
*5 FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER *6 FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION
● Non-reusable part - -
