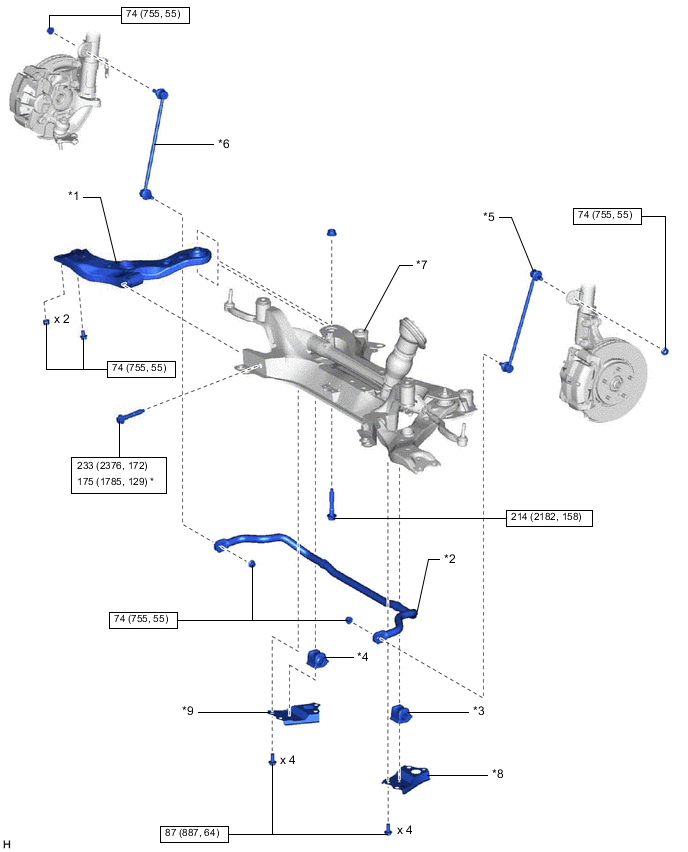

FRONT STABILIZER BAR COMPONENTS
ILLUSTRATION
| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH | *2 | FRONT STABILIZER BAR |
| *3 | FRONT STABILIZER BAR BUSHING LH | *4 | FRONT STABILIZER BAR BUSHING RH |
| *5 | FRONT STABILIZER LINK ASSEMBLY LH | *6 | FRONT STABILIZER LINK ASSEMBLY RH |
| *7 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *8 | FRONT SUSPENSION MEMBER FRONT BRACE LH |
| *9 | FRONT SUSPENSION MEMBER FRONT BRACE RH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | Non-reusable part |
