FRONT SHOCK ABSORBER COMPONENTS

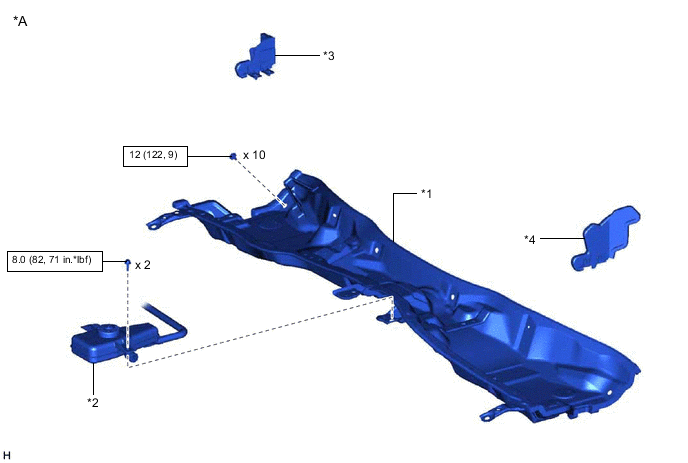

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
| *3 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *4 | NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
| *3 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *4 | NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

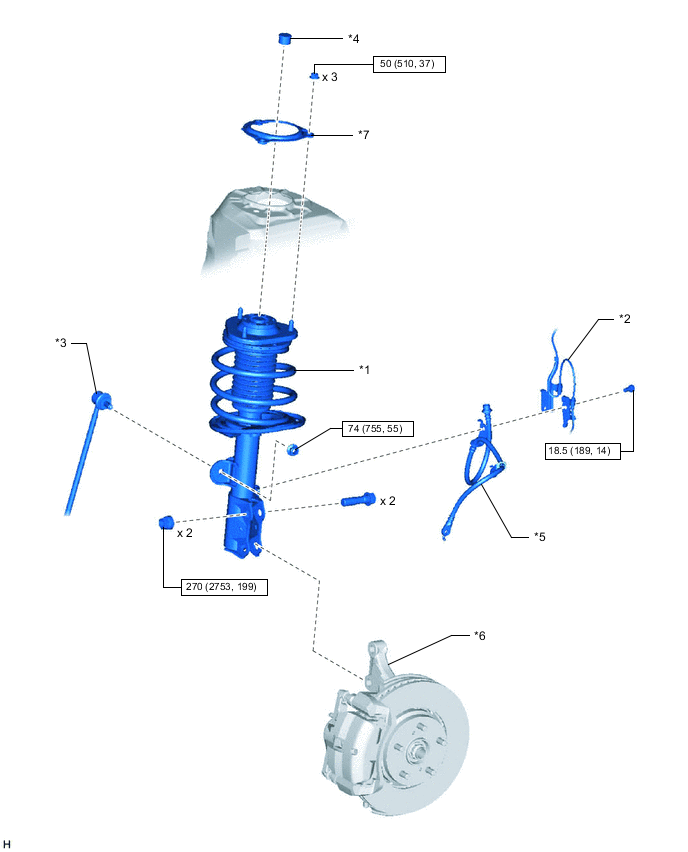

ILLUSTRATION
| *1 | FRONT SHOCK ABSORBER WITH COIL SPRING | *2 | FRONT SPEED SENSOR |
| *3 | FRONT STABILIZER LINK ASSEMBLY | *4 | FRONT SUSPENSION SUPPORT DUST COVER |
| *5 | FRONT FLEXIBLE HOSE | *6 | STEERING KNUCKLE |
| *7 | FRONT SUSPENSION SUPPORT GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

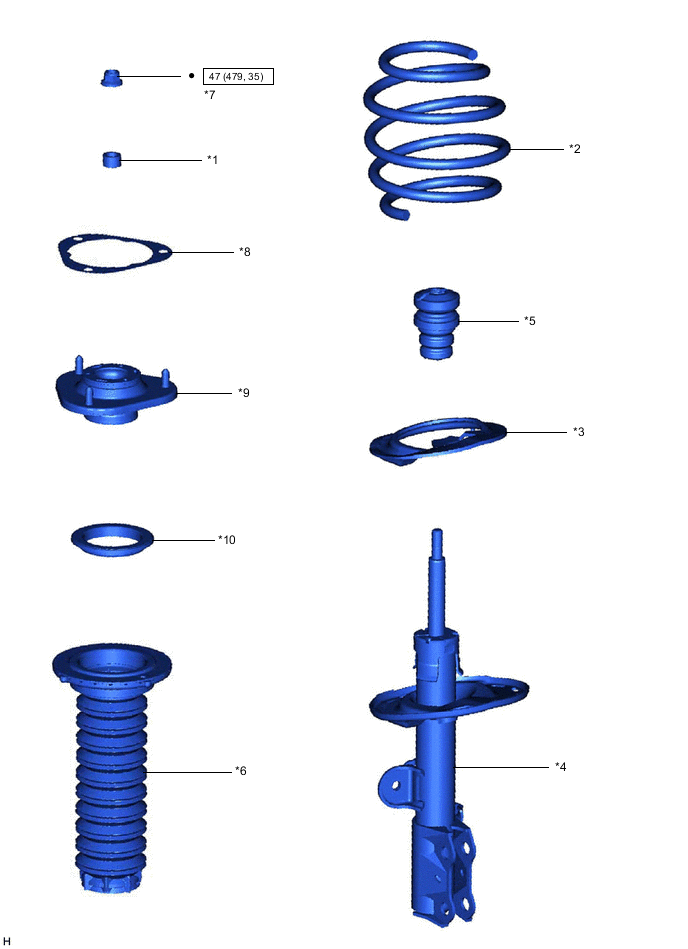

ILLUSTRATION
| *1 | COLLAR | *2 | FRONT COIL SPRING |
| *3 | FRONT LOWER COIL SPRING INSULATOR | *4 | FRONT SHOCK ABSORBER ASSEMBLY |
| *5 | FRONT SPRING BUMPER | *6 | FRONT SPRING SEAT SUB-ASSEMBLY WITH INSULATOR |
| *7 | FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT | *8 | FRONT SUSPENSION SUPPORT PLATE |
| *9 | FRONT SUSPENSION SUPPORT SUB-ASSEMBLY | *10 | STRUT MOUNTING BEARING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
