FRONT LOWER SUSPENSION ARM INSTALLATION

PROCEDURE


  1. TEMPORARILY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH (for 2AR-FE)


    1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  2. TEMPORARILY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (for 2AR-FE)

    Tech Tips

    Perform the same procedure as for the LH side.

  3. INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH (for 2GR-FKS)

    Tech Tips

    As the bolt on the front of the front lower No. 1 suspension arm sub-assembly LH cannot be fully tightened on the vehicle, fully tighten the bolt before the front suspension crossmember sub-assembly is installed to the vehicle.


    1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

    2. Position the front suspension crossmember sub-assembly on a level surface.

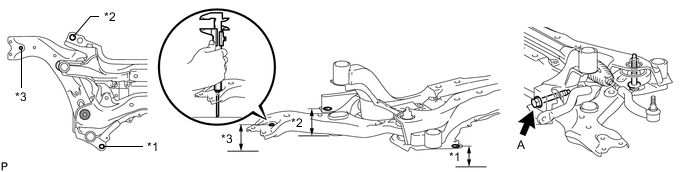

    3. Using a vernier caliper, measure height *1 and *2.

      B006PO6C01

      Note

      Perform this procedure after installing the front suspension member front brace LH and front suspension member front brace RH.

    4. Check that height *2 is lower than *1 by 10 mm.

    5. Position the front lower No. 1 suspension arm sub-assembly LH so that height *3 is the same as *1.

    6. Tighten the bolt (A).

      Torque:
      233 N*m  { 2376 kgf*cm, 172 ft.*lbf }

  4. TEMPORARILY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (for 2GR-FKS)


    1. Temporarily install the front lower No. 1 suspension arm sub-assembly RH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  5. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Click here

  6. FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH (for 2AR-FE)

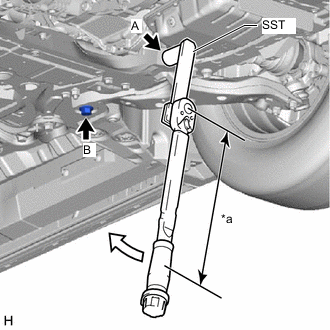

    1. B006NJQC03
      *a Torque Wrench Fulcrum Length
      B006LKF Turn

      Using SST, fully tighten the bolt (A).

      SST
      09961-01270
      Torque:
      Specified tightening torque
      233 N*m  { 2376 kgf*cm, 172 ft.*lbf }

      Note

      This torque value is effective when SST is parallel to the torque wrench.

      Tech Tips


      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click here

      • When using SST (fulcrum length of 200 mm (7.87 in.)) + torque wrench (fulcrum length of 600 mm (1.97 ft.)):

        175 N*m (1785 kgf*cm, 129 ft.*lbf)

    2. Fully tighten the bolt (B).

      Torque:
      214 N*m  { 2182 kgf*cm, 158 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  7. FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (for 2AR-FE)

    Tech Tips

    Perform the same procedure as for the LH side.

  8. FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH (for 2GR-FKS)

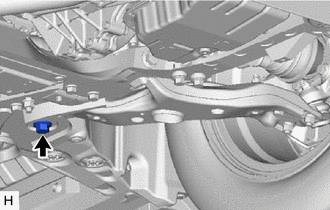

    1. B006NAK

      Fully tighten the bolt.

      Torque:
      214 N*m  { 2182 kgf*cm, 158 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  9. FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (for 2GR-FKS)

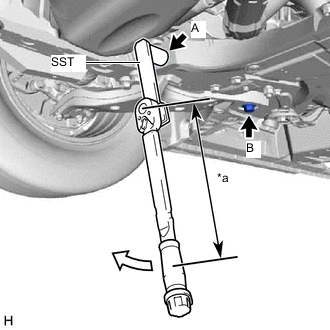

    1. B006OA7C03
      *a Torque Wrench Fulcrum Length
      B006LKF Turn

      Using SST, fully tighten the bolt (A).

      SST
      09961-01270
      Torque:
      Specified tightening torque
      233 N*m  { 2376 kgf*cm, 172 ft.*lbf }

      Note

      This torque value is effective when SST is parallel to the torque wrench.

      Tech Tips


      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click here

      • When using SST (fulcrum length of 200 mm (7.87 in.)) + torque wrench (fulcrum length of 600 mm (1.97 ft.)):

        175 N*m (1785 kgf*cm, 129 ft.*lbf)

    2. Fully tighten the bolt (B).

      Torque:
      214 N*m  { 2182 kgf*cm, 158 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  10. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Click here

  11. PERFORM INITIALIZATION


    1. Initialization of the headlight ECU sub-assembly LH.

      Click here

  12. ADJUST FOG LIGHT AIMING

    Click here

  13. ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Click here
