TIRE PRESSURE WARNING SYSTEM PARTS LOCATION

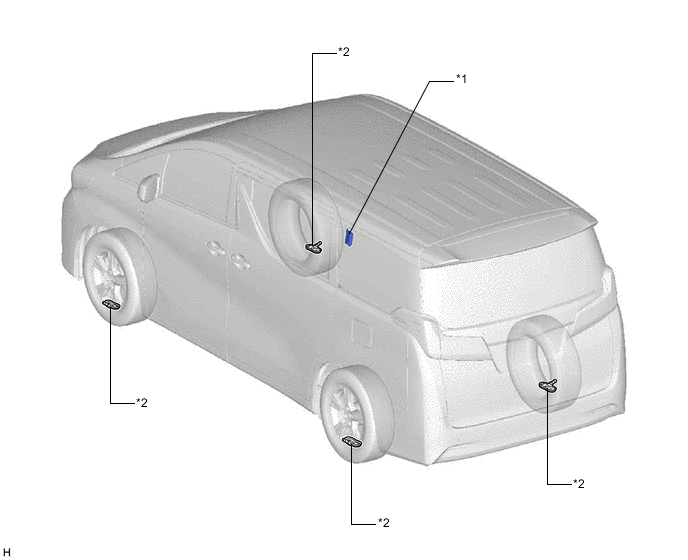

ILLUSTRATION
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER |

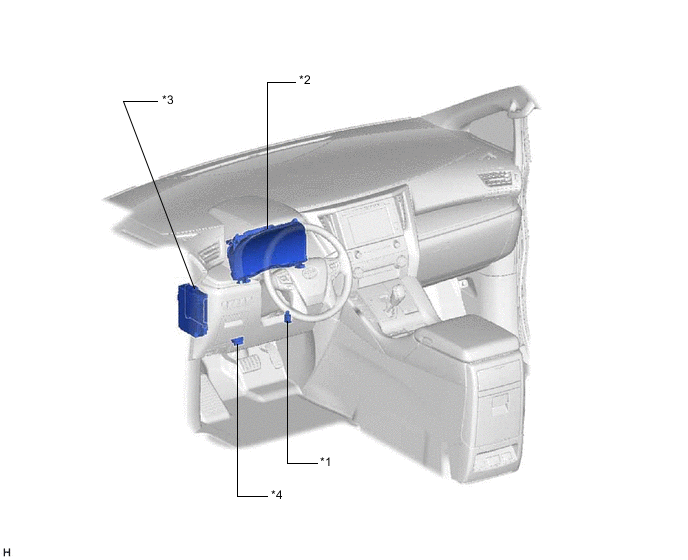

ILLUSTRATION
| *1 | TIRE PRESSURE WARNING RESET SWITCH | *2 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | DLC3 |
