FUEL PUMP DISASSEMBLY

CAUTION / NOTICE / HINT

Note


  • Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

  • When replacing the fuel filter, replace it together with the fuel suction plate sub-assembly.

B006QAPC01
*a Tube

PROCEDURE


  1. REMOVE FUEL SENDER GAUGE ASSEMBLY

    Click here

  2. REMOVE FUEL FILTER

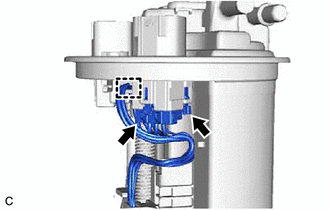

    1. B006NVN

      Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.

    2. Disconnect the 2 fuel pump harness connectors.

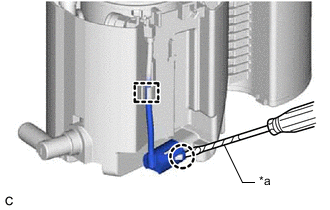

    3. B006PFFC01
      *a Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the claw and disconnect the fuel pump filter hose.

    4. Disengage the clamp to disconnect the fuel pump filter hose from the fuel sub-tank.

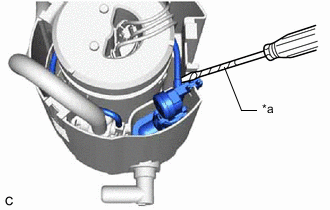

    5. B006MGBC01
      *a Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, remove the jet pump from the fuel sub-tank.

      Note


      • Do not damage the fuel sub-tank, fuel filter and jet pump.

      • Pull out the jet pump carefully because the O-ring is firmly installed between the jet pump and fuel sub-tank.

    6. B006PCCC01
      *1 O-ring
      *a Jet Pump

      Remove the O-ring from the jet pump.

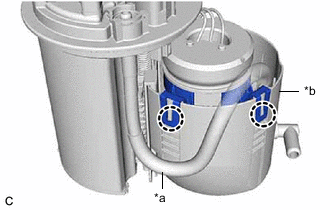

    7. B006P62C01
      *a Tube
      *b Fuel Sub-tank

      Disengage the 2 claws and remove the fuel filter from the fuel sub-tank.

      Note

      Do not do anything which may separate the tube from either the fuel suction plate sub-assembly or fuel filter, such as applying excessive force to the tube.

      Click here

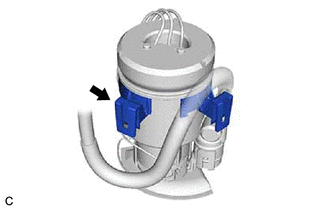

    8. B006OYL

      Remove the No. 1 fuel suction support from the fuel filter.

  3. REMOVE FUEL PUMP FILTER

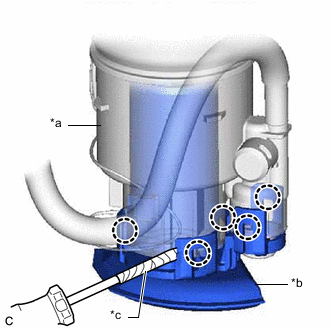

    1. B006Q1VC01
      *a Fuel Filter
      *b Fuel Pump Filter
      *c Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws, and remove the fuel pump filter from the fuel filter.

      Note


      • Do not damage the fuel filter.

      • Do not do anything which may separate the tube from either the fuel suction plate sub-assembly or fuel filter, such as applying excessive force to the tube.

        Click here

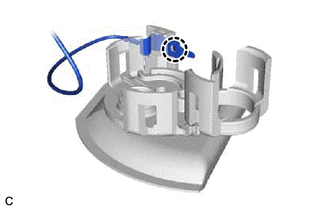

    2. B006R5M

      Disengage the claw to disconnect the fuel pump harness from the fuel pump filter.

  4. REMOVE FUEL PUMP

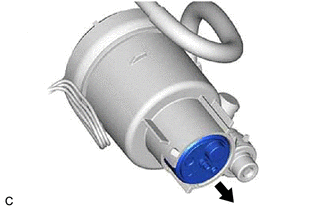

    1. B006Q76

      Remove the fuel pump from the fuel filter.

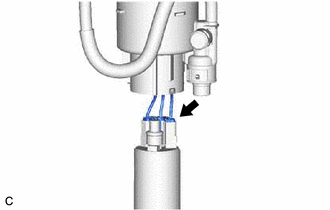

    2. B006QIQ

      Disconnect the fuel pump harness connector to remove the fuel pump harness from the fuel pump.

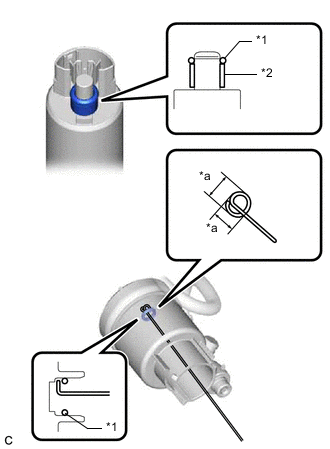

    3. B006PYMC01
      *1 O-ring
      *2 Fuel Pump Spacer
      *a 5.0 mm (0.197 in.)

      Remove the O-ring and fuel pump spacer from the fuel pump.

      Note

      Be careful not to damage the sealing surface.

      Tech Tips

      If the O-ring still remains in the fuel filter, remove it using a wire tip (1 mm diameter) that is formed as shown in the illustration.
