The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the fuel injector assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effects/Inoperative when not Performed | Link |
|---|---|---|---|
| Battery terminal is disconnected/reconnected | Drive the vehicle until stop and start control is permitted (approximately 15 to 40 minutes) | Stop and start system | |
| Memorize steering angle neutral point | Panoramic view monitor system | ||
| Initialize back door lock | Power door lock control system | ||
| Initialize servo motor | Air conditioning system | ||
| Reset slide door close position | Power slide door system | ||
| Reset back door close position | Power back door system | ||
| Replacement of fuel injector assembly | Inspection After Repair |
|
|
| Replacement of throttle body with motor assembly | |||
| Cleaning the deposits from the throttle body with motor assembly |
PROCEDURE
PRECAUTION
Note
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
DISCHARGE FUEL SYSTEM PRESSURE
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Note
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

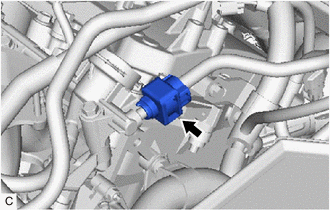

REMOVE INTAKE AIR SURGE TANK ASSEMBLY
DISCONNECT FUEL TUBE SUB-ASSEMBLY
Note
Remove any foreign matter on the fuel tube connector and fuel pipe before performing this work.

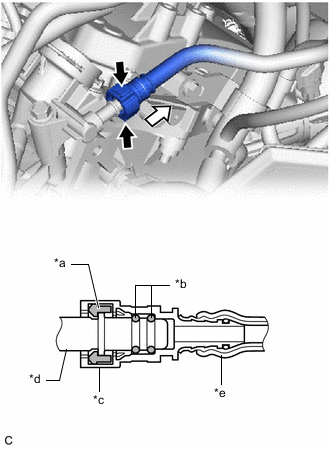

Remove the No. 2 fuel pipe clamp from the fuel tube connector.
Check that there is no foreign matter around the fuel tube connector before disconnecting it. Clean it if necessary.
| *a | Retainer |
| *b | O-ring |
| *c | Fuel Tube Connector |
| *d | Fuel Pipe |
| *e | Nylon Tube |
|
Pinch |
|
Pull |
Disconnect the fuel tube sub-assembly from the fuel delivery pipe sub-assembly.
Pinch the retainer of the fuel tube connector, and then pull the fuel tube connector off of the fuel pipe.
Note
Be sure to disconnect the fuel tube connector by hand.
If the fuel tube connector and fuel pipe are stuck, push and pull the fuel tube connector to release it. Pull the fuel tube connector off of the fuel pipe carefully.
Note
Be sure to disconnect the fuel tube connector by hand.
Do not scratch or allow any foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the pipe (fuel pipe).
Do not bend, twist, pinch or kink the nylon tube.
Check that there is no foreign matter on the sealing surfaces of the disconnected fuel lines. Clean them if necessary.
Cover the disconnected fuel pipe and fuel tube connector with plastic bags to prevent damage and contamination.
REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
Disconnect the 6 fuel injector assembly connectors.

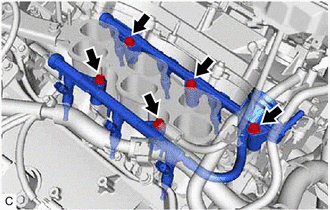

Remove the 5 bolts and fuel delivery pipe sub-assembly with the 6 fuel injector assemblies.
Note
Be careful not to drop the fuel injector assemblies when removing the fuel delivery pipe sub-assembly.

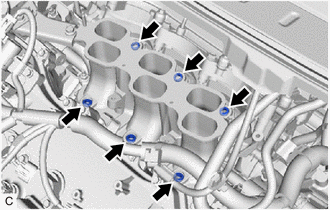

Remove the 6 injector vibration insulators from the intake manifold.
REMOVE FUEL INJECTOR ASSEMBLY
Pull the 6 fuel injector assemblies out of the fuel delivery pipe sub-assembly.
Note
If the fuel injector assemblies are to be reused, reinstall them to the same cylinder they came from.

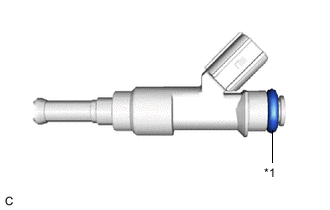

| *1 | O-ring |
Remove the O-ring from each fuel injector assembly.
Attach a tag or label with the corresponding cylinder number to each fuel injector assembly so that they can be installed to their original locations.
Note
Cover the fuel injector assemblies with plastic bags to prevent damage and contamination.
