COOLING FAN MOTOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the cooling fan motor or No. 2 cooling fan motor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effects/Inoperative when not Performed Link
Battery terminal is disconnected / reconnected Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) Stop and start system

Click here

Memorize steering angle neutral point Panoramic view monitor system

Click here

Initialize back door lock Power door lock control system

Click here

Initialize servo motor Air conditioning system

Click here

Reset slide door close position Power slide door system

Click here

Reset back door close position Power back door system

Click here

Battery Switch battery type Stop and Start System

Click here

Removal/installtaion of the front television camera assembly or the radiator grille Television camera view adjustment Panoramic view monitor system

Click here

PROCEDURE


  1. REMOVE RADIATOR ASSEMBLY

    Click here

  2. REMOVE FAN

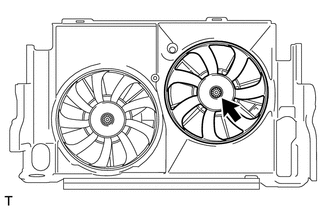

    1. B006P7P

      Remove the nut and fan.

  3. REMOVE NO. 2 FAN

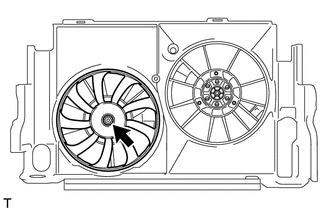

    1. B006M7G

      Remove the nut and No. 2 fan.

  4. REMOVE COOLING FAN MOTOR


    1. B006LO9

      Remove the 3 screws and cooling fan motor.

  5. REMOVE NO. 2 COOLING FAN MOTOR

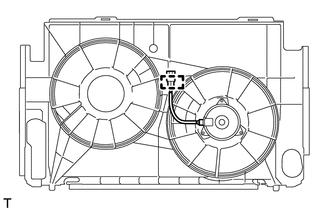

    1. B006LX2

      Disengage the clamp.

    2. B006MTG

      Remove the 3 screws and No. 2 cooling fan motor.
