REFRIGERANT LINE COMPONENTS

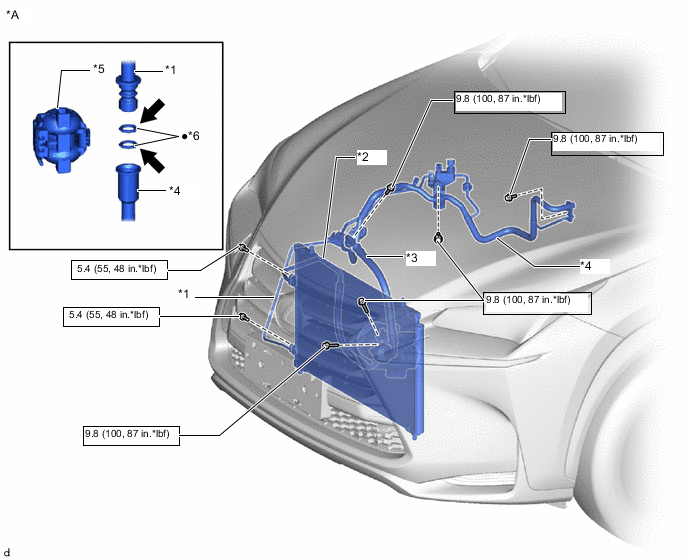

ILLUSTRATION
| *A | for 8AR-FTS, Sub-cool Accelerator | - | - |
| *1 | LIQUID TUBE SUB-ASSEMBLY | *2 | DISCHARGE HOSE SUB-ASSEMBLY |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *5 | PIPING CLAMP | *6 | O-RING |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |
ILLUSTRATION
| *A | for 8AR-FTS, except Sub-cool Accelerator | - | - |
| *1 | LIQUID PIPE SUB-ASSEMBLY | *2 | DISCHARGE HOSE SUB-ASSEMBLY |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | SUCTION PIPE SUB-ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for 3ZR-FAE | - | - |
| *1 | LIQUID TUBE SUB-ASSEMBLY | *2 | DISCHARGE HOSE SUB-ASSEMBLY |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *5 | PIPING CLAMP | *6 | O-RING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
