PANORAMIC VIEW MONITOR SYSTEM TERMINALS OF ECU


  1. PARKING ASSIST ECU

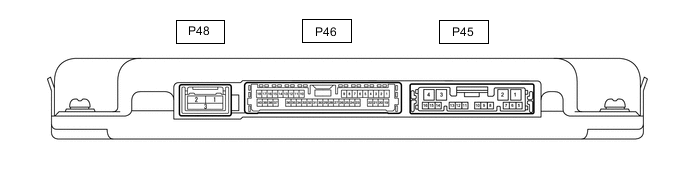

    B0057YCE04

    1. Disconnect the P45 parking assist ECU connector.

    2. Measure the voltage and resistance according to the value(s) in the table below.

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      P45-1 (+B) - P45-4 (GND1) L - W-B Power source signal Always 11 to 14 V
      P45-3 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω
      P45-3 (IG) - P45-4 (GND1) G - W-B IG power source signal Engine switch on (IG) 11 to 14 V
      Engine switch off Below 1 V
      P45-2 (ACC) - P45-4 (GND1) L - W-B ACC power source signal Engine switch on (ACC) 11 to 14 V
      Engine switch off Below 1 V

    3. Reconnect the P45 parking assist ECU connector.

    4. Measure the voltage, resistance and waveform according to the value(s) in the table below.

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      P46-29 (CV+) - P46-31 (SGND) W - Shielded Rear television camera assembly display signal input Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      P46-33 (CB+) - P46-31 (SGND) B - Shielded Power source to rear television camera Engine switch on (IG) 5.5 to 7.05 V
      P46-6 (RSW+) - P45-4 (GND1) P - W-B Terminal required by law Panoramic image being displayed 0 to 2 V
      Panoramic image not being displayed 5.5 to 7.05 V
      P45-15 (BLSW) - Body ground R - Body ground No. 2 combination switch assembly (panoramic view monitor main switch) switch signal Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) off 5.5 to 6.5 V
      Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on Below 1 V
      P46-31 (SGND) - P45-4 (GND1) Shielded - W-B Rear television camera assembly ground (shield) Always Below 1 Ω
      P46-30 (CV-) - P46-31 (SGND) R - Shielded Rear television camera assembly ground Always Below 1 Ω
      P46-34 (LCV-) - P46-11 (SGND) W - Shielded Side television camera assembly LH ground Always Below 1 Ω
      P46-10 (LCV+) - P46-17 (LGND) R - Shielded Side television camera assembly LH display signal input Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      P46-11 (SGND) - P45-4 (GND1) Shielded - W-B Side television camera assembly LH ground (shield) Always Below 1 Ω
      P46-12 (LCB+) - P46-11 (SGND) B - Shielded Power source to side television camera assembly LH Engine switch on (IG) 5.5 to 7.05 V
      P46-13 (BCV-) - P46-14 (SGND) W - Shielded Front television camera assembly ground Always Below 1 Ω
      P46-36 (BCV+) - P46-14 (SGND) R - Shielded Front television camera assembly display signal input Waveform 1: Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Waveform 2: Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      P46-14 (SGND) - P45-4 (GND1) Shielded - W-B Front television camera assembly ground (shield) Always Below 1 Ω
      P46-15 (BCB+) - P46-14 (SGND) B - Shielded Power source to front television camera Engine switch on (IG) 5.5 to 7.05 V
      P46-16 (RCV-) - P46-39 (SGND) W - Shielded Side television camera assembly RH ground Always Below 1 Ω
      P46-38 (RCV+) - P46-39 (SGND) R - Shielded Side television camera assembly RH display signal input Waveform 1: Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Waveform 2: Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      P46-39 (SGND) - P45-4 (GND1) Shielded - W-B Side television camera assembly RH ground (shield) Always Below 1 Ω
      P46-40 (RCB+) - P46-39 (SGND) B - Shielded Power source to side television camera assembly RH Engine switch on (IG) 5.5 to 7.05 V

    5. Using an oscilloscope, check the waveform.

      B0057S6C01
      *a Waveform 1 *b Waveform 2
      *c Synchronization Signal *d Video Waveform

      1. Waveform 1

        Measurement Condition
        Item Content
        Terminal No. (Symbol)

        • P46-29 (CV+) - P46-31 (SGND)

        • P46-10 (LCV+) - P46-11 (SGND)

        • P46-36 (BCV+) - P46-14 (SGND)

        • P46-38 (RCV+) - P46-39 (SGND)
        Tool Setting 200 mV/DIV., 50 μsec./DIV.
        Condition

        • Waveform 1: Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens not covered, displaying image

        • Waveform 2: Engine switch on (IG), No. 2 combination switch assembly (panoramic view monitor main switch) on, camera lens covered, blacking out screen

        Tech Tips


        • The video waveform changes according to the image sent by the television camera assembly.

        • The video waveform is constantly output when the engine switch is on (ACC).
