DRIVING SUPPORT ECU REMOVAL

PROCEDURE

1. PRECAUTION

   Note

   After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

   Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click here

3. REMOVE RADIO RECEIVER ASSEMBLY

   Click here

4. REMOVE DRIVING SUPPORT ECU ASSEMBLY

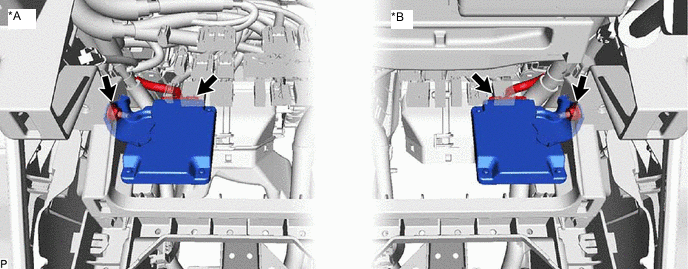

   1. Disconnect the connector.



      *A

      for LHD

      *B

      for RHD

   2. Remove the nut and driving support ECU assembly.

      Note

      Do not drop the driving support ECU assembly or subject it to strong shocks.
