LANE DEPARTURE ALERT SYSTEM(w/ Steering Control) PARTS LOCATION
ILLUSTRATION

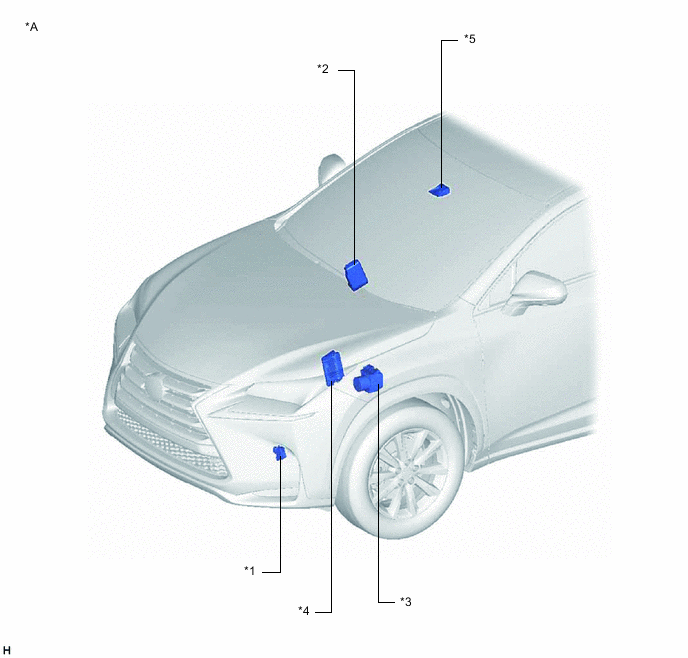

| *A | for LHD | - | - |
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | LANE DEPARTURE WARNING CAMERA |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | ECM |
| *5 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | - | - |
ILLUSTRATION

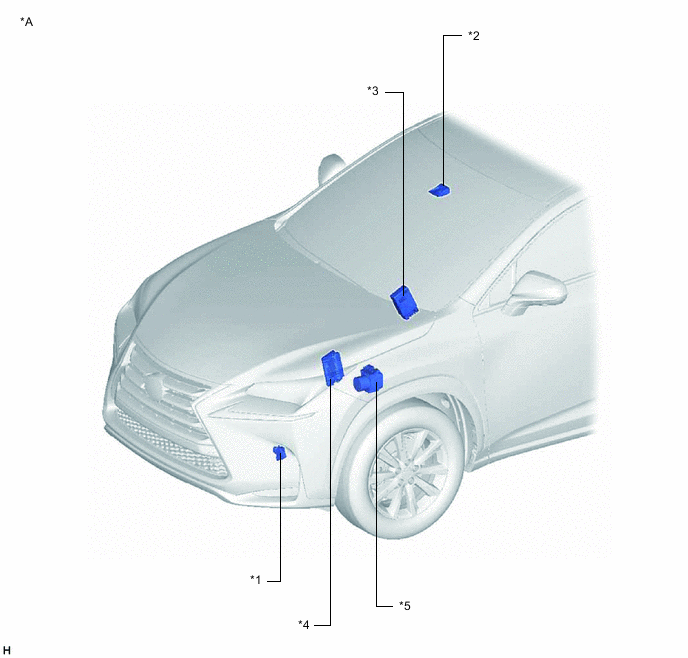

| *A | for RHD | - | - |
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *4 | ECM |
| *5 | LANE DEPARTURE WARNING CAMERA | - | - |
ILLUSTRATION
| *A | for 2WD | *B | for AWD |
| *1 | FRONT SPEED SENSOR RH | *2 | FRONT SPEED SENSOR LH |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY RH | *4 | REAR AXLE HUB AND BEARING ASSEMBLY LH |
| *5 | REAR SPEED SENSOR RH | *6 | REAR SPEED SENSOR LH |
ILLUSTRATION

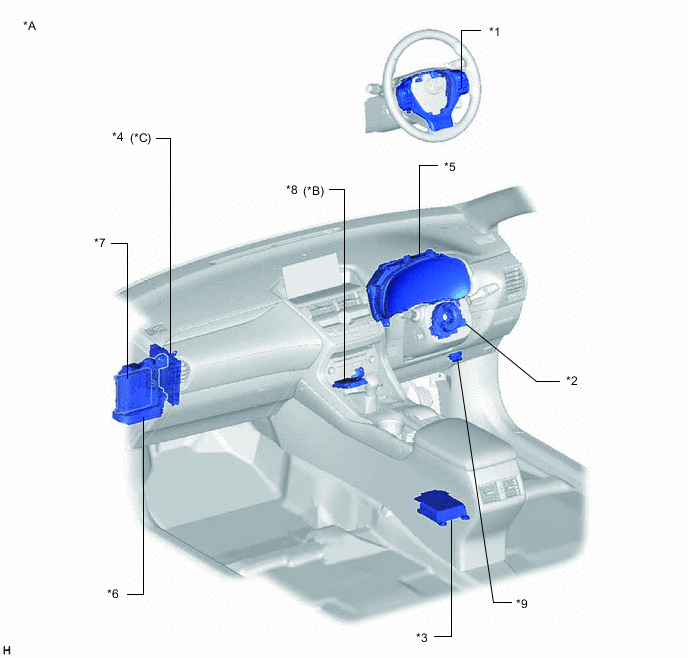

| *A | for LHD | *B | w/ Dynamic Radar Cruise Control System |
| *C | w/ Stop and Start System | - | - |
| *1 | STEERING PAD SWITCH ASSEMBLY (LANE DEPARTURE ALERT MAIN SWITCH) | *2 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *3 | AIRBAG ECU ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO.1 FUSE - ECU-IG NO.2 FUSE |
*8 | DLC3 |
| *9 | ENGINE STOP AND START ECU | - | - |
ILLUSTRATION

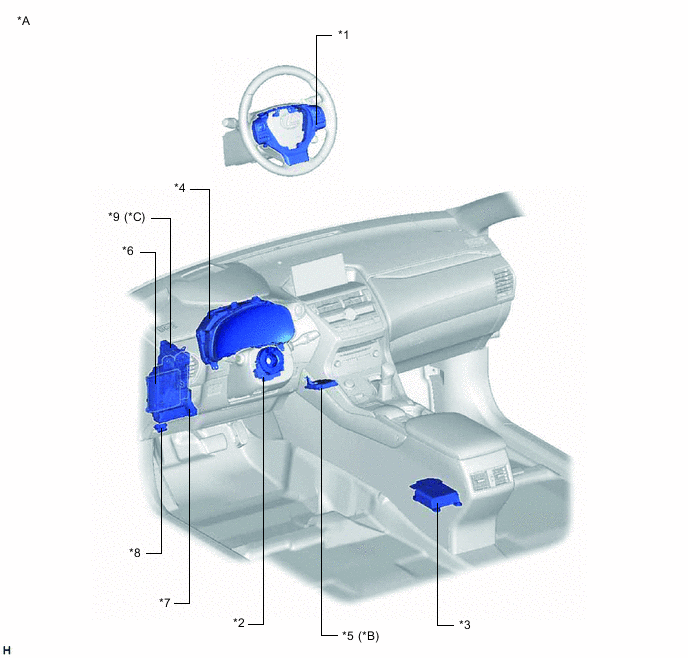

| *A | for RHD | *B | w/ Dynamic Radar Cruise Control System |
| *C | w/ Stop and Start System | - | - |
| *1 | STEERING PAD SWITCH ASSEMBLY (LANE DEPARTURE ALERT MAIN SWITCH) | *2 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *3 | AIRBAG ECU ASSEMBLY | *4 | ENGINE STOP AND START ECU |
| *5 | COMBINATION METER ASSEMBLY | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO.1 FUSE - ECU-IG NO.2 FUSE |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | DRIVING SUPPORT ECU ASSEMBLY |
| *9 | DLC3 | - | - |
