DYNAMIC RADAR CRUISE CONTROL SYSTEM PARTS LOCATION

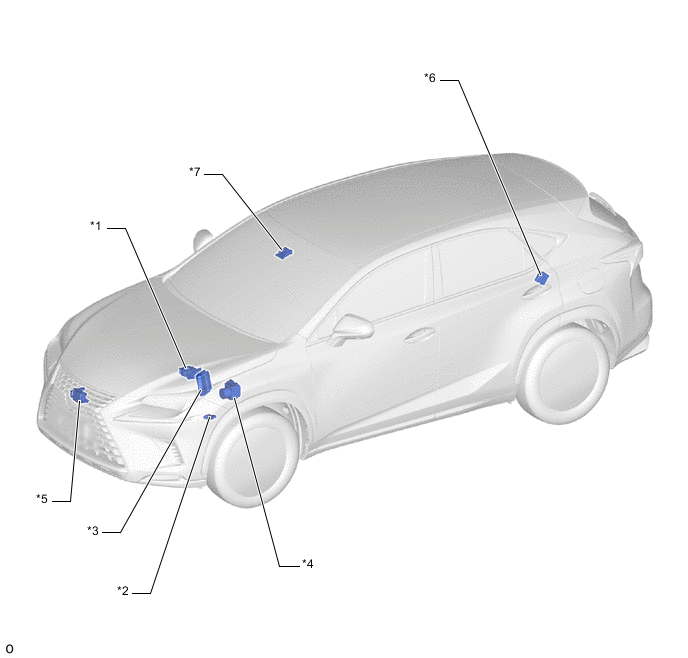

ILLUSTRATION
| *1 | THROTTLE BODY WITH MOTOR ASSEMBLY | *2 | PARK / NEUTRAL POSITION SWITCH |
| *3 | ECM | *4 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *6 | PARKING BRAKE ECU ASSEMBLY |
| *7 | FORWARD RECOGNITION CAMERA | - | - |

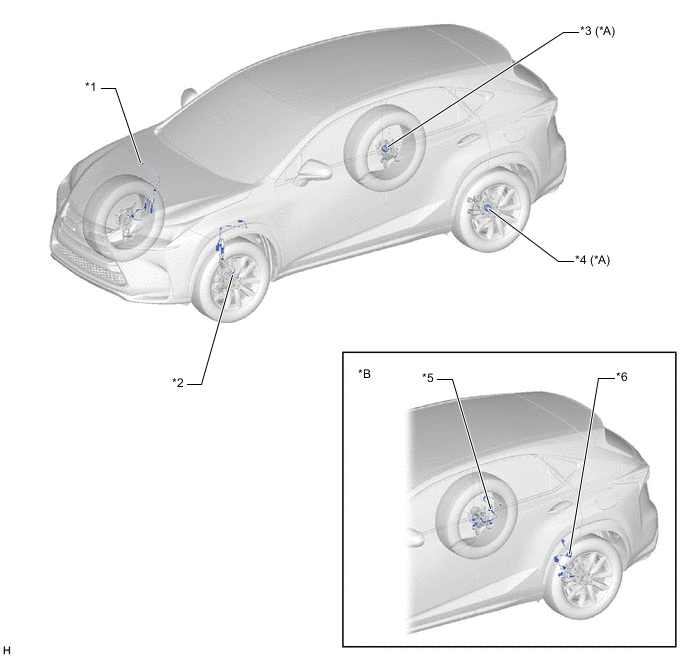

ILLUSTRATION
| *A | for 2WD | *B | for AWD |
| *1 | FRONT SPEED SENSOR RH | *2 | FRONT SPEED SENSOR LH |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY RH | *4 | REAR AXLE HUB AND BEARING ASSEMBLY LH |
| *5 | REAR SPEED SENSOR RH | *6 | REAR SPEED SENSOR LH |

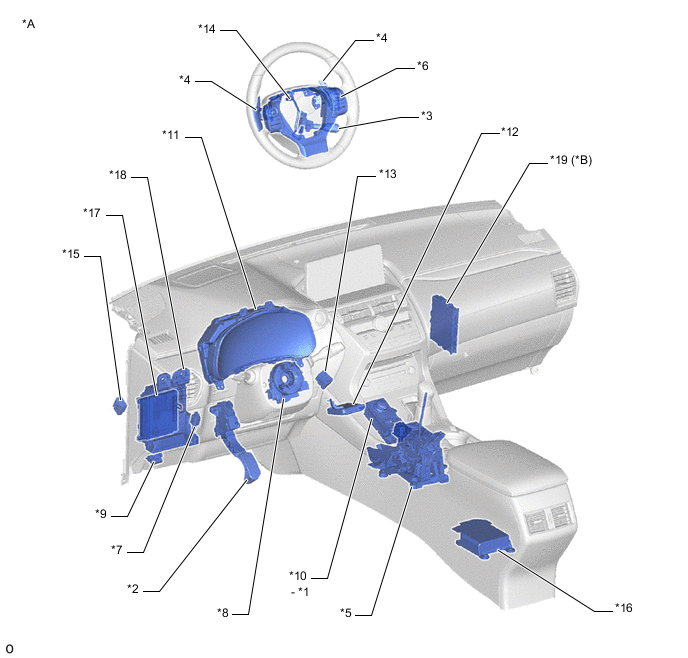

ILLUSTRATION
| *A | for LHD | *B | w/ Stop and Start System |
| *1 | VSC OFF SWITCH | *2 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *3 | CRUISE CONTROL MAIN SWITCH | *4 | TRANSMISSION SHIFT SWITCH ASSEMBLY |
| *5 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *6 | STEERING PAD SWITCH ASSEMBLY |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *9 | DLC3 | *10 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *11 | COMBINATION METER ASSEMBLY | *12 | DRIVING SUPPORT ECU ASSEMBLY |
| *13 | SKID CONTROL BUZZER | *14 | CRUISE CONTROL SWITCH WIRE |
| *15 | STOP LIGHT CONTROL ECU ASSEMBLY | *16 | YAW RATE AND ACCELERATION SENSOR (AIRBAG ECU ASSEMBLY) |
| *17 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *18 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 2 FUSE - STOP FUSE - IG2 NO. 2 FUSE |
| *19 | ENGINE STOP AND START ECU | - | - |

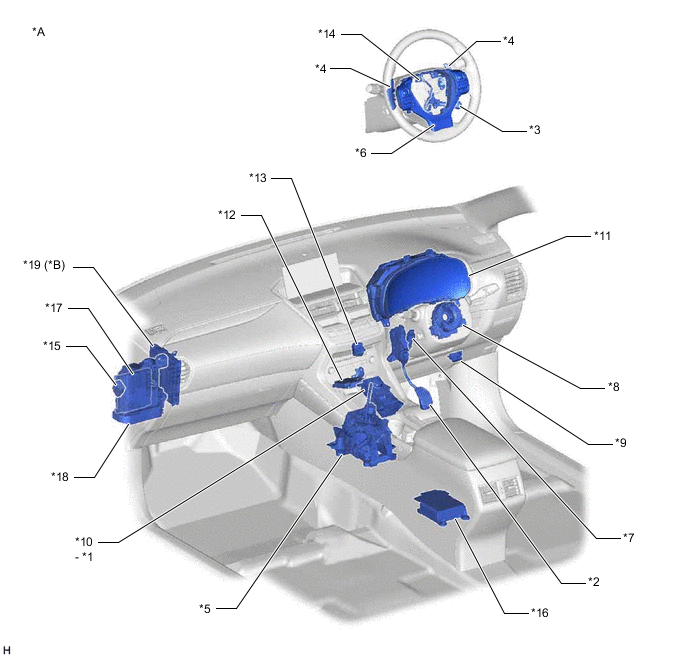

ILLUSTRATION
| *A | for RHD | *B | w/ Stop and Start System |
| *1 | VSC OFF SWITCH | *2 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *3 | CRUISE CONTROL MAIN SWITCH | *4 | TRANSMISSION SHIFT SWITCH ASSEMBLY |
| *5 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *6 | STEERING PAD SWITCH ASSEMBLY |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *9 | DLC3 | *10 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *11 | COMBINATION METER ASSEMBLY | *12 | DRIVING SUPPORT ECU ASSEMBLY |
| *13 | SKID CONTROL BUZZER | *14 | CRUISE CONTROL SWITCH WIRE |
| *15 | STOP LIGHT CONTROL ECU ASSEMBLY | *16 | AIRBAG ECU ASSEMBLY (YAW RATE SENSOR) |
| *17 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *18 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 2 FUSE - STOP FUSE - IG2 NO. 2 FUSE |
| *19 | ENGINE STOP AND START ECU | - | - |
