DYNAMIC RADAR CRUISE CONTROL SYSTEM PARTS LOCATION

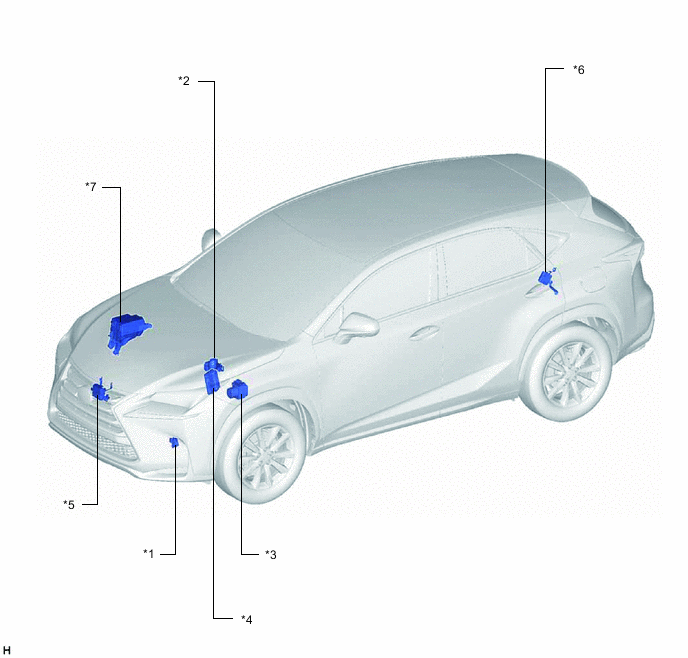

ILLUSTRATION
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *4 | ECM |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *6 | PARKING BRAKE ECU ASSEMBLY |
| *7 | NO. 2 ENGINE ROOM RELAY BLOCK - WIPER-S FUSE |
- | - |
ILLUSTRATION
| *A | for 2WD | *B | for AWD |
| *1 | FRONT SPEED SENSOR RH | *2 | FRONT SPEED SENSOR LH |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY RH | *4 | REAR AXLE HUB AND BEARING ASSEMBLY LH |
| *5 | REAR SPEED SENSOR RH | *6 | REAR SPEED SENSOR LH |

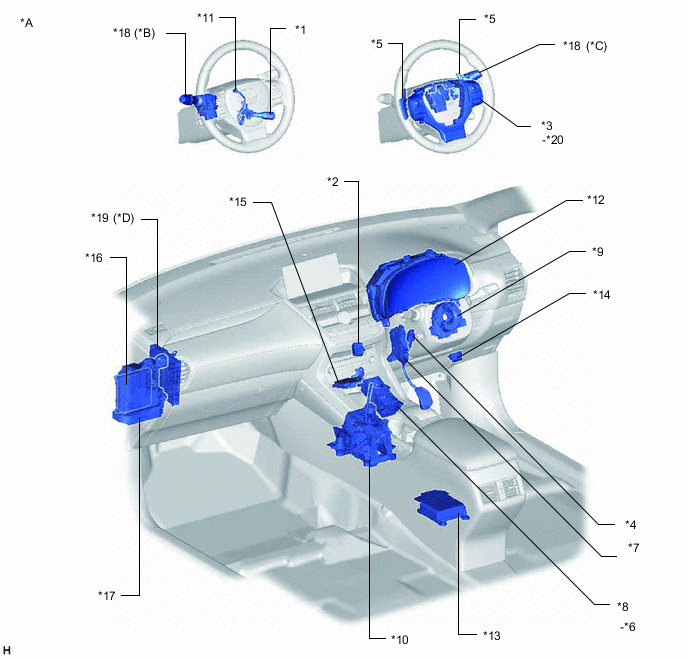

ILLUSTRATION
| *A | for RHD | *B | for LH Side Type |
| *C | for RH Side Type | *D | w/ Stop and Start System |
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | SKID CONTROL BUZZER |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | TRANSMISSION SHIFT SWITCH ASSEMBLY | *6 | VSC OFF SWITCH |
| *7 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *8 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *9 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *10 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *11 | CRUISE CONTROL SWITCH WIRE | *12 | COMBINATION METER ASSEMBLY |
| *13 | AIRBAG ECU ASSEMBLY | *14 | DLC3 |
| *15 | DRIVING SUPPORT ECU ASSEMBLY | *16 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *17 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - WIPER FUSE - IG2 NO.2 FUSE - IG2 NO.3 FUSE - ECU-IG NO.2 FUSE |
*18 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *19 | ENGINE STOP AND START ECU | *20 | DISTANCE CONTROL SWITCH |

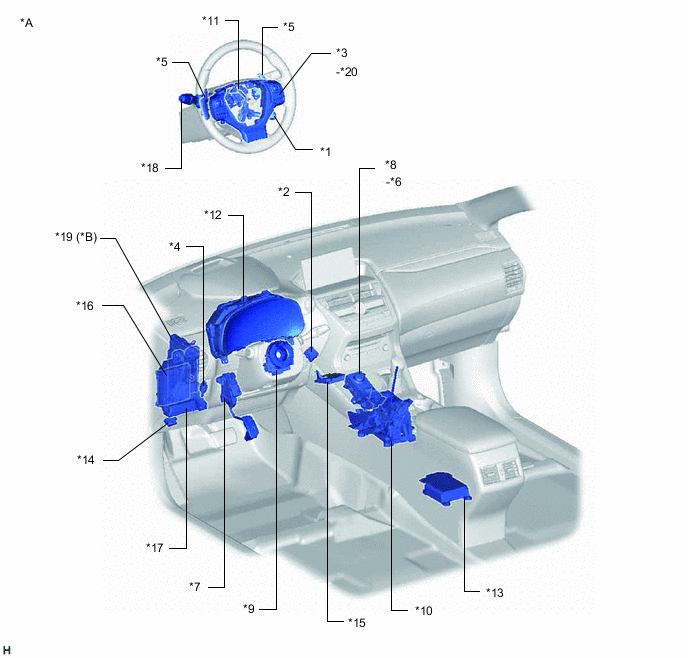

ILLUSTRATION
| *A | for LHD | *B | w/ Stop and Start System |
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | SKID CONTROL BUZZER |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | TRANSMISSION SHIFT SWITCH ASSEMBLY | *6 | VSC OFF SWITCH |
| *7 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *8 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *9 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *10 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *11 | CRUISE CONTROL SWITCH WIRE | *12 | COMBINATION METER ASSEMBLY |
| *13 | AIRBAG ECU ASSEMBLY | *14 | DLC3 |
| *15 | DRIVING SUPPORT ECU ASSEMBLY | *16 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *17 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - WIPER FUSE - IG2 NO.2 FUSE - IG2 NO.3 FUSE - ECU-IG NO.2 FUSE |
*18 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *19 | ENGINE STOP AND START ECU | *20 | DISTANCE CONTROL SWITCH |
