BRAKE GENERAL MAINTENANCE

PROCEDURE


  1. INSPECT BRAKE PEDAL


    1. Inspect the brake pedal.

      Type See procedure
      Brake pedal (for LHD)

      Click here

      Brake pedal (for RHD)

      Click here

  2. INSPECT BRAKE PADS AND DISCS


    1. Inspect the brake pads and discs.

      Type See procedure
      Front brake

      Click here

      Rear brake

      Click here

  3. INSPECT BRAKE FLUID


    1. Inspect the brake fluid.

      Click here

  4. REPLACE BRAKE FLUID


    1. Replace the brake fluid.

      Click here

  5. INSPECT BRAKE LINE PIPES AND HOSES

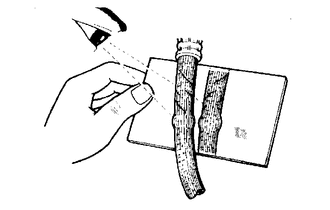

    B0057DQ

    Tech Tips

    Work in a well-lighted area. Turn the front wheels fully to the right or left before beginning the inspection.


    1. Using a mirror, check the entire circumference and length of the brake lines and hoses for:


      • Damage

      • Wear

      • Deformation

      • Cracks

      • Kinks

      • Corrosion

      • Leaks

      • Twists

    2. Check all the clamps for tightness and check the connections for leakage.

    3. Check that the hoses and lines are not near sharp edges, moving parts or the exhaust system.

    4. Check that the lines are installed properly and pass through the center of the grommets.

  6. INSPECT VACUUM PUMP


    1. Inspect the vacuum pump.

      Type See procedure
      8AR-FTS

      Click here

      3ZR-FAE

      Click here
