AUTOMATIC HIGH BEAM SYSTEM PARTS LOCATION

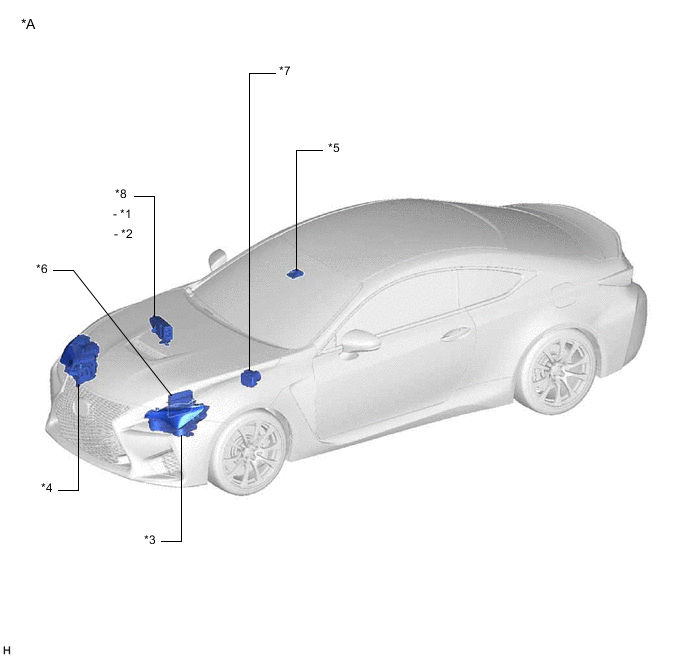

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | H-LP LH RELAY | *2 | H-LP RH/MIR HTR RELAY |
| *3 | HEADLIGHT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH |
*4 | HEADLIGHT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH |
| *5 | FORWARD RECOGNITION CAMERA | *6 | ECM |
| *7 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *8 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP MAIN LH FUSE - H-LP MAIN RH FUSE |

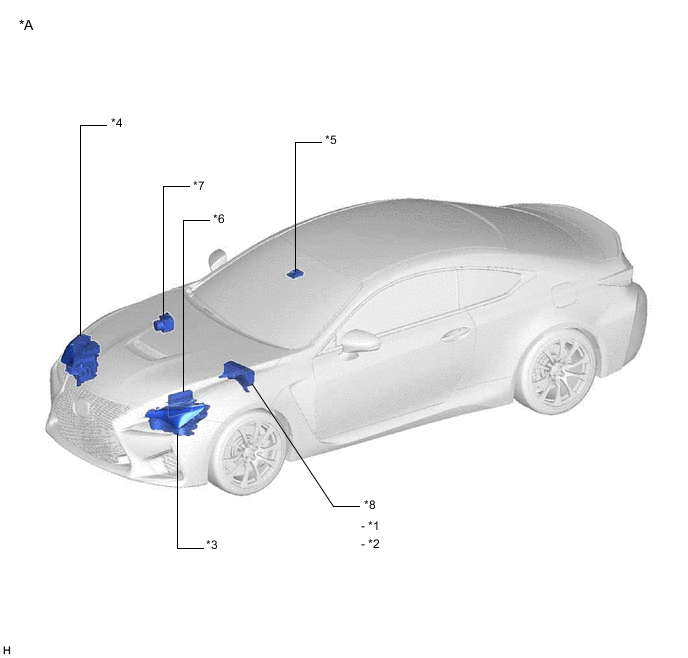

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | H-LP LH RELAY | *2 | H-LP RH RELAY |
| *3 | HEADLIGHT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH |
*4 | HEADLIGHT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH |
| *5 | FORWARD RECOGNITION CAMERA | *6 | ECM |
| *7 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *8 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP MAIN LH FUSE - H-LP MAIN RH FUSE |

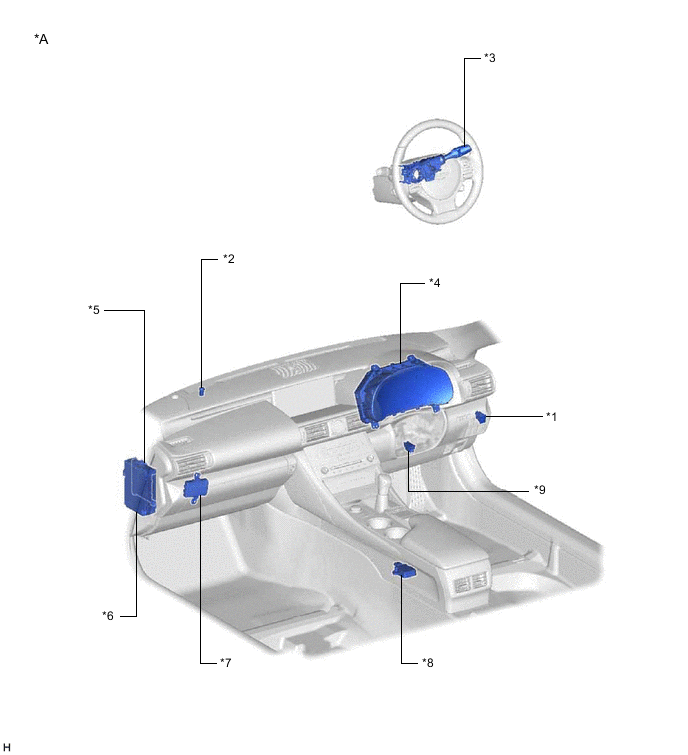

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AUTO HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
| *7 | NETWORK GATEWAY ECU | *8 | YAW RATE SENSOR |
| *9 | DLC3 | - | - |

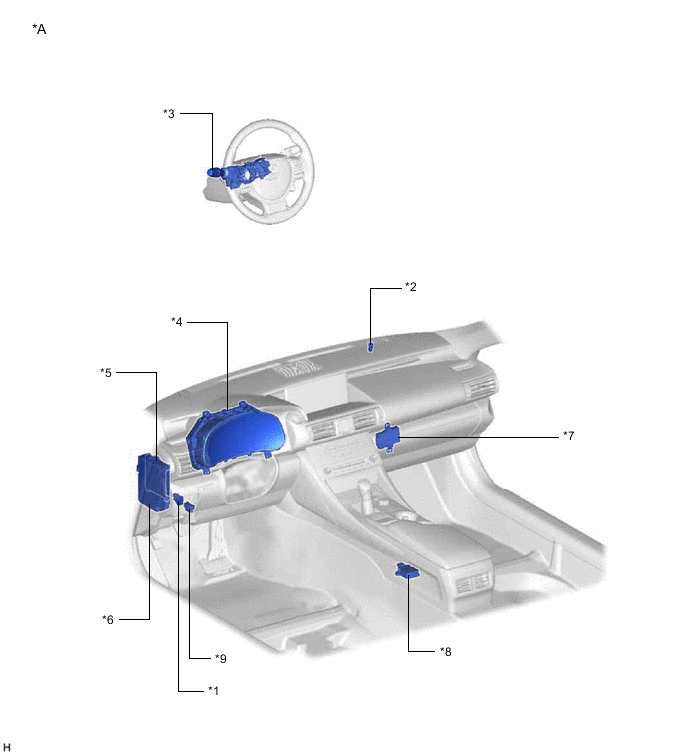

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | AUTO HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
| *7 | NETWORK GATEWAY ECU | *8 | YAW RATE SENSOR |
| *9 | DLC3 | - | - |
