AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM DIAGNOSIS SYSTEM

Click here
Click here
Click here

  1. DESCRIPTION


    1. Automatic headlight beam level control system data and Diagnostic Trouble Codes (DTCs) can be read from the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the GTS to check for malfunctions and perform repairs.

  2. CHECK DLC3


    1. Check the DLC3.

      Click here

  3. INSPECT BATTERY VOLTAGE


    1. Measure the battery voltage.

      Standard Voltage
      11 to 14 V

      If the voltage is below 11 V, recharge or replace the battery.

  4. DIAGNOSIS SYSTEM

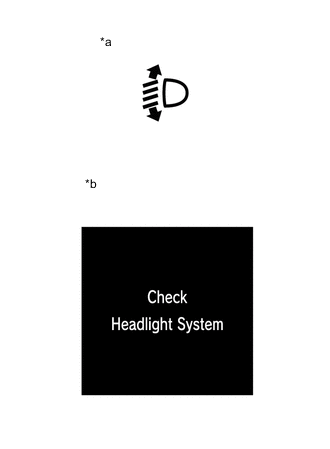

    1. A01FMBJC03
      *a Headlight Leveling Warning Light
      *b Multi-information Display

      If the automatic headlight beam level control system malfunctions, the headlight leveling warning light illuminates and "Check Headlight System" is displayed on the multi-information display.

      Tip:

      • In this case, the headlight light control ECU sub-assembly LH stores DTCs.

        Click here

      • When the system returns to normal, the headlight leveling warning light turns off and "Check Headlight System" is no longer displayed on the multi-information display.
