ULTRASONIC SENSOR(for Front) INSTALLATION

PROCEDURE


  1. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER

    Tech Tips


    • Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.

    • If a front corner ultrasonic sensor retainer has been removed, replace it with a new one.

    • The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.


    1. Clean the surface of the front bumper cover.


      1. Remove any remaining double-sided tape from the front bumper cover.

      2. Wipe off any adhesive residue with cleaner.

    2. A01RHFZC01
      *a 25 mm (0.984 in.)

      Cover the sensor installation hole with a 25 mm (0.984 in.) circular piece of tape.

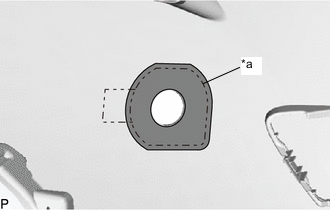

    3. A01RLMNC01
      *a Line
      B004Q8A Primer

      Using a brush or felt, apply primer or equivalent to the front corner ultrasonic sensor retainer installation area.

      Note


      • Use a clean brush or felt.

      • Do not touch the front bumper assembly until the primer has dried.

    4. Peel off the release paper from the front corner ultrasonic sensor retainer.

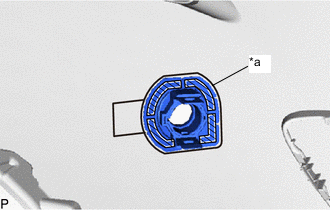

    5. A01RJ15C01
      *a Line
      B004PFI Press area

      Align the front corner ultrasonic sensor retainer with the mark on the front bumper cover and install it as shown in the illustration.

      Note

      The double-sided tape of a front corner ultrasonic sensor retainer will deteriorate if it is detached. Make sure to use a new front corner ultrasonic sensor retainer when reattachment is necessary.

      Tech Tips

      Press the area shown in the illustration with a force of 30 N (3.0 kgf) for 3 seconds to securely install the front corner ultrasonic sensor retainer to the front bumper cover. Confirm there is no clearance between the front corner ultrasonic sensor retainer and front bumper cover.

  2. INSTALL FRONT SIDE ULTRASONIC SENSOR RETAINER

    Tech Tips


    • Perform this procedure only when replacement of the front side ultrasonic sensor retainer is necessary.

    • If a front side ultrasonic sensor retainer has been removed, replace it with a new one.

    • The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.


    1. Clean the surface of the front bumper cover.


      1. Remove any remaining double-sided tape from the front bumper cover.

      2. Wipe off any adhesive residue with cleaner.

    2. A01RHFZC01
      *a 25 mm (0.984 in.)

      Cover the sensor installation hole with a 25 mm (0.984 in.) circular piece of tape.

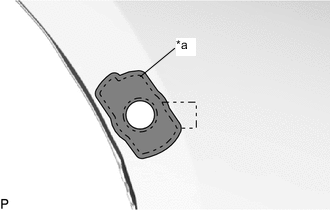

    3. A01RKK9C01
      *a Line
      B004Q8A Primer

      Using a brush or felt, apply primer or equivalent to the front side ultrasonic sensor retainer installation area.

      Note


      • Use a clean brush or felt.

      • Do not touch the front bumper assembly until the primer has dried.

    4. Peel off the release paper from the front side ultrasonic sensor retainer.

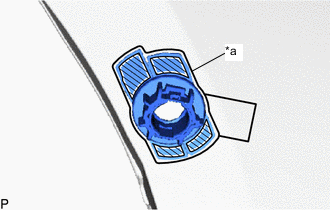

    5. A01RI7ZC01
      *a Line
      B004PFI Press area

      Align the front side ultrasonic sensor retainer with the mark on the front bumper cover and install it as shown in the illustration.

      Note

      The double-sided tape of a front side ultrasonic sensor retainer will deteriorate if it is detached. Make sure to use a new front side ultrasonic sensor retainer when reattachment is necessary.

      Tech Tips

      Press the area shown in the illustration with a force of 30 N (3.0 kgf) for 3 seconds to securely install the front side ultrasonic sensor retainer to the front bumper cover. Confirm there is no clearance between the front side ultrasonic sensor retainer and front bumper cover.

  3. INSTALL FRONT CENTER ULTRASONIC SENSOR

    Tech Tips

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

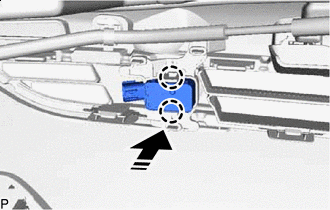

    1. A01RISHC01
      B004PI4 Install in this Direction

      Engage the 2 claws to install the front center ultrasonic sensor as shown in the illustration.

    2. Connect the connector.

  4. INSTALL FRONT CORNER ULTRASONIC SENSOR

    Tech Tips

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

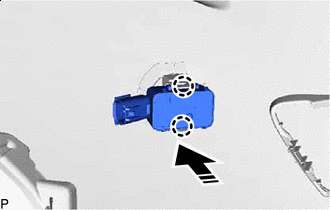

    1. A01RK0OC01
      B004PI4 Install in this Direction

      Engage the 2 claws to install the front corner ultrasonic sensor as shown in the illustration.

    2. Connect the connector.

  5. INSTALL ULTRASONIC SENSOR CLIP

    Tech Tips

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

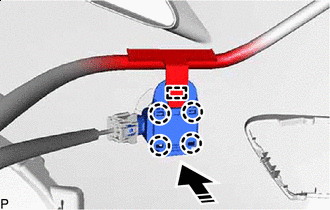

    1. A01RIMPC01
      B004PI4 Install in this Direction

      Engage the 4 claws to install the ultrasonic sensor clip as shown in the illustration.

    2. Engage the clamp.

  6. INSTALL FRONT SIDE ULTRASONIC SENSOR

    Tech Tips

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

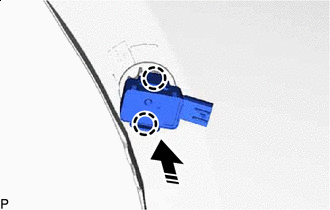

    1. A01RIK6C01
      B004PI4 Install in this Direction

      Engage the 2 claws to install the front side ultrasonic sensor as shown in the illustration.

    2. Connect the connector.

  7. INSTALL FRONT BUMPER ASSEMBLY

    Click here

  8. PERFORM CALIBRATION

    Click here

    SST
    09989-00020
