IDENTIFICATION INFORMATION VEHICLE IDENTIFICATION AND SERIAL NUMBERS


  1. VEHICLE IDENTIFICATION NUMBER


    1. The vehicle identification number is stamped on the vehicle body and on the name label as shown in the illustration.

      Refer to the front floor caution plate cover removal procedure.

      Click here

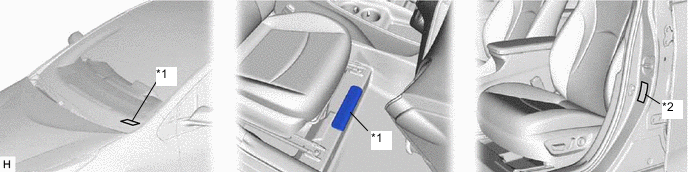

      B004P3EC01
      *1 Vehicle Identification Number *2 Name Label

  2. ENGINE SERIAL NUMBER AND TRANSAXLE CODE

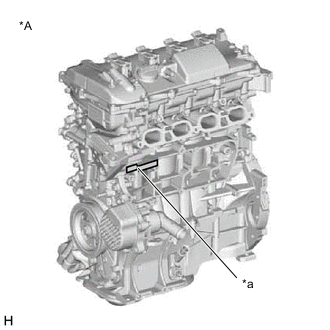

    1. B004OSHC04
      *A 2ZR-FXE
      *a Engine Serial Number

      The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

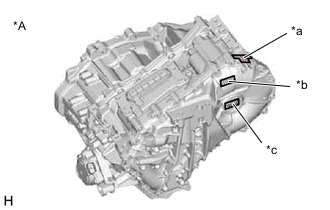

    2. B004PRAC02
      *A P610
      *a Transaxle Serial Number
      *b Transaxle Code
      *c Transaxle Type

      The transaxle type, transaxle code and transaxle serial number are stamped on or cast into the transaxle case as shown in the illustration.
