BACK DOOR OUTSIDE GARNISH DISASSEMBLY

PROCEDURE


  1. REMOVE BACK DOOR UPPER OUTSIDE GARNISH LH


    1. B002HKF

      Remove the screw and back door upper outside garnish LH.

  2. REMOVE BACK DOOR UPPER OUTSIDE GARNISH RH

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE BACK DOOR NO. 1 GARNISH RETAINER


    1. B002KN5

      Remove the 2 back door No. 1 garnish retainers.

  4. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR


    1. B002HF8

      Remove the back door outside garnish protector.

  5. REMOVE SYMBOL EMBLEM

    Click here

  6. REMOVE NUT

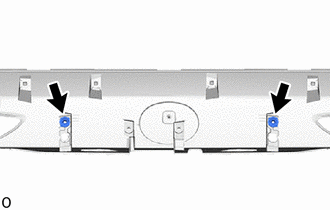

    1. B002H4F

      Remove the 2 nuts.
