RADIATOR GRILLE(for Sport Package) COMPONENTS

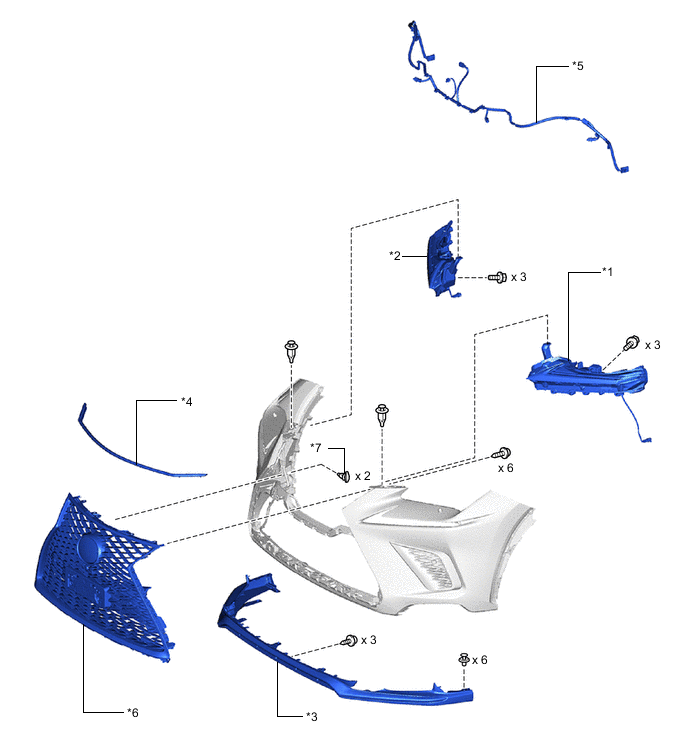

ILLUSTRATION
| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | FRONT BUMPER GUARD ASSEMBLY | *4 | HOOD TO FRONT END PANEL SEAL |
| *5 | NO. 3 ENGINE ROOM WIRE | *6 | RADIATOR GRILLE ASSEMBLY |
| *7 | OUTSIDE MOULDING RETAINER | - | - |

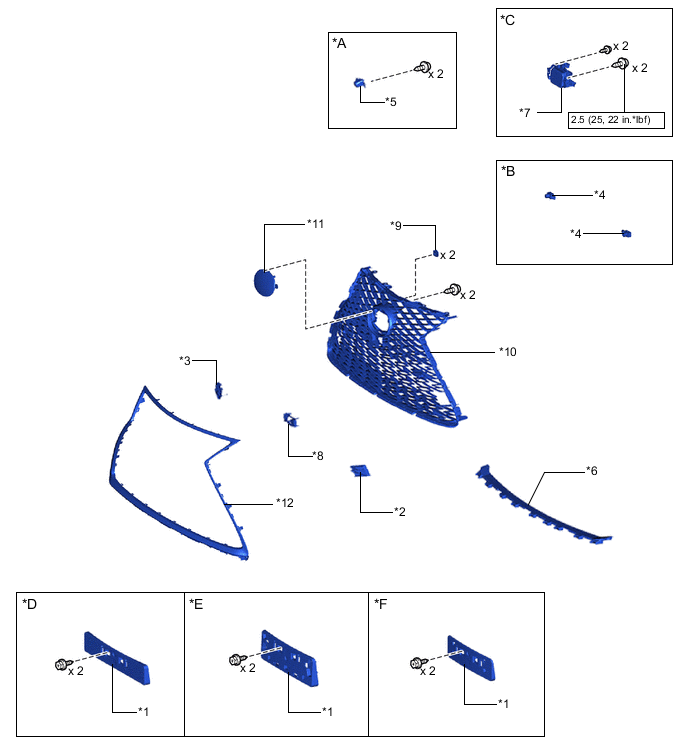

ILLUSTRATION
| *A | w/ Panoramic View Monitor System | *B | w/ LEXUS Parking Assist-sensor System |
| *C | w/ Dynamic Radar Cruise Control System | *D | for Type A |
| *E | for Type B | *F | for Type C |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER HOLE COVER RH | *4 | FRONT CENTER ULTRASONIC SENSOR |
| *5 | FRONT TELEVISION CAMERA ASSEMBLY | *6 | LOWER NO. 1 RADIATOR GRILLE |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | NO. 3 RADIATOR GRILLE GARNISH |
| *9 | NUT | *10 | RADIATOR GRILLE |
| *11 | RADIATOR GRILLE EMBLEM | *12 | RADIATOR GRILLE MOULDING |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
