REAR DOOR OUTSIDE MOULDING DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE REAR DOOR UPPER OUTSIDE MOULDING PAD

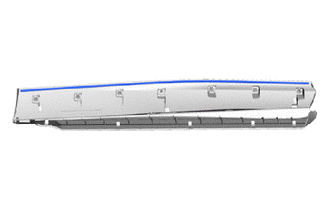

    1. A01CP36

      Remove the rear door upper outside moulding pad.

  2. REMOVE REAR DOOR NO. 1 MOULDING PAD

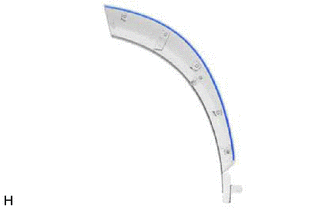

    1. A01CNWT

      Remove the rear door No. 1 moulding pad.

  3. REMOVE REAR DOOR REAR OUTSIDE MOULDING PAD

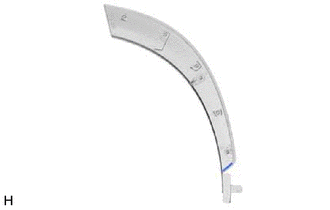

    1. A01CPP0

      Remove the rear door rear outside moulding pad.

  4. REMOVE NO. 2 MOULDING TAPE


    1. A01CRHV

      Remove the No. 2 moulding tape.
