REAR BUMPER COMPONENTS

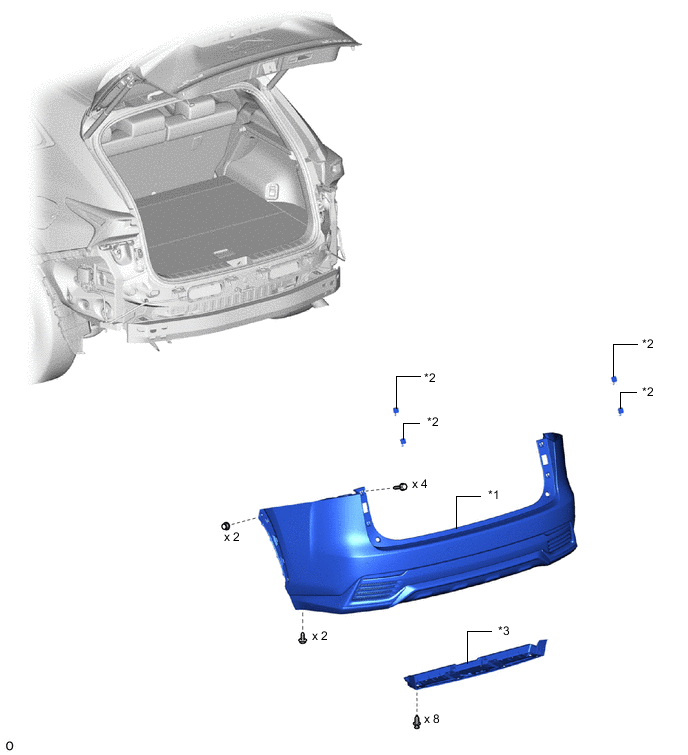

ILLUSTRATION
| *1 | REAR BUMPER COVER | *2 | REAR BUMPER NO. 1 PLATE |
| *3 | REAR FLOOR SIDE MEMBER COVER | - | - |

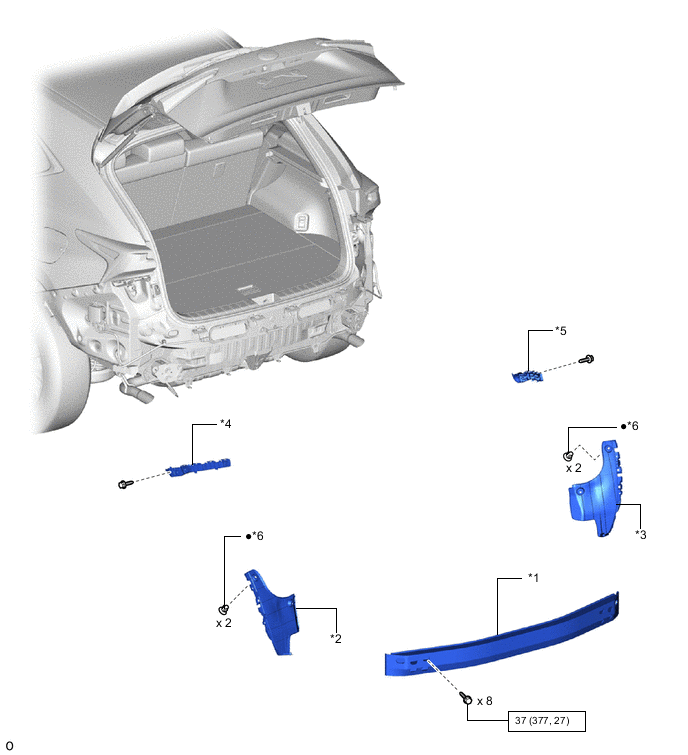

ILLUSTRATION
| *1 | REAR BUMPER NO. 1 REINFORCEMENT | *2 | REAR BUMPER SIDE SEAL LH |
| *3 | REAR BUMPER SIDE SEAL RH | *4 | REAR BUMPER SIDE SUPPORT LH |
| *5 | REAR BUMPER SIDE SUPPORT RH | *6 | GROMMET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

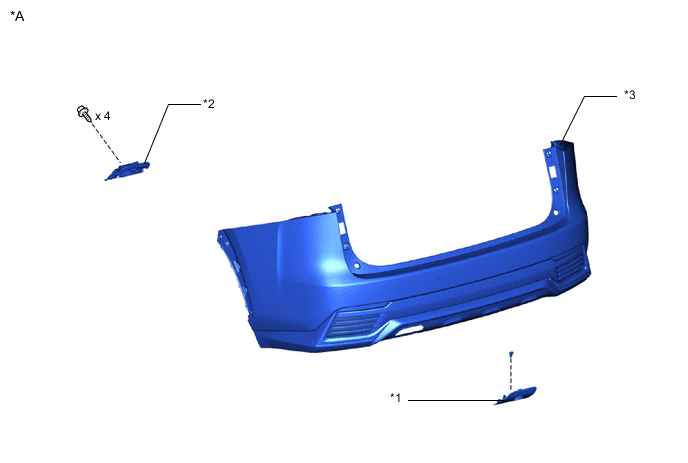

ILLUSTRATION
| *A | w/ Hands Free Power Back Door | - | - |
| *1 | KICK DOOR CONTROL BRACKET | *2 | KICK DOOR CONTROL SENSOR |
| *3 | OOTSIDE MOULDING RETAINER | - | - |

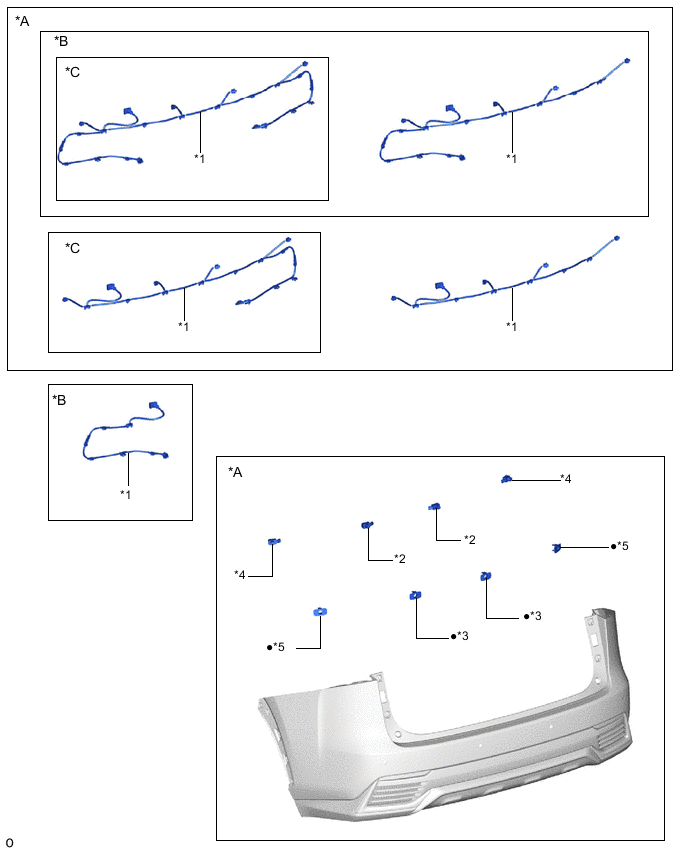

ILLUSTRATION
| *A | w/ LEXUS Parking Assist-sensor System | *B | w/ Rear Fog Light |
| *C | w/ Hands Free Power Back Door | - | - |
| *1 | NO. 2 LUGGAGE ROOM WIRE | *2 | REAR CENTER ULTRASONIC SENSOR |
| *3 | REAR CENTER ULTRASONIC SENSOR RETAINER | *4 | REAR CORNER ULTRASONIC SENSOR |
| *5 | REAR CORNER ULTRASONIC SENSOR RETAINER | - | - |
| ● | Non-reusable part | - | - |

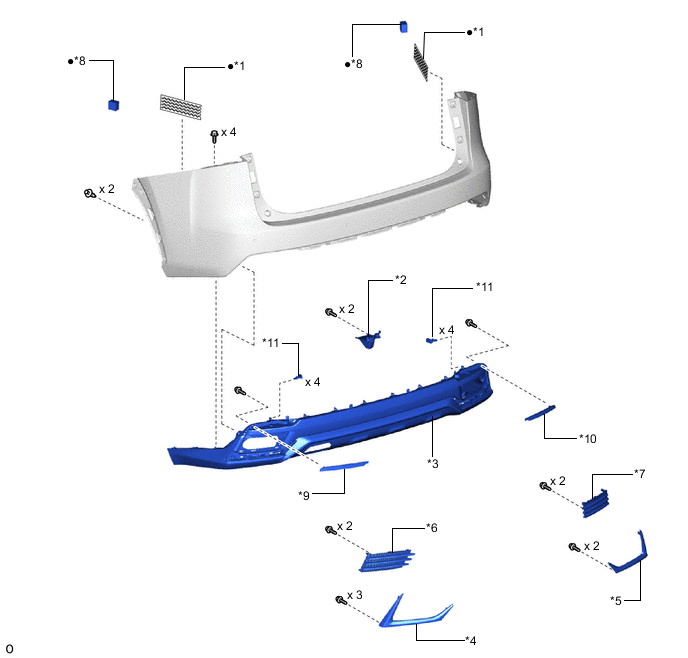

ILLUSTRATION
| *1 | NO. 1 MOULDING TAPE | *2 | REAR BUMPER CORNER EXTENSION RH |
| *3 | REAR BUMPER LOWER COVER | *4 | REAR BUMPER LOWER RETAINER LH |
| *5 | REAR BUMPER LOWER RETAINER RH | *6 | REAR BUMPER LOWER SIDE RETAINER LH |
| *7 | REAR BUMPER LOWER SIDE RETAINER RH | *8 | REAR BUMPER PAD |
| *9 | REFLEX REFLECTOR ASSEMBLY LH | *10 | REFLEX REFLECTOR ASSEMBLY RH |
| *11 | OUT SIDE MOULDING RETAINER | - | - |
| ● | Non-reusable part | - | - |

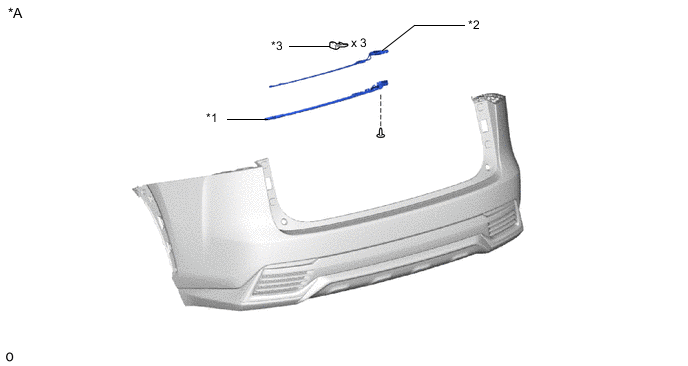

ILLUSTRATION
| *A | w/ Rear Fog Light | - | - |
| *1 | FOG LIGHT COVER LH | *2 | REAR FOG LIGHT SET |
| *3 | REAR BUMPER ASSEMBLY | - | - |
