CLEARANCE LIGHT ASSEMBLY(for Bulb Type Turn Signal Light) INSPECTION

PROCEDURE


  1. INSPECT CLEARANCE LIGHT ASSEMBLY LH

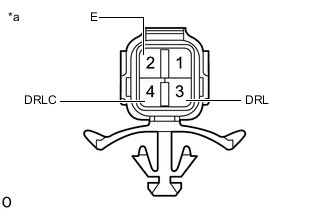

    1. B002IP2C23
      *a

      Component without harness connected

      (Clearance Light Assembly LH)

      Apply battery voltage to the connector and check the light illumination Battery Connection.

      OK
      Battery Connection Specified Condition

      Positive (+) → 3 (DRL)

      Negative (-) → 2 (E)

      		 LED illuminates

      Positive (+) → 4 (DRLC)

      Negative (-) → 2 (E)

      		 LED illuminates in dimmed state

      If the result is not as specified, replace the clearance light assembly LH.

  2. INSPECT CLEARANCE LIGHT ASSEMBLY RH


    1. B002IP2C24
      *a

      Component without harness connected

      (Clearance Light Assembly RH)

      Apply battery voltage to the connector and check the light illumination Battery Connection.

      OK
      Battery Connection Specified Condition

      Positive (+) → 3 (DRL)

      Negative (-) → 2 (E)

      		 LED illuminates

      Positive (+) → 4 (DRLC)

      Negative (-) → 2 (E)

      		 LED illuminates in dimmed state

      If the result is not as specified, replace the clearance light assembly RH.
