CLEARANCE LIGHT ASSEMBLY(for Bulb Type Turn Signal Light) INSPECTION

PROCEDURE


  1. INSPECT CLEARANCE LIGHT ASSEMBLY LH


    1. B002IP2C03
      *a

      Component without harness connected

      (Clearance Light Assembly LH)

      Apply auxiliary battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Auxiliary battery positive (+) → A30-3 (DRL)

      Auxiliary battery negative (-) → A30-2 (E)

      		 LED illuminates

      Auxiliary battery positive (+) → A30-4 (DRLC)

      Auxiliary battery negative (-) → A30-2 (E)

      		 LED illuminates in dimmed state

      If the result is not as specified, replace the clearance light assembly LH.

  2. INSPECT CLEARANCE LIGHT ASSEMBLY RH

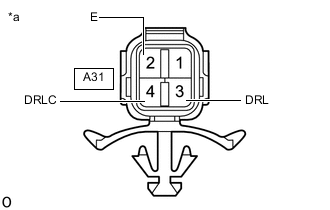

    1. B002IP2C05
      *a

      Component without harness connected

      (Clearance Light Assembly RH)

      Apply auxiliary battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Auxiliary battery positive (+) → A31-3 (DRL)

      Auxiliary battery negative (-) → A31-2 (E)

      		 LED illuminates

      Auxiliary battery positive (+) → A31-4 (DRLC)

      Auxiliary battery negative (-) → A31-2 (E)

      		 LED illuminates in dimmed state

      If the result is not as specified, replace the clearance light assembly RH.
