FOG LIGHT ASSEMBLY COMPONENTS

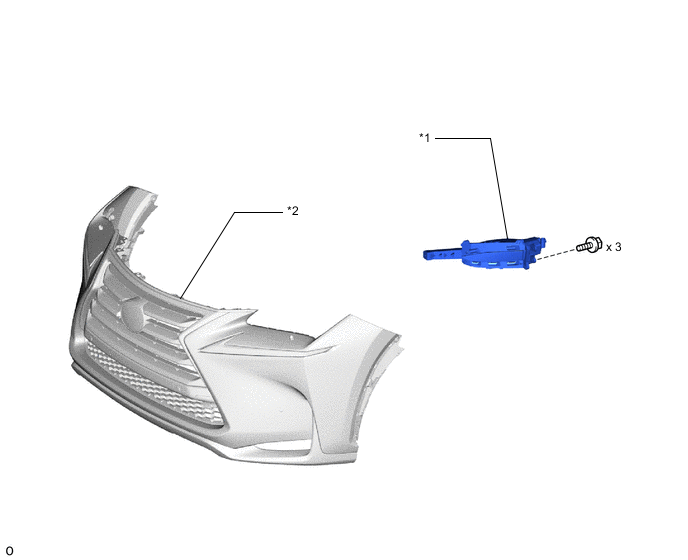

ILLUSTRATION
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FRONT BUMPER ASSEMBLY |

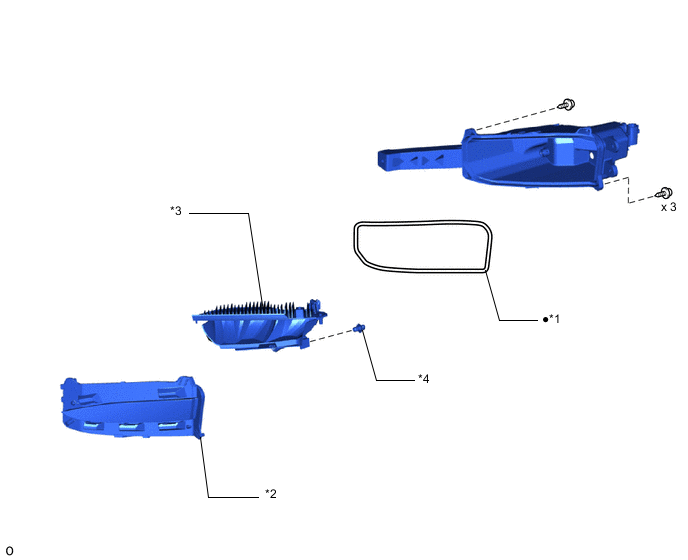

ILLUSTRATION
| *1 | FOG LIGHT GASKET | *2 | FOG LIGHT LENS LH |
| *3 | FOG LIGHT UNIT LH | *4 | PIVOT COLLAR |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FRONT BUMPER ASSEMBLY |
ILLUSTRATION
| *1 | FOG LIGHT GASKET | *2 | FOG LIGHT LENS LH |
| *3 | FOG LIGHT UNIT LH | *4 | PIVOT COLLAR |
| ● | Non-reusable part | - | - |
