LIGHTING SYSTEM PARTS LOCATION

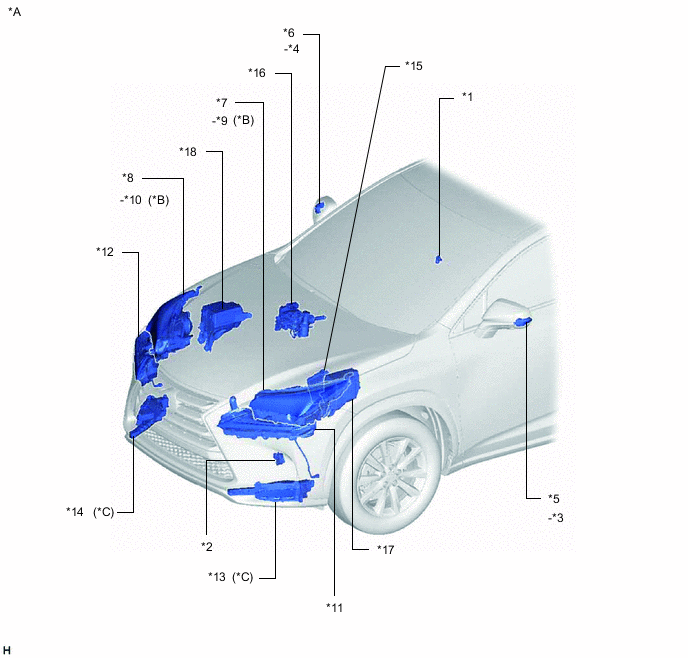

ILLUSTRATION
| *A | for LHD | *B | for LED Headlight |
| *C | w/ Front Fog Light | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *2 | SHIFT LEVER POSITION SENSOR |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LEVELING MOTOR LH |
*8 | HEADLIGHT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LEVELING MOTOR RH |
| *9 | HEADLIGHT FAN LH | *10 | HEADLIGHT FAN RH |
| *11 | CLEARANCE LIGHT ASSEMBLY LH - CLEARANCE LIGHT LED UNIT ASSEMBLY LH |
*12 | CLEARANCE LIGHT ASSEMBLY RH - CLEARANCE LIGHT LED UNIT ASSEMBLY RH |
| *13 | FOG LIGHT ASSEMBLY LH - FOG LIGHT UNIT LH |
*14 | FOG LIGHT ASSEMBLY RH - FOG LIGHT UNIT RH |
| *15 | ECM | *16 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *17 | ENGINE ROOM RELAY BLOCK - H-LP LH/DIMMER(HI) RELAY - H-LP MAIN RH/H-LP MAIN LO FUSE - H-LP MAIN LH/H-LP MAIN HI FUSE - H-LP LH/H-LP LH HI FUSE - TURN&HAZ FUSE - METER NO.1 FUSE |
*18 | NO. 2 ENGINE ROOM RELAY BLOCK - H-LP RH RELAY - FOG FR RELAY (w/ Front Fog Light) - H-LP RH/H-LP RH-LO RELAY - FOG FR FUSE (w/ Front Fog Light) |

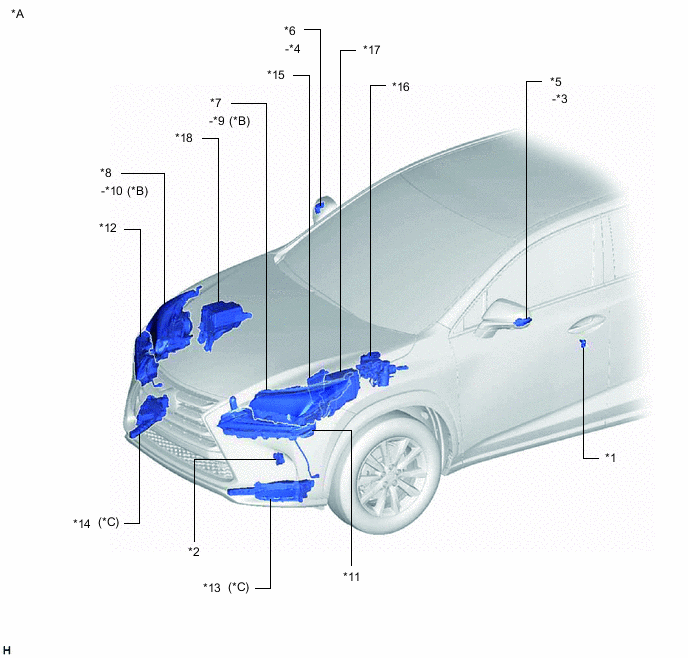

ILLUSTRATION
| *A | for RHD | *B | for LED Headlight |
| *C | w/ Front Fog Light | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *2 | SHIFT LEVER POSITION SENSOR |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LEVELING MOTOR LH |
*8 | HEADLIGHT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LEVELING MOTOR RH |
| *9 | HEADLIGHT FAN LH | *10 | HEADLIGHT FAN RH |
| *11 | CLEARANCE LIGHT ASSEMBLY LH - CLEARANCE LIGHT LED UNIT ASSEMBLY LH |
*12 | CLEARANCE LIGHT ASSEMBLY RH - CLEARANCE LIGHT LED UNIT ASSEMBLY RH |
| *13 | FOG LIGHT ASSEMBLY LH - FOG LIGHT UNIT LH |
*14 | FOG LIGHT ASSEMBLY RH - FOG LIGHT UNIT RH |
| *15 | ECM | *16 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *17 | ENGINE ROOM RELAY BLOCK - H-LP LH/DIMMER(HI) RELAY - H-LP MAIN RH/H-LP MAIN LO FUSE - H-LP MAIN LH/H-LP MAIN HI FUSE - H-LP LH/H-LP LH HI FUSE - TURN&HAZ FUSE - METER NO.1 FUSE |
*18 | NO. 2 ENGINE ROOM RELAY BLOCK - H-LP RH RELAY - FOG FR RELAY (w/ Front Fog Light) - H-LP RH/H-LP RH-LO RELAY - FOG FR FUSE (w/ Front Fog Light) |

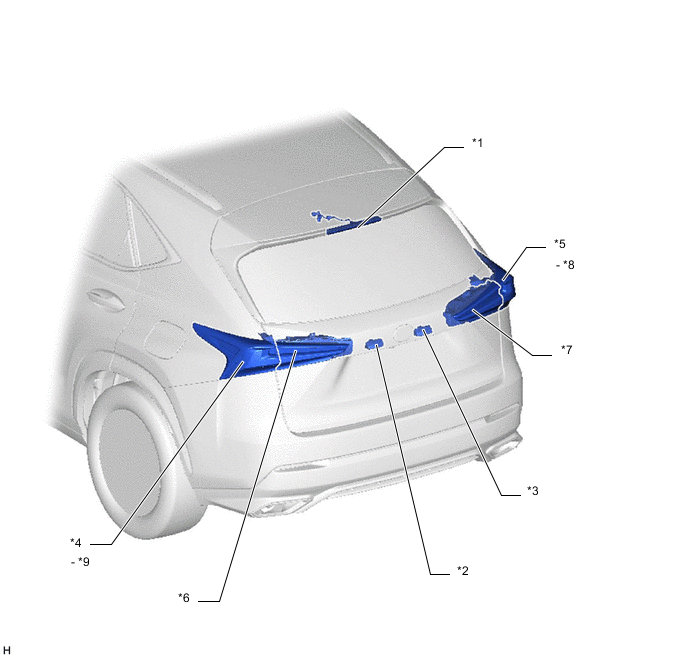

ILLUSTRATION
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT ASSEMBLY LH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY RH | *4 | REAR COMBINATION LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH | *6 | REAR LIGHT ASSEMBLY LH |
| *7 | REAR LIGHT ASSEMBLY RH | *8 | REAR COMBINATION LIGHT SOCKETAND WIRE SUB-ASSEMBLY RH |
| *9 | REAR COMBINATION LIGHT SOCKETAND WIRE SUB-ASSEMBLY LH | - | - |

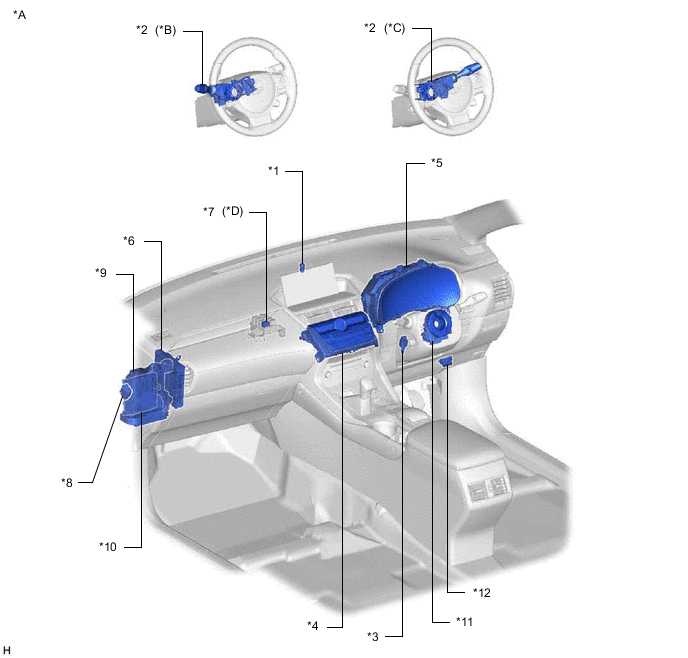

ILLUSTRATION
| *A | for LHD | *B | w/ Rear Fog Light |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | AIR CONDITIONING CONTROL ASSEMBLY - HAZARD WARNING SWITCH |
| *5 | COMBINATION METER ASSEMBLY | *6 | STOP LIGHT CONTROL ECU ASSEMBLY |
| *7 | HYBRID VEHICLE CONTROL ECU | *8 | REAR FOG LIGHT RELAY (FOG RR) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO.2 RELAY - BK UP LP RELAY - TAIL RELAY - ACC RELAY - ECU-IG NO.2 FUSE - ECU-IG NO.3 FUSE - ACC FUSE - BKUP LP FUSE - TAIL FUSE - STOP FUSE - FOG RR FUSE (w/ Rear Fog Light) |
*10 | MAIN BODY ECU (MULTIPLEX NET WORK BODY ECU) |
| *11 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *12 | DLC3 |

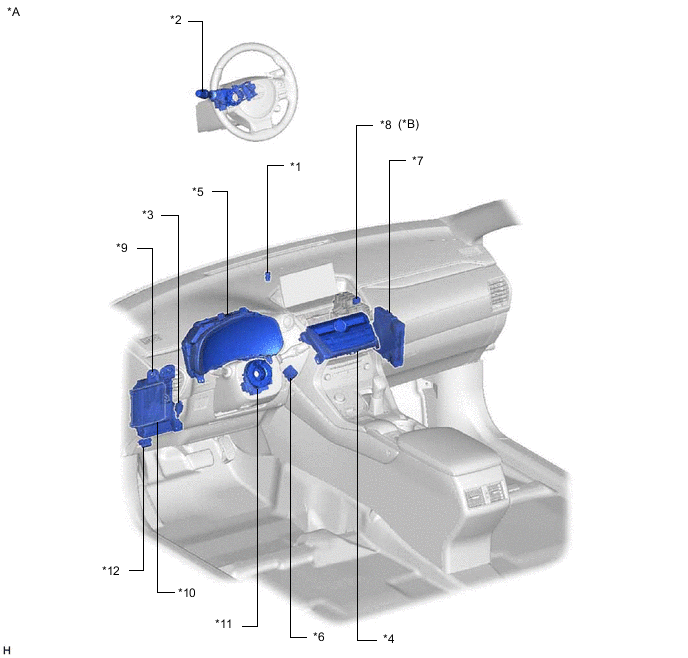

ILLUSTRATION
| *A | for RHD | *B | for LH Side |
| *C | for RH Side | *D | w/ Rear Fog Light |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HEADLIGHT DIMMER SWITCH ASSEMLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | AIR CONDITIONING CONTROL ASSEMBLY - HAZARD WARNING SWITCH |
| *5 | COMBINATION METER ASSEMBLY | *6 | HYBRID VEHICLE CONTROL ECU |
| *7 | REAR FOG LIGHT RELAY (FOG RR) | *8 | STOP LIGHT CONTROL ECU ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO.2 RELAY - BK UP LP RELAY - TAIL RELAY - ACC RELAY - ECU-IG NO.2 FUSE - ECU-IG NO.3 FUSE - ACC FUSE - BKUP LP FUSE - TAIL FUSE - STOP FUSE - FOG RR FUSE (w/ Rear Fog Light) |
*10 | MAIN BODY ECU (MULTIPLEX NET WORK BODY ECU) |
| *11 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *12 | DLC3 |
