FUEL LID OPENER MOTOR ASSEMBLY REMOVAL

PROCEDURE


  1. REMOVE REAR SEAT ASSEMBLY


    1. for Power Seat:

      Click here

    2. for Manual Seat:

      Click here

  2. REMOVE REAR FLOOR FINISH PLATE

    Click here

  3. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  4. REMOVE UPPER DECK TRIM SIDE BOARD LH

    Click here

  5. REMOVE ROPE HOOK ASSEMBLY

    Click here

  6. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Click here

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Click here

  8. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

  9. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

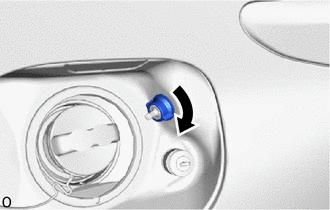

    1. B002I74

      Remove the fuel filler opening lid lock retainer as shown in the illustration.

  10. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY

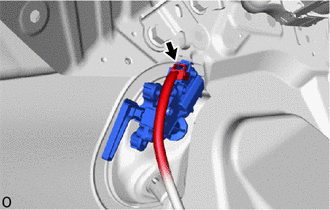

    1. B002J6O

      Disconnect the connector and remove the fuel lid with motor lock assembly.
