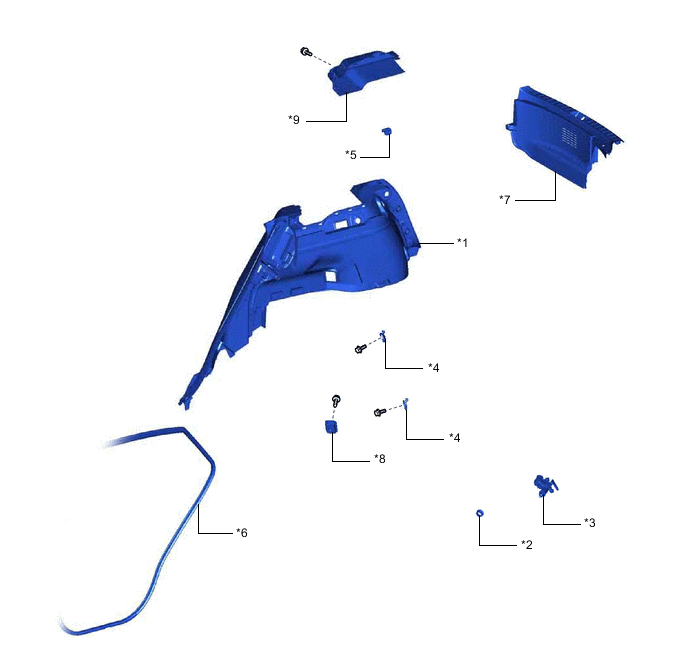

FUEL LID OPENER MOTOR ASSEMBLY COMPONENTS
ILLUSTRATION
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | FUEL FILLER OPENING LID LOCK RETAINER |
| *3 | FUEL LID WITH MOTOR LOCK ASSEMBLY | *4 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *7 | REAR FLOOR FINISH PLATE | *8 | ROPE HOOK ASSEMBLY |
| *9 | UPPER DECK TRIM SIDE BOARD LH | - | - |
