BACK DOOR CLOSER ECU REMOVAL

PROCEDURE

1. REMOVE BACK DOOR CENTER GARNISH

   Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

   Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

   Click here

4. REMOVE BACK DOOR TRIM BASE

   Click here

5. REMOVE PULL HANDLE

   Click here

6. REMOVE BACK DOOR LOCK COVER

   Click here

7. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

   Click here

8. REMOVE MULTIPLEX NETWORK DOOR ECU

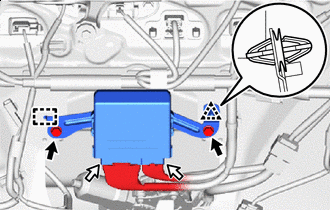

   1.

      	Bolt
      	Connector

      Remove the 2 bolts.

   2. Detach the clip and guide, and remove the multiplex network door ECU.

      Note

      Be careful when removing the multiplex network door ECU may fall and become damaged.

   3. Disconnect the 2 connectors.
