REAR POWER WINDOW SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Click here

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

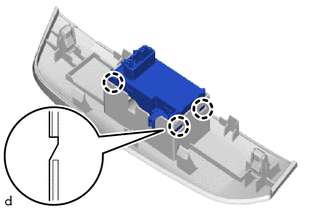

    1. A01H8DP

      Detach the 3 claws and remove the rear power window regulator switch assembly.
