ROOF HEADLINING COMPONENTS

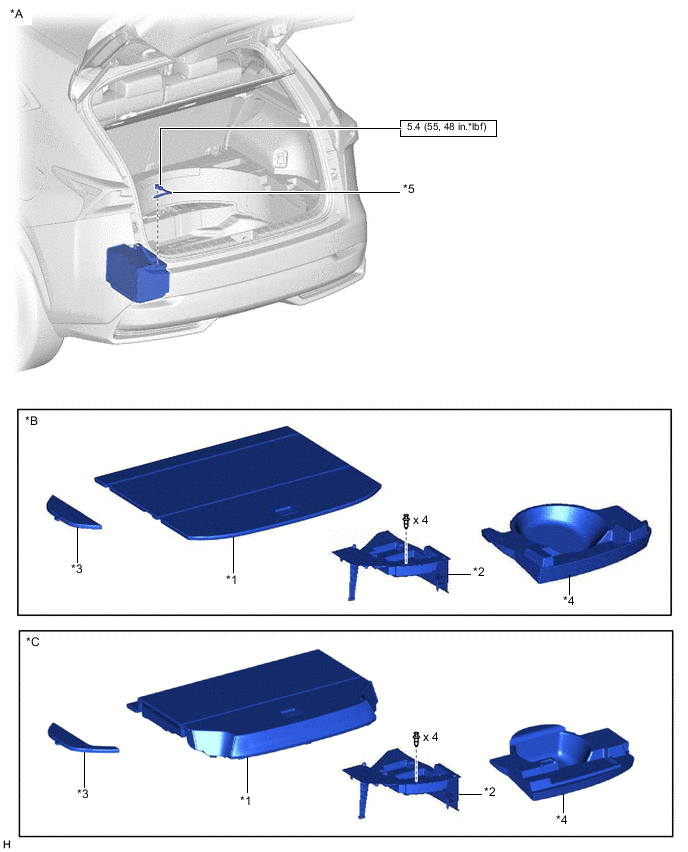

ILLUSTRATION
| *A | w/ Spare Tire | *B | for Compact Size Spare Tire |
| *C | for Full Size Spare Tire | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | *4 | REAR DECK FLOOR BOX |
| *5 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

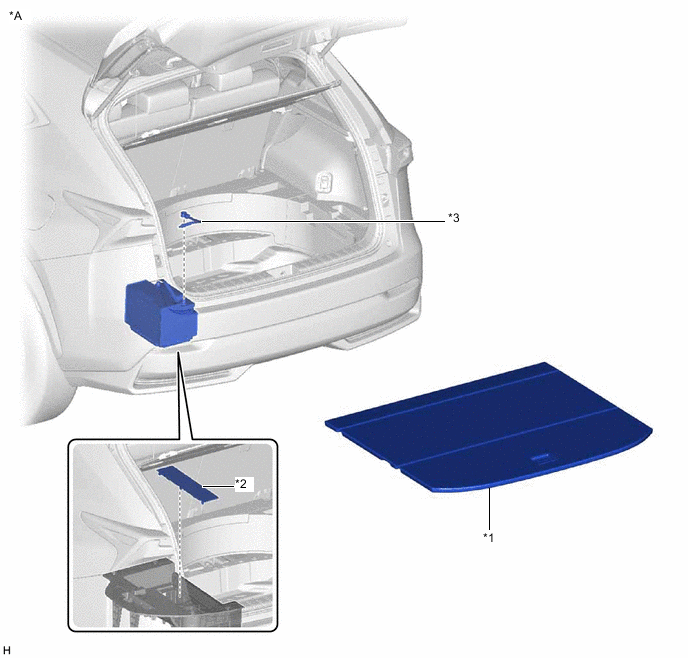

ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | BATTERY SERVICE COVER |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Spare Tire | *B | for Compact Size Spare Tire |
| *C | for Full Size Spare Tire | - | - |
| *1 | DECK FLOOR BOX RH | *2 | NO. 1 TOOL BOX SUB-ASSEMBLY |
| *3 | NO. 2 DECK BOARD SUB-ASSEMBLY | *4 | NO. 2 TOOL BOX SUB-ASSEMBLY |
| *5 | REAR FLOOR FINISH PLATE | *6 | SPARE TIRE |
| *7 | TONNEAU COVER ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | DECK FLOOR BOX LH | *2 | DECK FLOOR BOX RH |
| *3 | NO. 1 TOOL BOX SUB-ASSEMBLY | *4 | NO. 2 DECK BOARD SUB-ASSEMBLY |
| *5 | NO. 2 TOOL BOX SUB-ASSEMBLY | *6 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *7 | REAR FLOOR FINISH PLATE | *8 | TONNEAU COVER ASSEMBLY |
ILLUSTRATION
| *1 | CENTER PILLAR GARNISH ASSEMBLY LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | DOOR SCUFF PLATE ASSEMBLY LH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *5 | FRONT PILLAR GARNISH ASSEMBLY LH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | LOWER CENTER PILLAR GARNISH LH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | CENTER PILLAR GARNISH ASSEMBLY RH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | DOOR SCUFF PLATE ASSEMBLY RH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | FRONT PILLAR GARNISH ASSEMBLY RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *7 | LOWER CENTER PILLAR GARNISH RH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Power Seat | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | NO. 3 BATTERY SERVICE COVER BOARD | *6 | ROPE HOOK ASSEMBLY |
| *7 | UPPER DECK TRIM SIDE BOARD LH | - | - |
ILLUSTRATION
| *A | for Power Seat | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | NO. 2 BATTERY SERVICE COVER BOARD | *6 | ROPE HOOK ASSEMBLY |
| *7 | UPPER DECK TRIM SIDE BOARD RH | - | - |
ILLUSTRATION
| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | REAR ASSIST GRIP ASSEMBLY LH |
| *3 | REAR ASSIST GRIP ASSEMBLY RH | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR BRACKET COVER |
| *7 | VISOR HOLDER | *8 | ASSIST GRIP COVER |
| *9 | CLIP | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for Normal Roof | *B | w/ EC Mirror, w/o Lane Departure Alert System |
| *C | w/ EC Mirror, w/ Lane Departure Alert System | - | - |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 LANE RECOGNITION COVER | *4 | RAIN SENSOR COVER |
| *5 | ROOF HEADLINING ASSEMBLY | *6 | SEAT BELT ANCHOR COVER |
| *7 | SPOT LIGHT ASSEMBLY | *8 | NO. 2 LANE RECOGNITION COVER |
ILLUSTRATION
| *A | for Sliding Roof | *B | w/ EC Mirror, w/o Lane Departure Alert System |
| *C | w/ EC Mirror, w/ Lane Departure Alert System | - | - |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 LANE RECOGNITION COVER | *4 | RAIN SENSOR COVER |
| *5 | ROOF HEADLINING ASSEMBLY | *6 | SEAT BELT ANCHOR COVER |
| *7 | SPOT LIGHT ASSEMBLY | *8 | NO. 2 LANE RECOGNITION COVER |
ILLUSTRATION
| *A | for Glass Roof | *B | w/ EC Mirror, w/o Lane Departure Alert System |
| *C | w/ EC Mirror, w/ Lane Departure Alert System | - | - |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 LANE RECOGNITION COVER | *4 | RAIN SENSOR COVER |
| *5 | ROOF HEADLINING ASSEMBLY | *6 | SEAT BELT ANCHOR COVER |
| *7 | SPOT LIGHT ASSEMBLY | *8 | NO. 2 LANE RECOGNITION COVER |
ILLUSTRATION
| *1 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *2 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *3 | FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH | *4 | FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH |
| *5 | REAR NO. 2 SIDE RAIL SPACER LH | *6 | REAR NO. 2 SIDE RAIL SPACER RH |
| *7 | REAR SIDE RAIL SPACER LH | *8 | REAR SIDE RAIL SPACER RH |
| *9 | CLIP | *10 | PIN |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | for Normal Roof | - | - |
| *1 | FRONT ROOF HEADLINING SIDE PAD | *2 | NO. 1 ROOF SILENCER PAD |
| *3 | NO. 1 ROOF WIRE | *4 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 2 ROOF SILENCER PAD | *6 | NO. 3 ROOF SILENCER PAD |
| *7 | NO. 4 ROOF SILENCER PAD | *8 | REAR ROOF SILENCER PAD |
| *9 | ROOF HEADLINING END PAD | *10 | ROOF HEADLINING PAD |
| *11 | VANITY LIGHT ASSEMBLY | - | - |
ILLUSTRATION
| *A | for Sliding Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR ROOF SILENCER PAD | *4 | ROOF HEADLINING END PAD |
| *5 | ROOF HEADLINING PAD | *6 | VANITY LIGHT ASSEMBLY |
ILLUSTRATION
| *A | for Glass Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *3 | ROOF HEADLINING END PAD | *4 | ROOF HEADLINING PAD |
| *5 | VANITY LIGHT ASSEMBLY | - | - |
