LOWER INSTRUMENT PANEL COMPONENTS
ILLUSTRATION

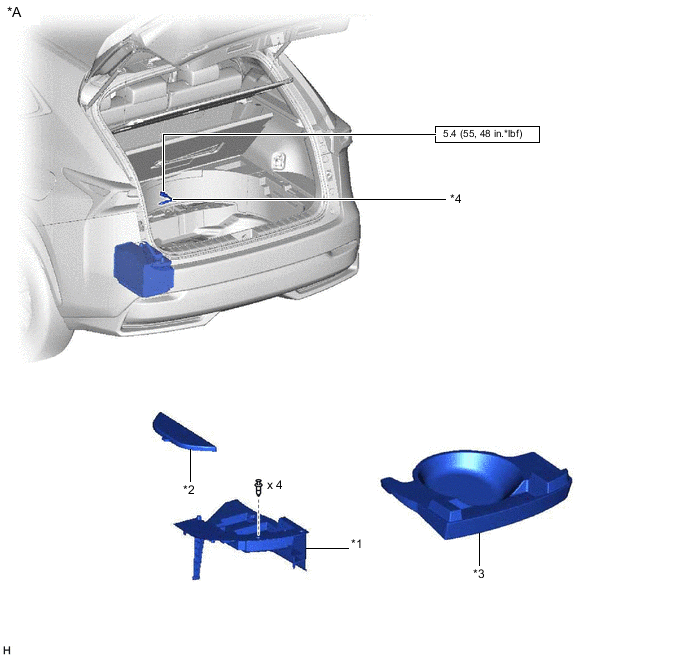

| *A | w/ Spare Tire | - | - |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

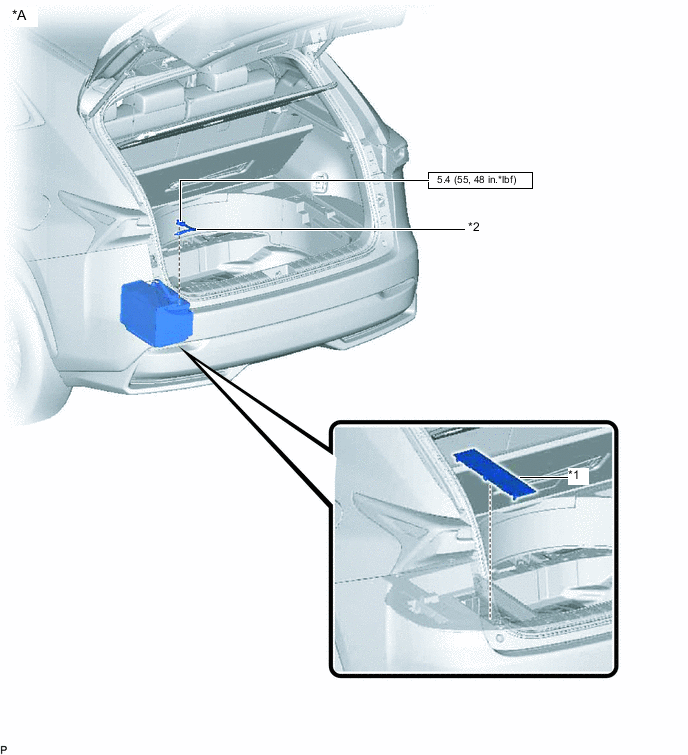

| *A | w/o Spare Tire | - | - |
| *1 | BATTERY SERVICE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

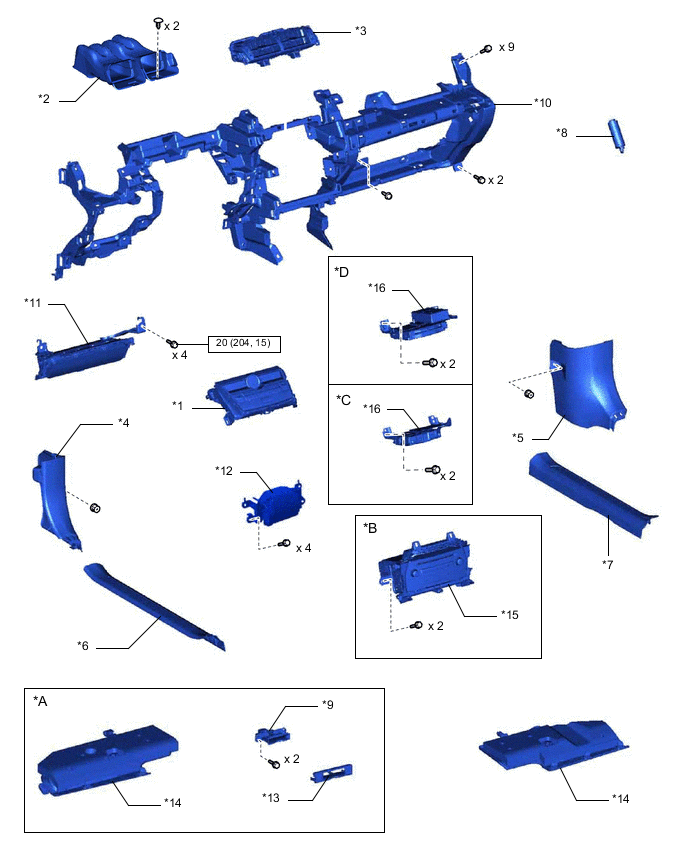

| *A | for RHD | *B | w/ Audio |
| *C | w/ Telematics Transceiver except G-BOOK | *D | w/ Telematics Transceiver for G-BOOK |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER HEATER TO REGISTER DUCT |
| *3 | CENTER INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | COWL SIDE TRIM BOARD LH |
| *5 | COWL SIDE TRIM BOARD RH | *6 | DOOR SCUFF PLATE ASSEMBLY LH |
| *7 | DOOR SCUFF PLATE ASSEMBLY RH | *8 | GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY |
| *9 | INSTRUMENT PANEL HOLE COVER | *10 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY |
| *11 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *12 | NO. 1 SPEAKER ASSEMBLY WITH BOX |
| *13 | NO. 2 INSTRUMENT PANEL HOLE COVER | *14 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *15 | RADIO RECEIVER ASSEMBLY WITH BRACKET | *16 | TELEMATICS TRANSCEIVER WITH BRACKET |
ILLUSTRATION
| *1 | GLOVE BOX LIGHT ASSEMBLY | *2 | GLOVE COMPARTMENT DOOR CHECK CUSHION |
ILLUSTRATION
| *1 | GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY | - | - |
