AIR CONDITIONING SYSTEM PARTS LOCATION

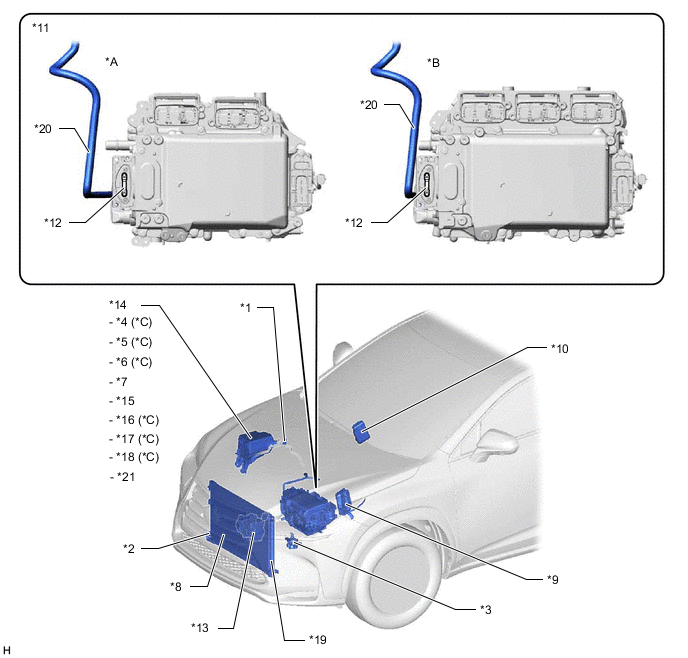

ILLUSTRATION
| *A | for 2WD | *B | for AWD |
| *C | w/ PTC Heater | - | - |
| *1 | - AIR CONDITIONER PRESSURE SENSOR AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
*2 | THERMISTOR ASSEMBLY (AMBIENT TEMPERATURE SENSOR) |
| *3 | HEATER ACCESSORY ASSEMBLY | *4 | PTC HTR NO.1 RELAY |
| *5 | PTC HTR NO.2 RELAY | *6 | PTC HTR NO.3 RELAY |
| *7 | A/C W/PMP RELAY | *8 | COOLER CONDENSER ASSEMBLY |
| *9 | ECM | *10 | POWER STEERING ECU ASSEMBLY |
| *11 | INVERTER WITH CONVERTER ASSEMBLY | *12 | HIGH VOLTAGE FUSE |
| *13 | COMPRESSOR WITH MOTOR ASSEMBLY | *14 | NO. 2 ENGINE ROOM RELAY BLOCK |
| *15 | HTR FUSE | *16 | PTC HTR NO.1 FUSE |
| *17 | PTC HTR NO.2 FUSE | *18 | PTC HTR NO.3 FUSE |
| *19 | COOLER DRYER | *20 | ENGINE WIRE |
| *21 | ECU-B NO.2 FUSE | - | - |

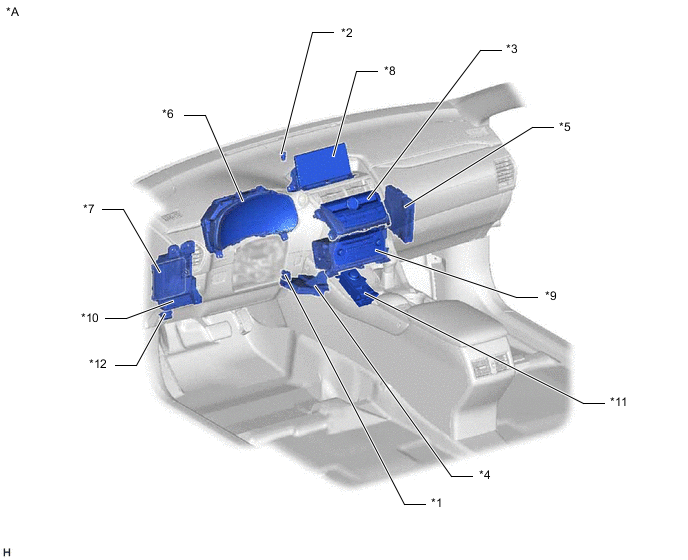

ILLUSTRATION
| *A | for LHD | *B | - |
| *1 | COOLER THERMISTOR (ROOM TEMPERATURE SENSOR) | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | AIR CONDITIONING CONTROL ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | COMBINATION METER ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | MULTI-DISPLAY ASSEMBLY |
| *9 | RADIO RECEIVER ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO.1 FUSE - ECU-IG NO.2 FUSE - ECU-IG NO.3 FUSE |
| *11 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *12 | DLC3 |

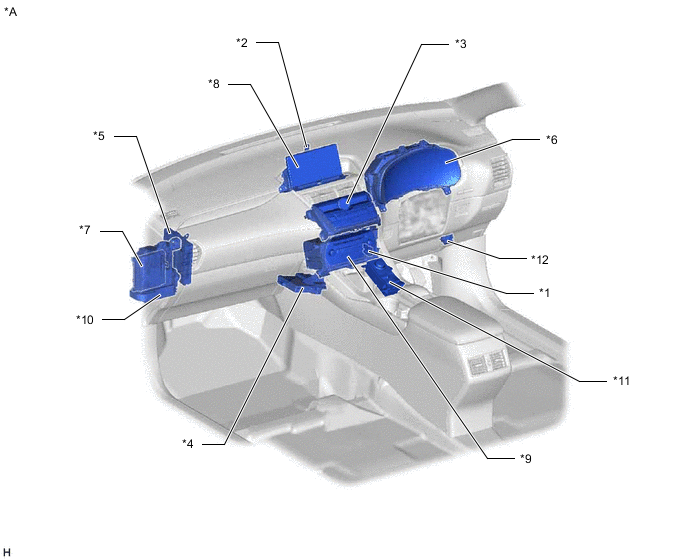

ILLUSTRATION
| *A | for RHD | ||
| *1 | COOLER THERMISTOR (ROOM TEMPERATURE SENSOR) | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | AIR CONDITIONING CONTROL ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | COMBINATION METER ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | MULTI-DISPLAY ASSEMBLY |
| *9 | RADIO RECEIVER ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO.1 FUSE - ECU-IG NO.2 FUSE - ECU-IG NO.3 FUSE |
| *11 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *12 | DLC3 |
ILLUSTRATION

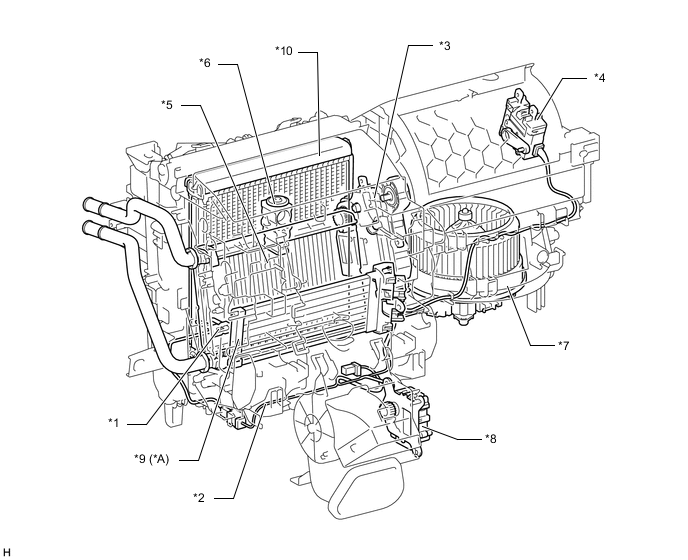

| *A | for LHD | *B | w/ PTC Heater |
| *1 | NO. 1 COOLER THERMISTOR (EVAPORATOR TEMPERATURE SENSOR) | *2 | AIR CONDITIONING HARNESS ASSEMBLY |
| *3 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *4 | NO. 1 BLOWER MODE DAMPER SERVO SUB-ASSEMBLY |
| *5 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | BLOWER WITH FAN MOTOR SUB-ASSEMBLY | *8 | NO. 2 AIR CONDITIONING RADIAOTR DAMPER SERVO SUB-ASSEMBLY |
| *9 | QUICK HEATER ASSEMBLY | *10 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
ILLUSTRATION

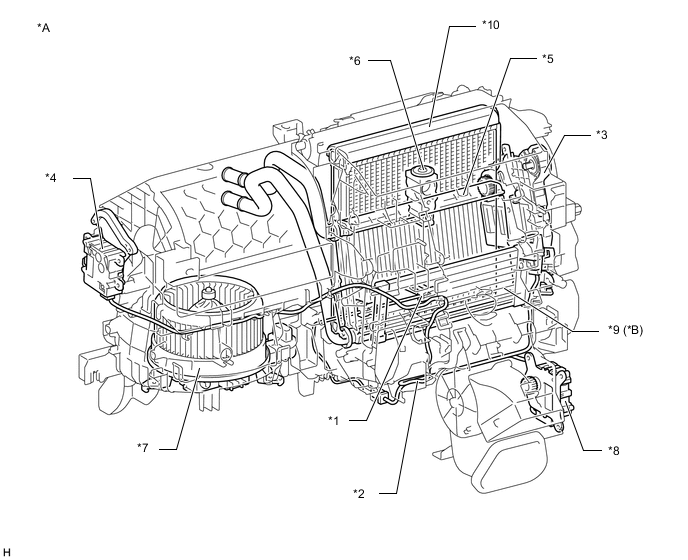

| *A | for RHD | *B | w/ PTC Heater |
| *1 | NO. 1 COOLER THERMISTOR (EVAPORATOR TEMPERATURE SENSOR) | *2 | AIR CONDITIONING HARNESS ASSEMBLY |
| *3 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *4 | NO. 1 BLOWER MODE DAMPER SERVO SUB-ASSEMBLY |
| *5 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | BLOWER WITH FAN MOTOR SUB-ASSEMBLY | *8 | NO. 2 AIR CONDITIONING RADIAOTR DAMPER SERVO SUB-ASSEMBLY |
| *9 | QUICK HEATER ASSEMBLY | *10 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
